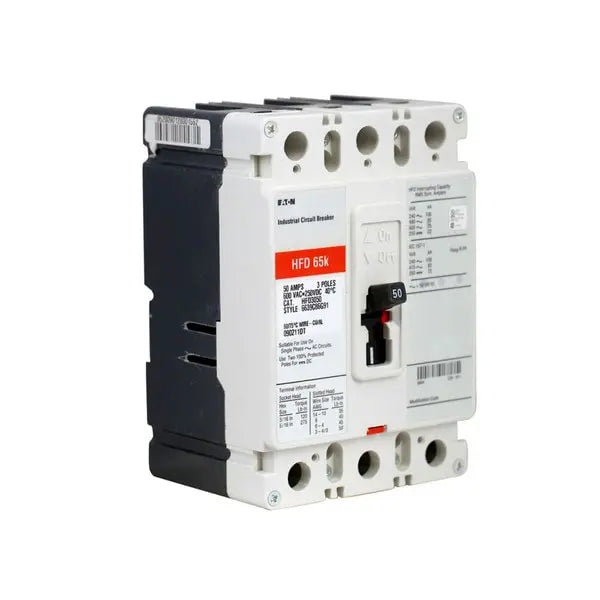

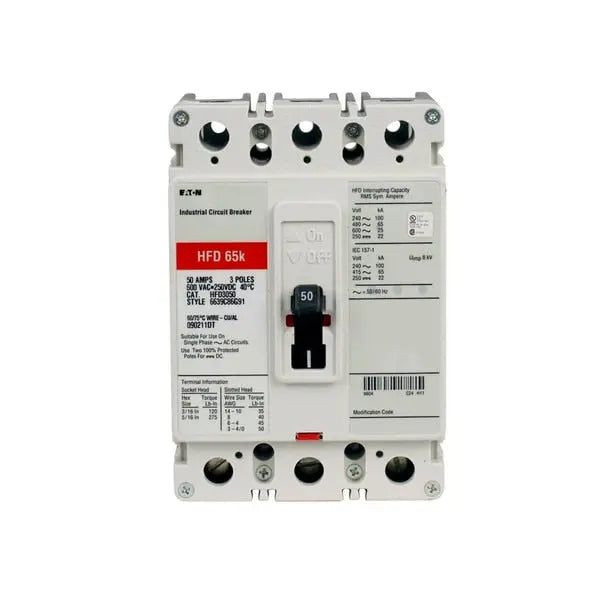

HFD3060 - Eaton Series C Complete Molded Case Circuit Breaker

The Eaton Series C HFD Molded Case Circuit Breaker provides reliable and efficient protection for electrical systems in commercial and industrial applications. This three-pole breaker, featuring an F-frame design, utilizes fixed thermal and fixed magnetic trip types for consistent overload and short circuit protection. Rated for 60A, it supports up to 600 Vac and 250 VDC, offering versatility for various AC and DC applications. Designed for load-side connections and compatible with 50/60 Hz systems, it delivers safe and efficient circuit management.

Key Features:

• Fixed thermal and magnetic trip types for reliable protection
• Three-pole configuration for comprehensive circuit control
• 60A rating supports up to 600 Vac and 250 VDC
• Load-side configuration for easy integration and installation
• Operates on 50/60 Hz electrical systems

This Eaton HFD breaker is an ideal solution for safeguarding critical circuits and ensuring reliable performance in demanding environments.

Documents:

Application notes
Application of Tap Rules to Molded Case Breaker Terminals

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Circuit Breakers Explained
