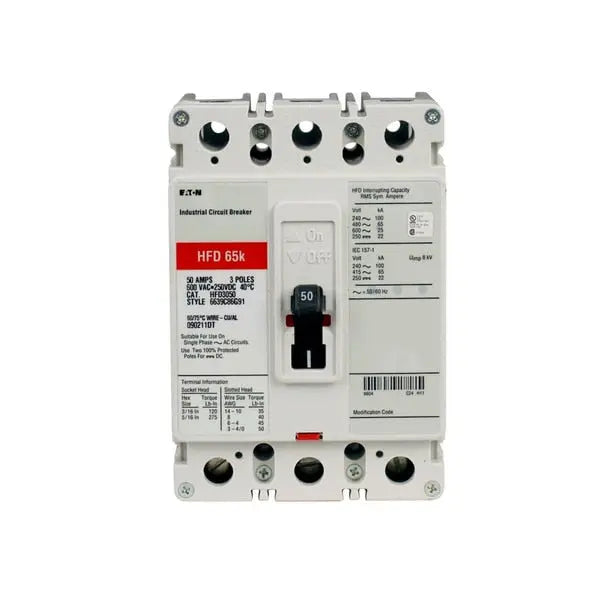

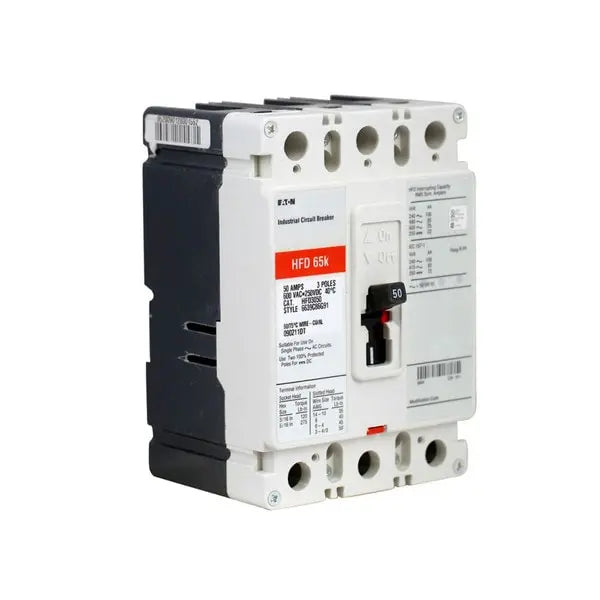

HFD3030 - Eaton Series C Complete Molded Case Circuit Breaker

The Eaton Series C HFD Molded Case Circuit Breaker is built for high-performance circuit protection in demanding industrial and commercial environments. Featuring a sturdy F-frame design, this three-pole breaker incorporates fixed thermal and magnetic trip types to ensure consistent protection against overloads and short circuits. With a 30A current rating, it accommodates high-voltage systems up to 600 Vac and 250 VDC. Designed for load-side connections and 50/60 Hz operation, it provides safe and efficient power management across various applications.

Key Features:

• Fixed thermal and magnetic trip types for dependable overcurrent protection
• Three-pole configuration for balanced load distribution
• 30A current rating supports 600 Vac and 250 VDC operations
• Load-side terminal design for easy integration
• Compatible with 50/60 Hz electrical systems

This Eaton HFD breaker ensures reliable circuit control and safety in high-demand electrical systems.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Circuit Breakers Explained
