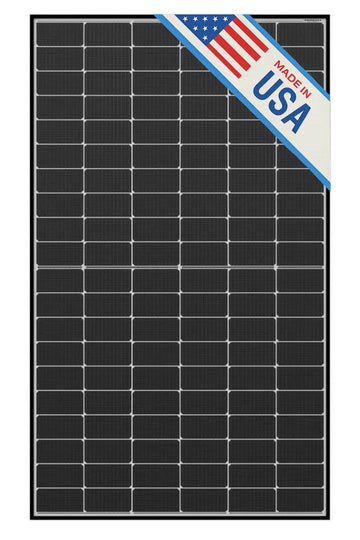

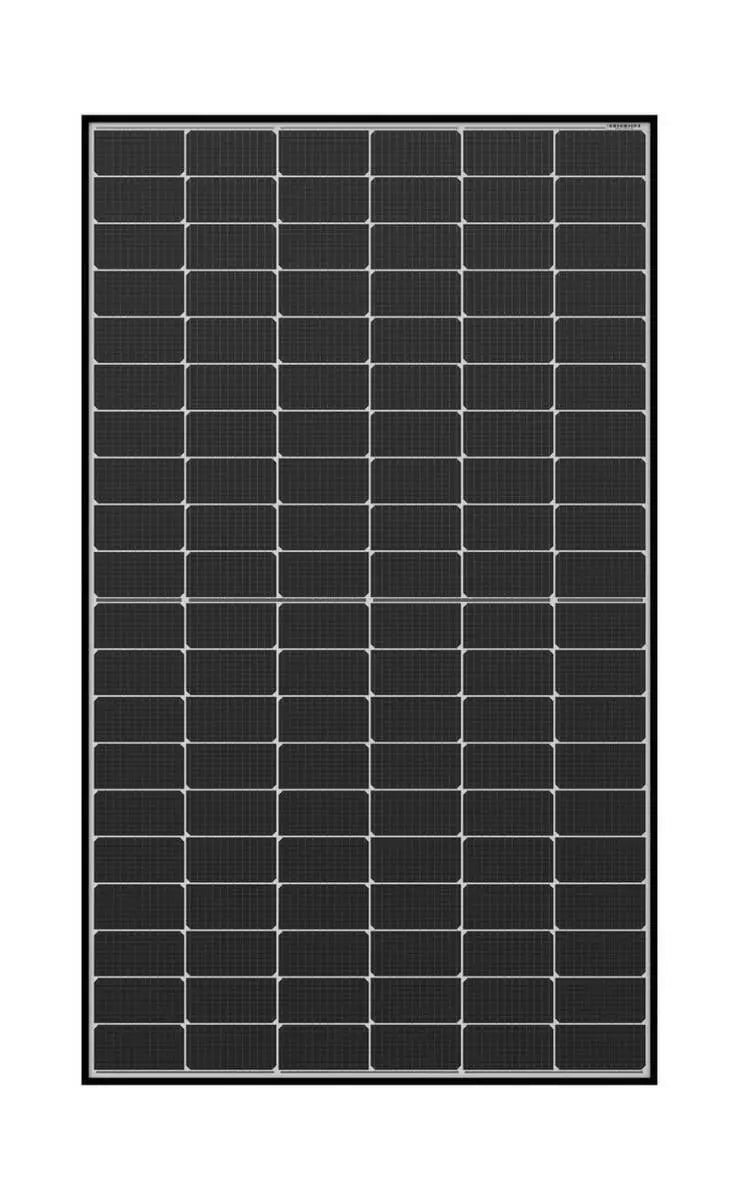

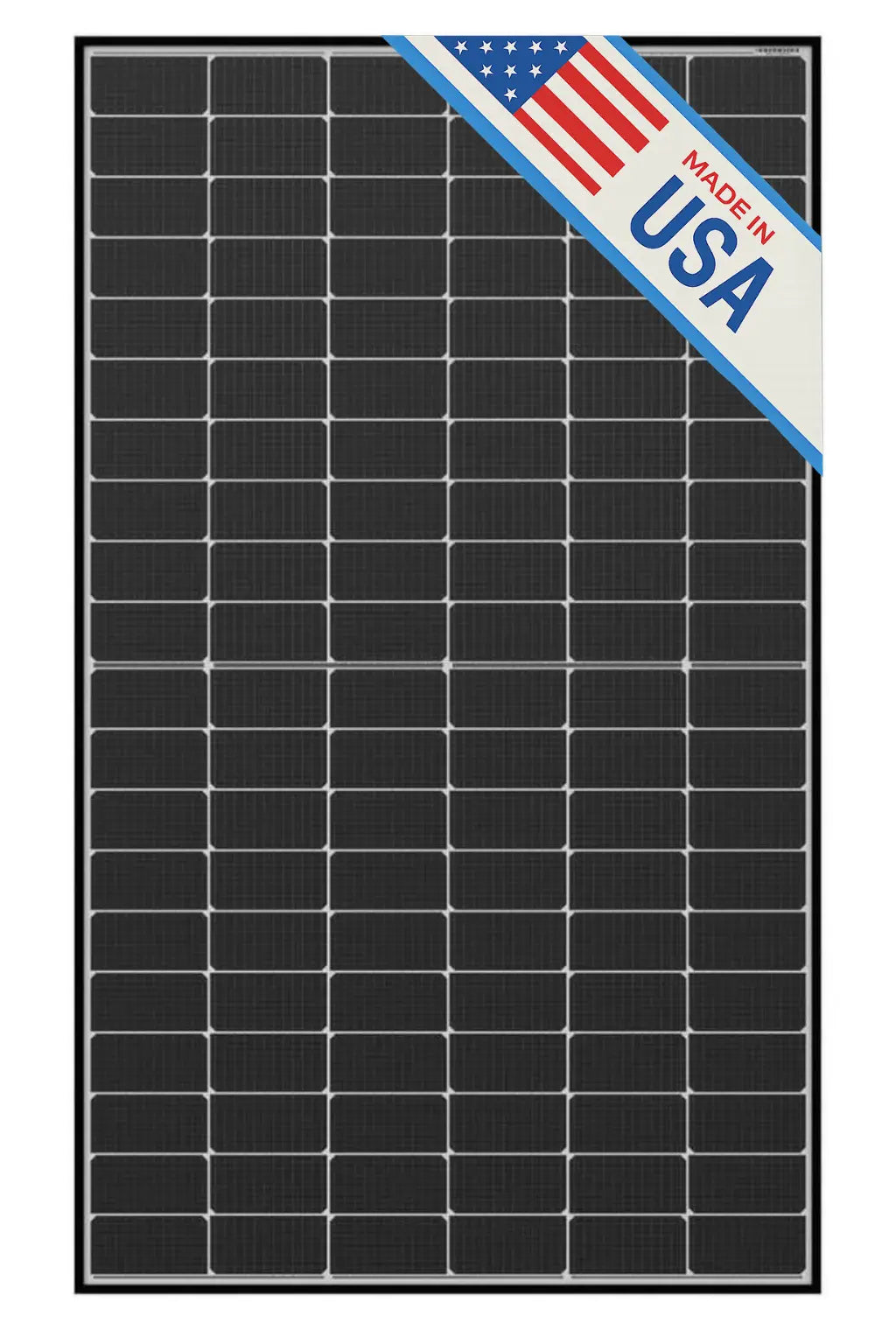

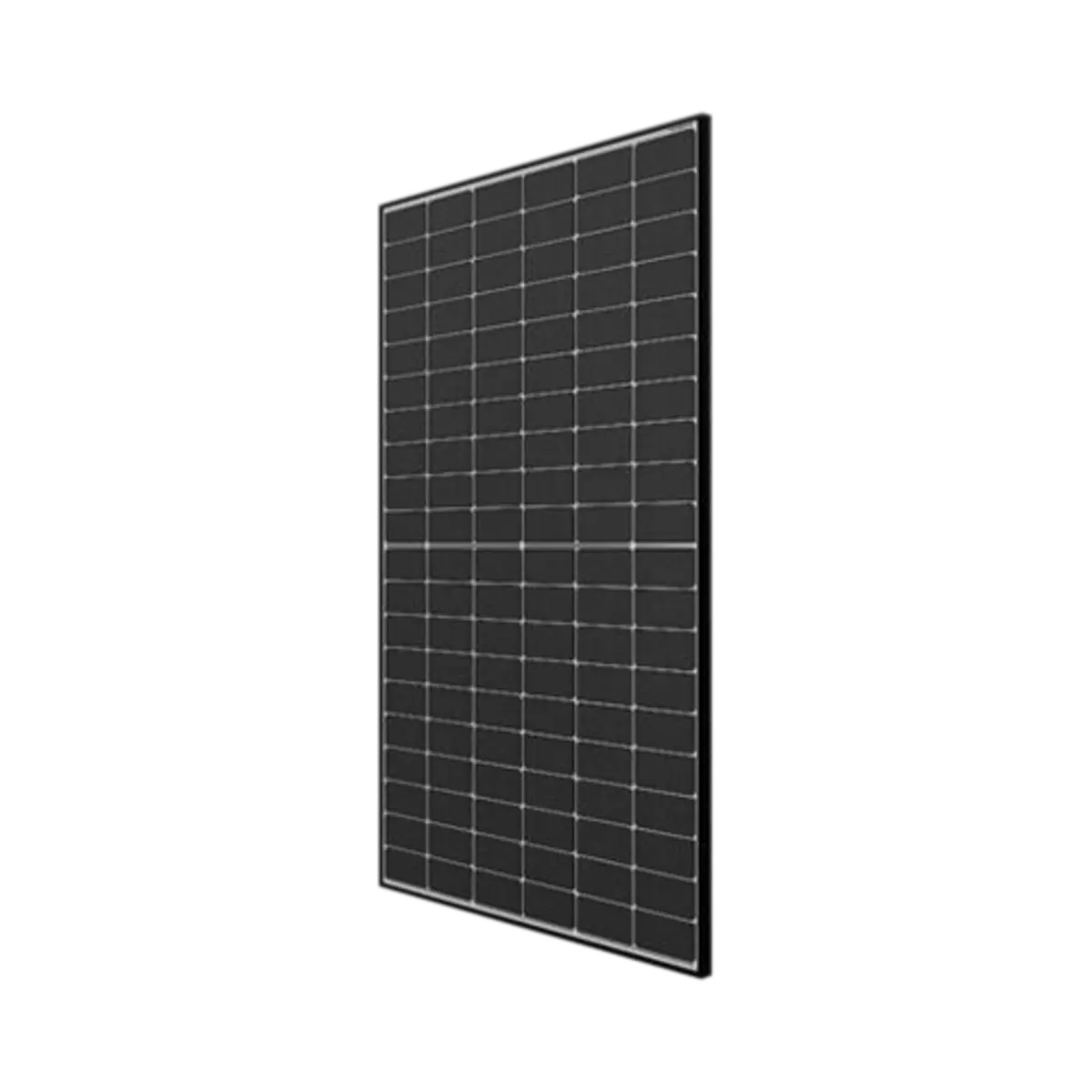

Hanwha Q Cells Q.PEAK DUO-G7 320 Watt Monocrystalline Solar Panel

Explore the Hanwha Q Cells Solar Panel: Q.PEAK DUO-G7 320 Watt

The Q.PEAK DUO-G7 is Hanwha QCells monocrystalline solar module with power classes of up to 335 Wp and an excellent efficiency of up to 20.2 %. Q.PEAK DUO-G7 solar modules provide excellent and reliable yields thanks to the new generation of the unrivalled Q.ANTUM DUO solar cell concept, which is now combined with state-of-the-art circuitry and 12-busbar cell design. The black Q.ANTUM DUO half-cells in the Q.PEAK DUO-G7 lend even the most exclusive building a refined look. Our Q CELLS yield security guarantees reliable electricity production over the entire life cycle of your solar installation. Thanks to integrated Q CELLS Anti LID Technology preventing light-induced degradation (LID), which can reduce system performance drastically - or almost totally - the Q.PEAK DUO-G7 eliminates slumps in yield. In contrast, conventional monocrystalline solar modules without Anti LID Technology lose much of their initial power through normal insolation. The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance, almost completely. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With Q.PEAK DUO-G7 this is not the case, thanks to Anti LID Technology.

Features

• Q. Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.2%
• Innovative All-Weather Technology- Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High Performance - Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC
• A Reliable Investment - Inclusive 12-year product warranty and best in class 25-year performance guarantee
• State of the Art Module Technology - Q. ANTUM DUO combines cutting edge cell separation and innovation wiring with Q.ANTUM technology

Specifications

• Series/Model: Q.Peak DUO
• Dimensions: 1685 mm (L) x 1000 mm (W) x 32 mm (H)
• Cells Technology: Monocrystalline Q.Antum Solar Half
• Number of Half Cells: 120 (6 x 20)
• Maximum Power (Pmax): 320 W STC / 239.6 W NOCT / 292.2 W PTC
• Maximum Power Voltage (Vmp): 33.47 V STC / 31.85 V NOCT
• Maximum Power Current (Imp): 9.56 A STC / 7.52 A NOCT
• Open-Circuit Voltage (VOC): 40.1 V STC / 37.81 V NOCT
• Short-Circuit Current (Isc): 10.04 A STC / 8.09 A NOCT
• Maximum System Voltage: 1000 V (IEC) / 1000 V (UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: ≥ 19%
• Frame Material: Anodized Aluminum
• Frame Color: Black
• Backsheet Color: White
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm² Solar Cable, (+) ≥ 43.3 in (1100 mm), (-) ≥ 43.3 in (1100 mm)
• Connector Type: Staubli MC4, Hanwha Q CELLS HQC4, Amphenol UTX, Renhe 05-6, Tongling TL-Cable01S, JMTHY JM601, IP68 or Friends PV2e, IP67
• Fire Type: Class C (IEC) / Type 2 (UL)
• Maximum Design Load (Push/Pull): 3600/2667 Pa
• Maximum Test Load (Push/Pull): 5400/4000 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C ± 2% STC
• Temperature Coefficients of Pmax: -0.35%/°K
• Temperature Coefficients of VOC: -0.27%/°K
• Temperature Coefficients of Isc: 0.04%/°K
• Nominal Operating Cell Temperature: 43 ± 3°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
• Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: Composite Film
• Standards: UL 1703, VDE Quality Tested, IEC 61215:2016, IEC 61730:2016, Application Class II, DVE, CE, CSA/Cus
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 18.7 kg
• Application: Rooftop Arrays on Residential, Commercial/Industrial Buildings


Documents: Specification Sheet

High Efficiency and Innovative Design

The Hanwha Q Cells solar panel boasts cutting-edge monocrystalline technology that delivers top-tier efficiency, optimizing solar energy conversion for maximum power output. The Q.PEAK DUO-G7 320 Watt panel integrates Q.ANTUM DUO technology, which reduces electrical loss and enhances energy yield. This innovative design allows for superior performance even in low-light and partial shading conditions, making it ideal for residential and commercial solar setups. With its sleek, durable frame and advanced cell structure, this panel is engineered to provide reliable, long-term solar power generation.

Durability and Robust Build Quality

Built to withstand harsh environmental conditions, the Hanwha Q Cells solar panel features a sturdy aluminum frame and toughened glass to protect against weather extremes like heavy snow, strong wind, and hail. The corrosion-resistant materials ensure longevity and consistent performance over time. Additionally, this panel undergoes rigorous testing to meet international quality standards, guaranteeing resilience and reliability. Its robust build makes it a trustworthy choice for both rooftop and ground-mounted solar installations, ensuring stable electricity generation year after year.

Eco-Friendly and Cost-Effective Energy Solution

This Hanwha Q Cells solar panel offers a sustainable and economical energy solution that reduces carbon footprints and lowers electricity bills. By converting sunlight into clean, renewable energy efficiently, the Q.PEAK DUO-G7 320 Watt helps users cut dependence on fossil fuels. Its reliable performance increases return on investment, supporting long-term savings. Furthermore, Hanwha’s commitment to environmental responsibility underscores the panel’s role in promoting green energy adoption, making this solar panel an excellent choice for eco-conscious consumers seeking both performance and sustainability.
