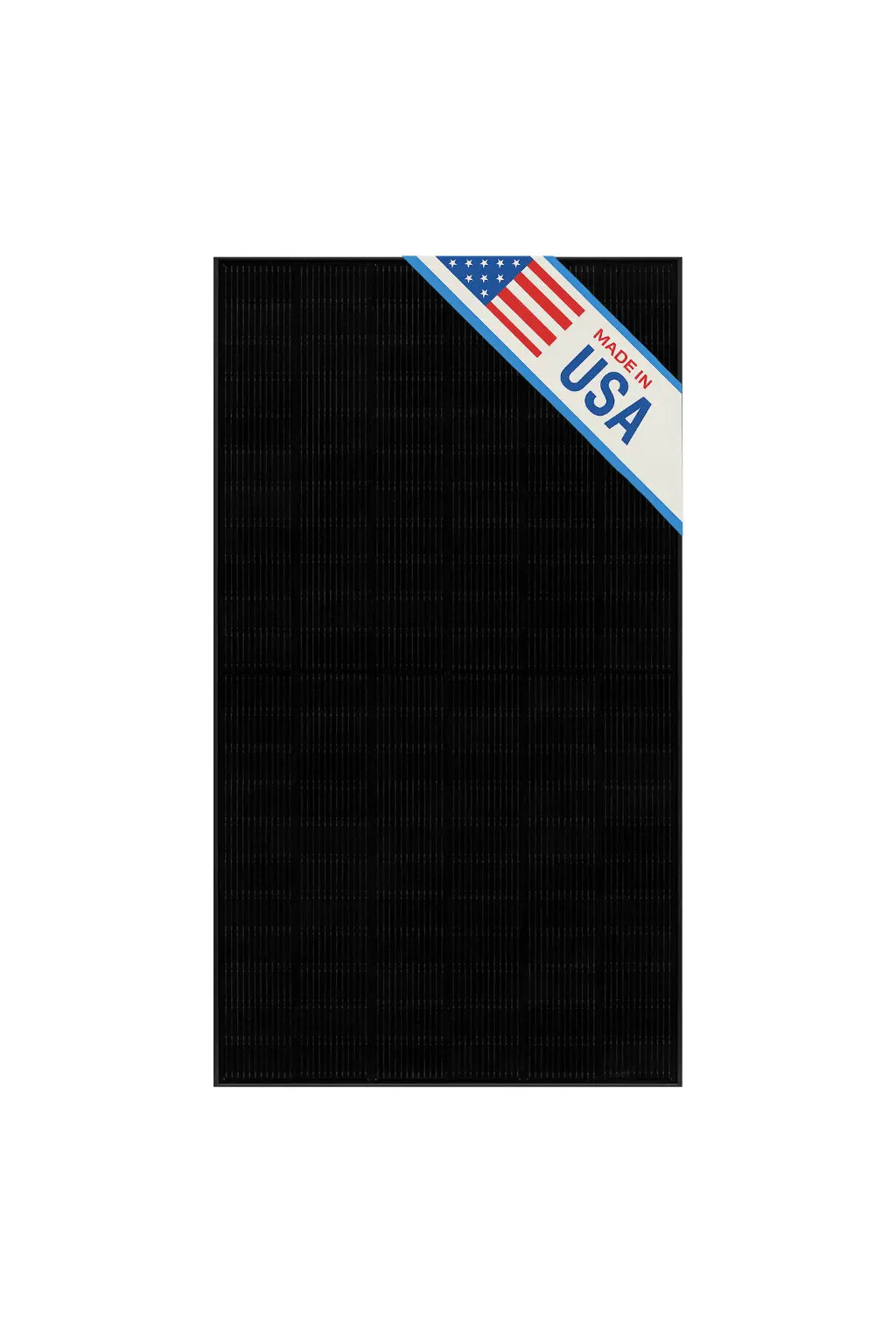

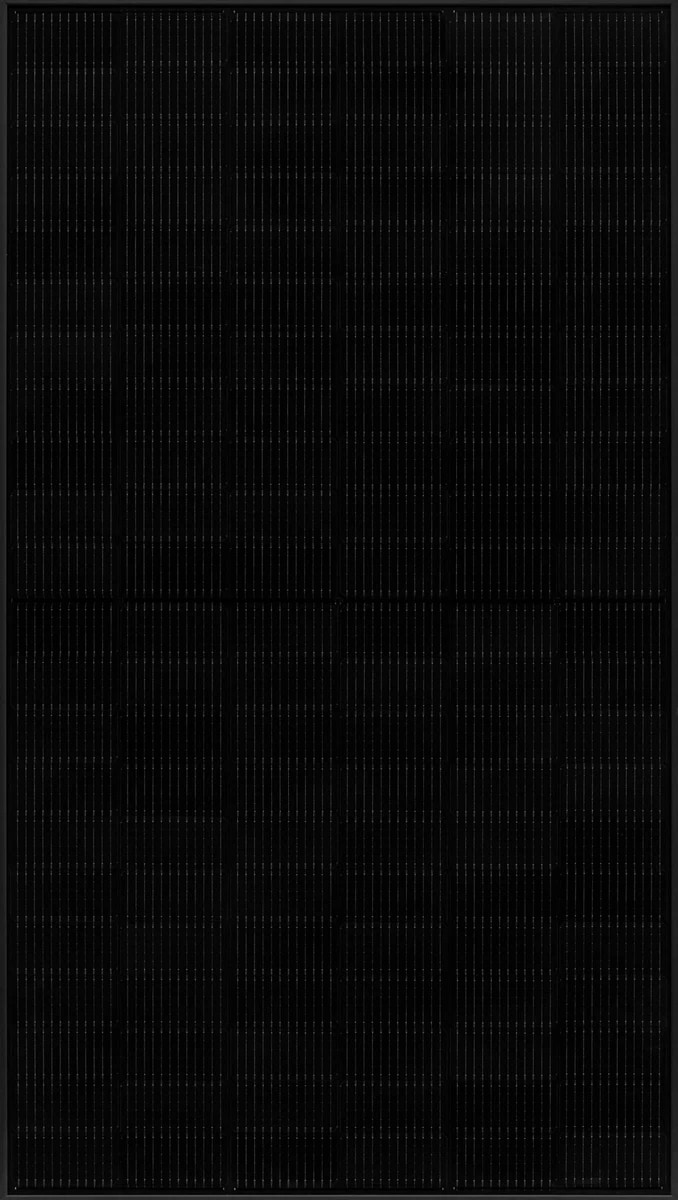

Hanwha Q Cells Q.PEAK DUO BLK ML G10+ 405W Mono Solar Panel

With a higher efficiency rate than previous series, the Q.PEAK DUO BLK ML-G10+ is the first 400W module for the residential market and takes high performance to a new level. The G10+ module utilizes Q CELLS' zero gap Q.ANTUM DUO Z technology to boost module efficiency up to 21.1%. The module is also backed by a 25-year product and performance warranty that guarantees at least 86% of nominal power up to 25 years.

Features

• Breaking the 20 % efficiency barrier: Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.1 %
• Innovative all-weather technology: Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Extreme weather rating: High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• The most thorough testing programme in the industry: Q CELLS is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new "Quality Controlled PV" of the independent certification institute T.V Rheinland
• Enduring high performance: Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• A reliable investment: Inclusive 25-year product warranty and 25-year linear performance warranty

Specifications

• Series/Model: Q.Peak DUO
• Length: 1879 mm
• Width: 1045 mm
• Height: 32 mm
• Cells Technology: Monocrystalline Q.Antum Solar Half
• Number of Half Cells: 132 (6 x 22)
• Maximum Power (Pmax): 405 W STC / 303.9 W NOCT
• Maximum Power Voltage (Vmp): 38.22 V STC / 36.39 V NOCT
• Maximum Power Current (Imp): 10.6 A STC / 8.35 A NOCT
• Open-Circuit Voltage (VOC): 45.27 V STC / 42.69 V NOCT
• Short-Circuit Current (Isc): 11.08 A STC / 8.93 A NOCT
• Maximum System Voltage: 1000 V (IEC) / 1000 V (UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: ≥20.6%
• Frame Material: Anodized Aluminum
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm² Solar Cable, (+) ≥72.04 in (1830 mm), (-) ≥72.04 in (1830 mm)
• Connector Type: Staubli MC4, IP68
• Fire Type: Type 2
• Maximum Design Load (Push/Pull): 3600/2660 Pa
• Maximum Test Load (Push/Pull): 5400/4000 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C ±2% STC
• Temperature Coefficients of Pmax: -0.34%/°K
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.27%/°K
• Temperature Coefficients of Isc: 0.04%/°K
• Nominal Operating Cell Temperature: 43 ±3°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
• Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: Composite Film
• Standards: UL61730-1 & UL61730-2, CE-Compliant, Quality Controlled PV - TÜV Rheinland, IEC 61215:2016, IEC 61730:2016, U.S. Patent No. 9,893,215 (Solar Cells), DVE, Cus, CE, TUV, Class II
• Warranty: 25 Years Product, 25 Years Linear Performance
• Weight: 22 kg
• Application: Rooftop Arrays on Residential Buildings
