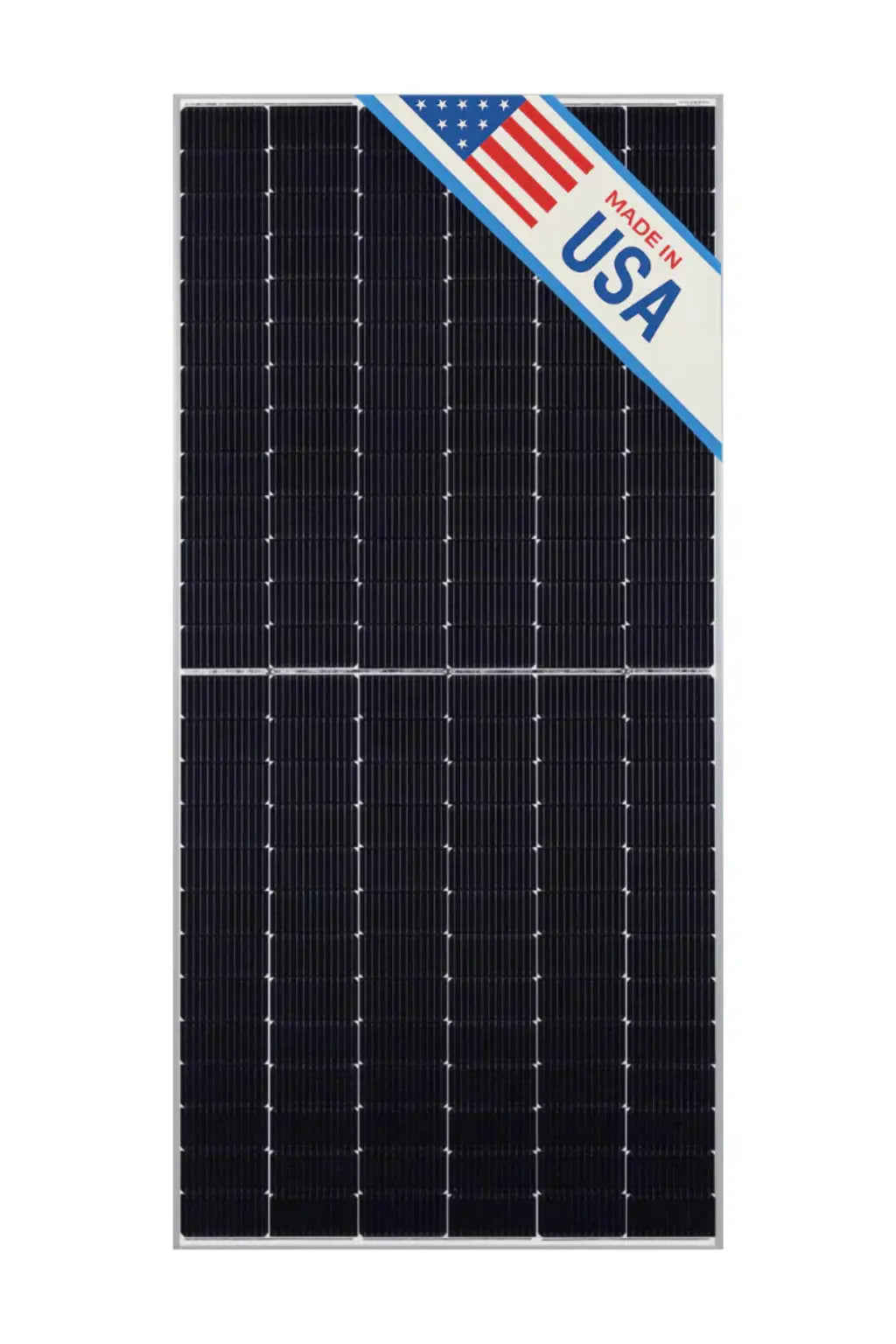

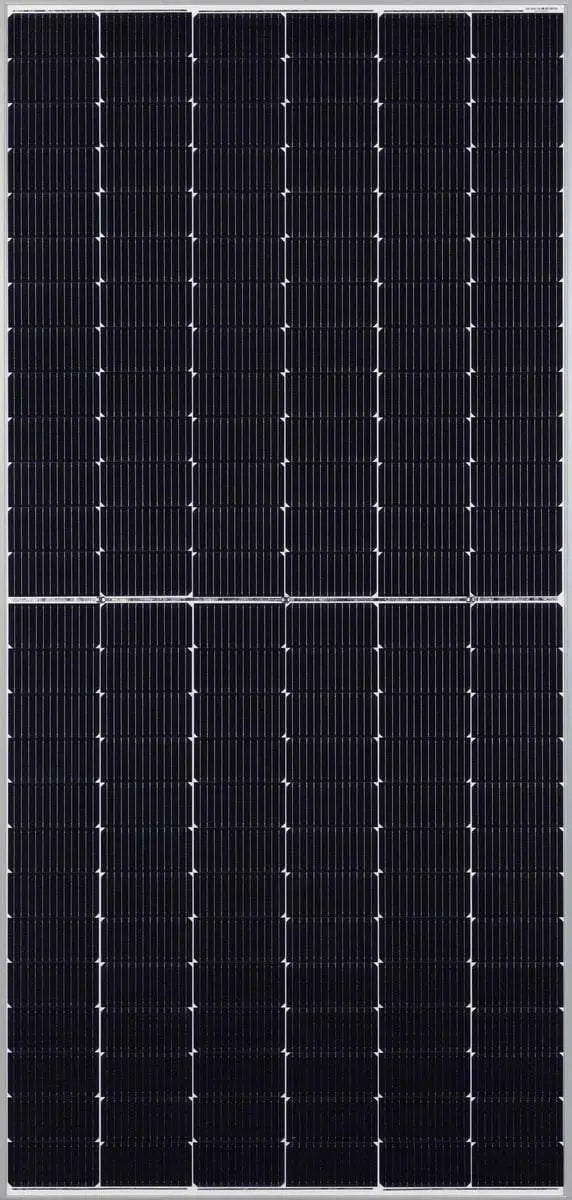

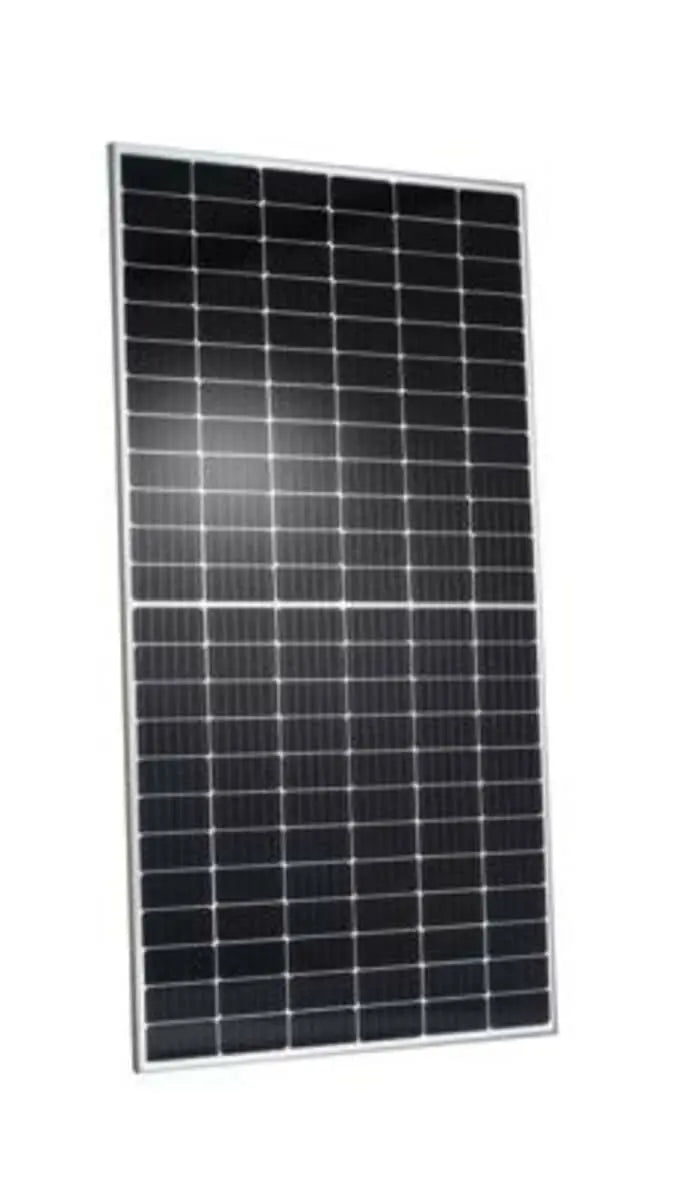

Hanwha Q Cells America 485 W Monocrystalline Bifacial Double Glass Monocrystalline Solar Panel

Hanwha Q Cells: Leading the Solar Panel Innovation

The high-performance module Q.PEAK DUO XL-G10/BFG is the ideal solution for commercial and utility applications thanks to a combination of its innovative Q.ANTUM DUO-Z technology and cutting-edge cell interconnection. This 1500 V UL/IEC solar module ensures superior yields with up to 490Wp while having a very low LCOE.

Features

• Bifacial energy yield gain of up to 20%: Bifacial Q.ANTUM solar cells make efficient use of light shining on the module rear-side for radically improved LCOE
• Low electricity generation costs: Q.ANTUM DUO Z combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology for higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 21.2 %
• A reliable investment: Double glass module design enables extended lifetime with 12-year product warranty and improved 30-year performance warranty
• Enduring high performance: Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• Frame for versatile mounting options: High-tech aluminum alloy frame protects from damage, enables use of a wide range of mounting structures and is certified regarding IEC for high snow (5400 Pa) and wind loads (3000 Pa)
• Innovative all-weather technology: Optimal yields, whatever the weather with excellent low-light and temperature behavior


Specifications

• Series/Model: Q.Peak DUO
• Dimensions: 2216 mm (L) x 1045 mm (W) x 35 mm (H)
• Cells Technology: Monocrystalline Q.Antum Solar Half
• Number of Half Cells: 156 (6 x 26)
• Maximum Power (Pmax): 485 W STC / 365.1 W NOCT / 530.5 W BSTC
• Maximum Power Voltage (Vmp): 45.63 V STC / 43.63 V NOCT / 45.62 V BSTC
• Maximum Power Current (Imp): 10.63 A STC / 8.37 A NOCT / 11.63 A BSTC
• Open-Circuit Voltage (VOC): 53.63 V STC / 50.72 V NOCT / 53.82 V BSTC
• Short-Circuit Current (Isc): 11.16 A STC / 8.99 A NOCT / 12.21 A BSTC
• Maximum System Voltage: 1500 V
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: ≥ 20.9%
• Frame Material: Anodized Aluminum
• Frame Color: Silver
• Backsheet Color: White
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm² Solar Cable, (+) ≥ 55.1 in (1400 mm), (-) ≥ 55.1 in (1400 mm)
• Connector Type: Staubli MC4, Staubli MC4-Evo2, Hanwha Q CELLS HQC4, IP68
• Fire Type: Type 29
• Maximum Design Load (Push/Pull): 3600/1600 Pa
• Maximum Test Load (Push/Pull): 5400/2400 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C ± 2% STC
• Temperature Coefficients of Pmax: -0.34%/°K
• Temperature Coefficients of VOC: -0.27%/°K
• Temperature Coefficients of Isc: 0.04%/°K
• Nominal Operating Cell Temperature: 43 ± 3°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
• Power Output Tolerance: +5 W / -0 W
• Front Cover: 0.08 in (2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: 0.08 in (2 mm) Semi-Tempered Glass
• Standards: Quality Controlled PV-TÜV Rheinland, UL 61730, CE-Compliant, IEC 61215:2016, IEC 61730:2016, U.S. Patent No. 9,893,215 (Solar Cells), CSA Cus, CE, TUV, Class II
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 29.1 kg
• Application: Ground Mounted Solar Panels


Efficiency and Performance

The Hanwha Q Cells America 485 W Monocrystalline Bifacial Double Glass Solar Panel is designed for maximum energy generation. With an efficiency rate that stands out in the market, this solar panel ensures that you harness more sunlight, converting it into usable energy. This efficiency is essential, especially for homeowners and businesses aiming to lower their electricity bills and reduce environmental impact. Because of its high performance, this solar panel can be an excellent investment for sustainable energy solutions.

Bifacial Technology Advantage

One of the standout features of the Hanwha Q Cells solar panel is its bifacial design. This technology allows the panel to capture sunlight from both sides, enhancing energy absorption and output. It's particularly beneficial in locations with reflective surfaces like sand or snow, which can increase the overall efficiency. Thus, this solar panel is not only innovative but also adaptable, making it an ideal choice for various environmental conditions.

Durability and Reliability

Additionally, the double glass construction of Hanwha Q Cells panels provides exceptional durability and reliability. This design protects against harsh weather conditions, ensuring that your investment lasts for years. It's crucial to have a solar solution that can withstand wind, hail, and extreme temperatures, and this solar panel excels in those areas. So, you can have peace of mind knowing that your energy system is built to last.

Document: Specification Sheet
