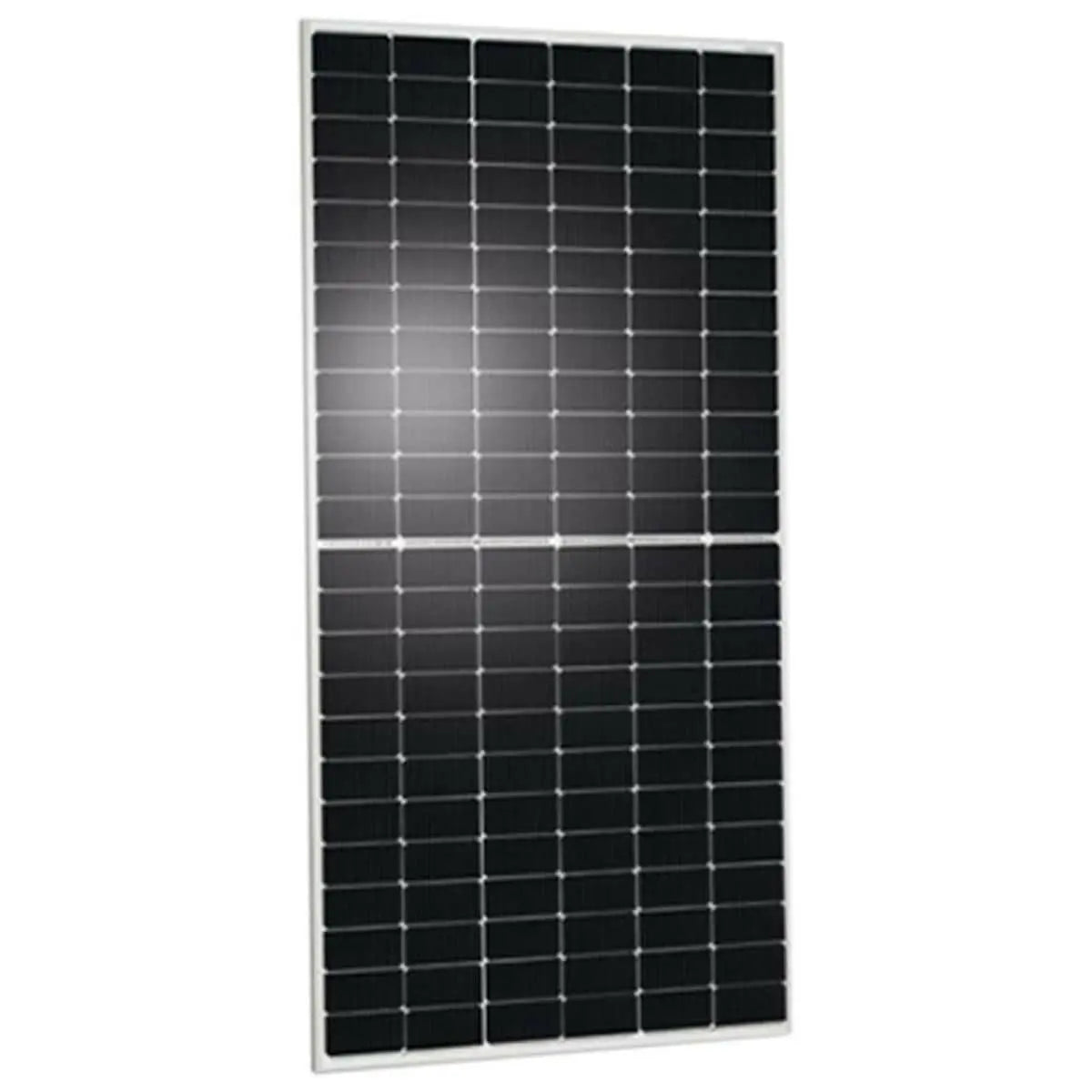

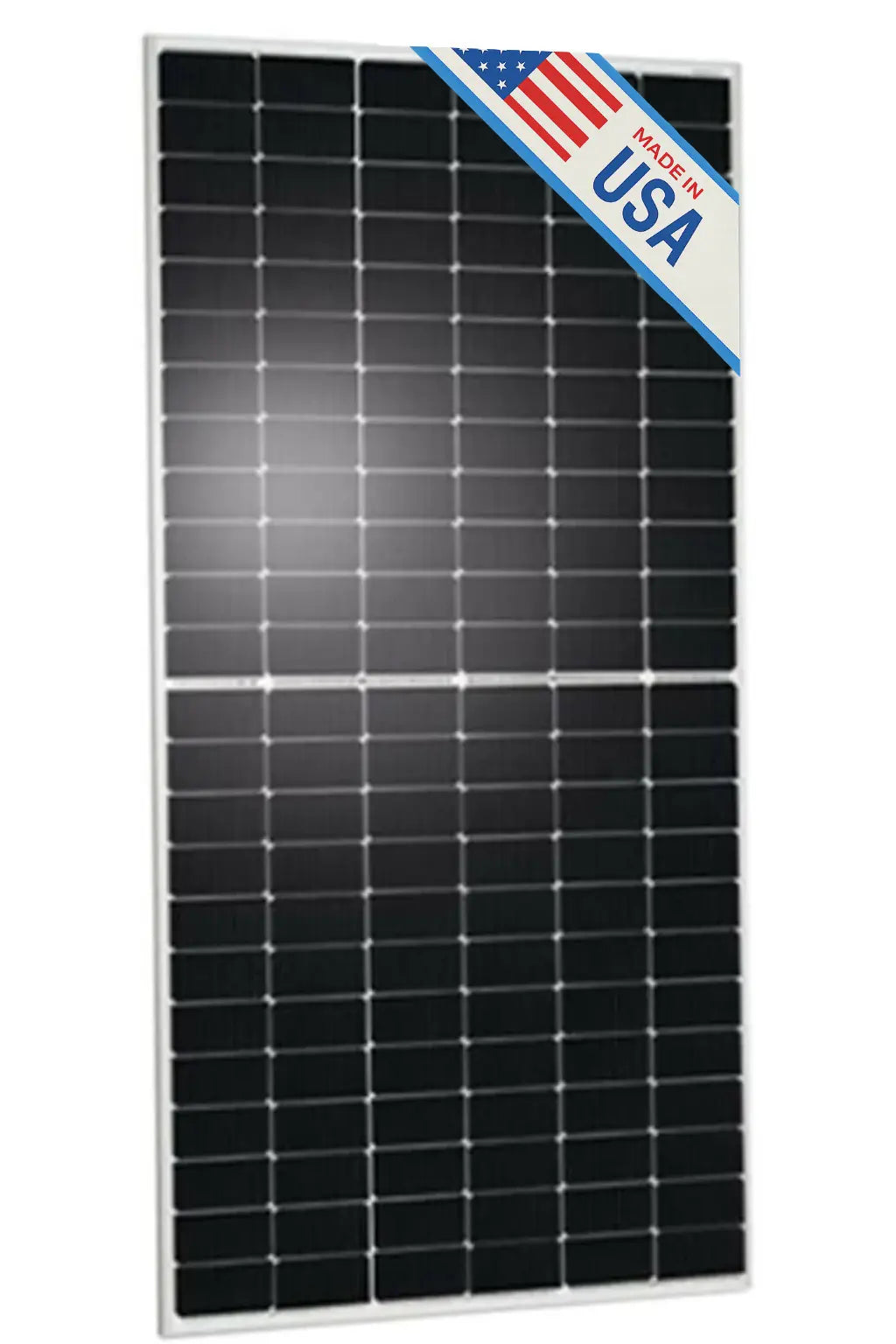

Hanwha Q Cells Q.PEAK DUO L-G6 415 415w Mono Solar Panel

Discover the Efficiency of Hanwha Q Cells Solar Panels

Hanwha Q Cells America Q.PEAK DUO L-G7.3 420 415 W Monocrystalline Q.Antum solar half solar panel.

Features

• Q.Antum Technology Low Levelised Cost Of Electricity: Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.3%.
• Innovative All-Weather Technology: Optimal yields, whatever the weather with excellent low-light and temperature behaviour
• Enduring High Performance: Long-term yield security with Anti LID Technology, Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating: High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (2400Pa)
• A Reliable Investment: Inclusive 12-year product warranty and 25-year linear performance warranty
• State Of The Art Module Technology: Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM Technology
•


Specifications

• Here are the specifications for the Solar Panel:

  • Dimensions: 81.9 in (L) x 40.6 in (W) x 1.38 in (D)
  • Material: Anodized Aluminum Frame, Composite Film Back Cover
  • Color: Black Cell, White Frame/Backsheet
  • Power Voltage: 41.08 V
  • Power Current: 10.22 A
  • Power Rating: 415 W
  • Open Circuit Voltage: 48.84 V
  • Short Circuit Current: 10.74 A
  • Voltage Rating: 1500 V
  • Cell Type: Monocrystalline Q.Antum Solar Half
  • Number of Cells: 144 (6 x 24)
  • Operating Temperature: 109°F
  • Efficiency: 19.6%
  • Connection Type: Staubli MC4-Evo2, Hanwha Q CELLS HQC4, Amphenol UTX, Renhe 05-8, JMTHY JM601A, Tongling Cable01S-F, IP68 or Friends PV2e, IP67
  • Enclosure Rating/IP Rating: IP67
  • Warranty: 25 Years
  • Weight: 55.1 lb
  • Standards: DVE, CE, CSA

Advanced Monocrystalline Technology

Hanwha Q Cells America 415 W Monocrystalline Q.Antum Solar Panels utilize advanced monocrystalline technology. These panels are designed for maximum efficiency, delivering reliable energy output even in low sunlight conditions. The Q.Antum technology enables these panels to achieve higher efficiency rates compared to traditional solar panels, making them a favorable choice for homeowners looking to maximize their solar investments.

Durability and Longevity

One of the key features of the Hanwha Q Cells panels is their durability. Constructed with high-quality materials, they are built to withstand extreme weather conditions. They come with a robust warranty, ensuring they last for decades. This durability translates to long-term savings, as homeowners can enjoy consistent energy production without frequent replacements.

Easy Installation and Integration

The design of the Hanwha Q Cells panels allows for easy installation. Their lightweight structure means fewer roof reinforcements are needed, which simplifies the setup process. Additionally, these panels can be seamlessly integrated into existing solar systems, so homeowners can upgrade their setups without a hassle. This flexibility makes them an ideal option for those transitioning to renewable energy.

Documents: Specification Sheet
