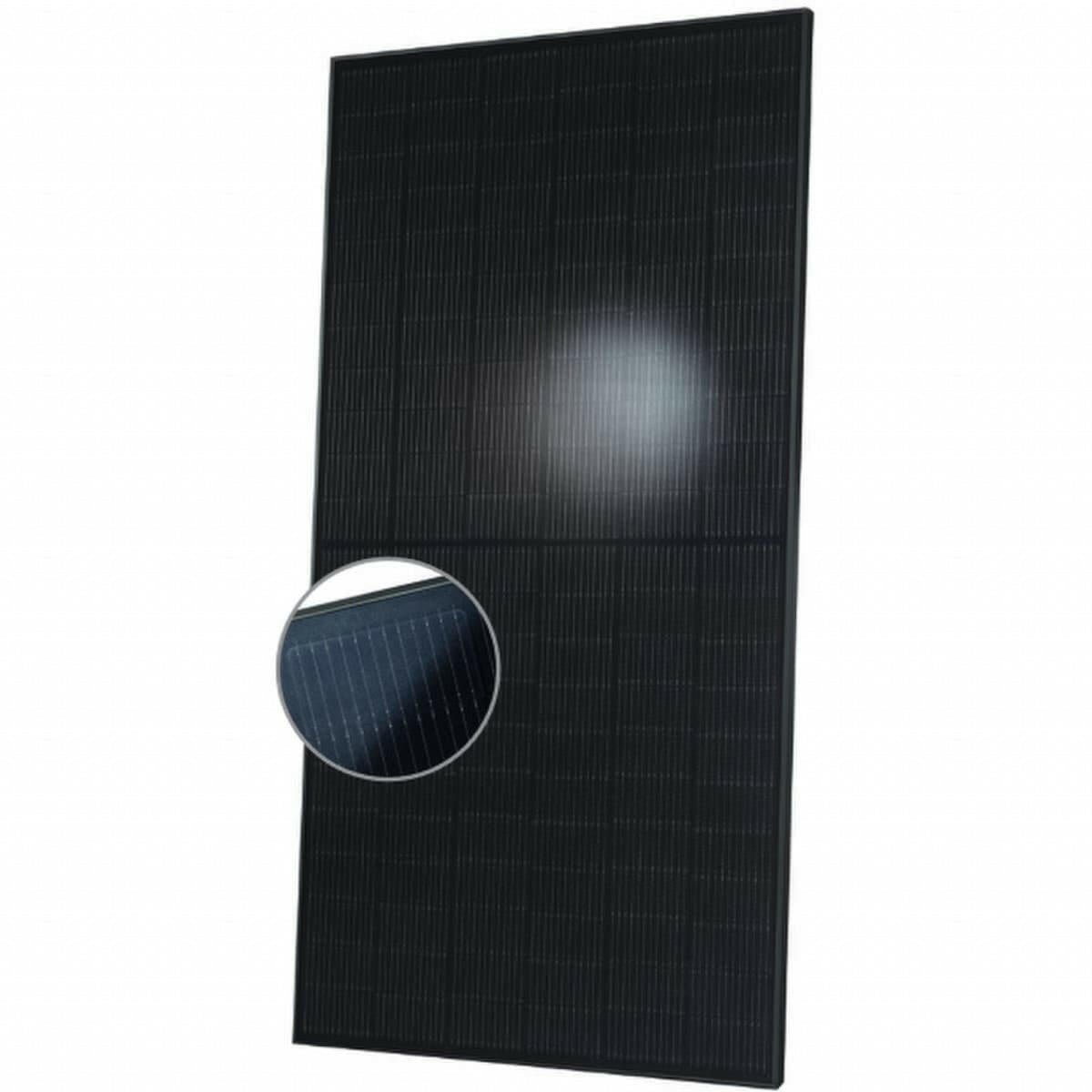

Hanwha Q Cells America 405 W Monocrystalline Q.Antum Solar Half Solar Panel

Hanwha Q Cells America Q.PEAK DUO BLK ML G10+ 405 405 W Monocrystalline Q.Antum solar half solar panel.

Features

• Breaking the 20% efficiency barrier: Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 20.6%
• A Reliable Investment: Inclusive 12-year product warranty and 25-year linear performance warranty
• Enduring High Performance: Long-term yield security with Anti LID Technology, Anti PID Technology1, Hot-Spot Protect
• Extreme Weather Rating: High-tech aluminum alloy frame, certified for high snow (5400Pa) and wind loads (4000Pa)
• Innovative all-weather technology: Optimal yields, whatever the weather with excellent low-light and temperature behaviour
• The most thorough testing programme in the industry: Qcells is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new "Quality Controlled PV" of the independent certification institute TÜV Rheinland
• MC4 connectors

Specifications

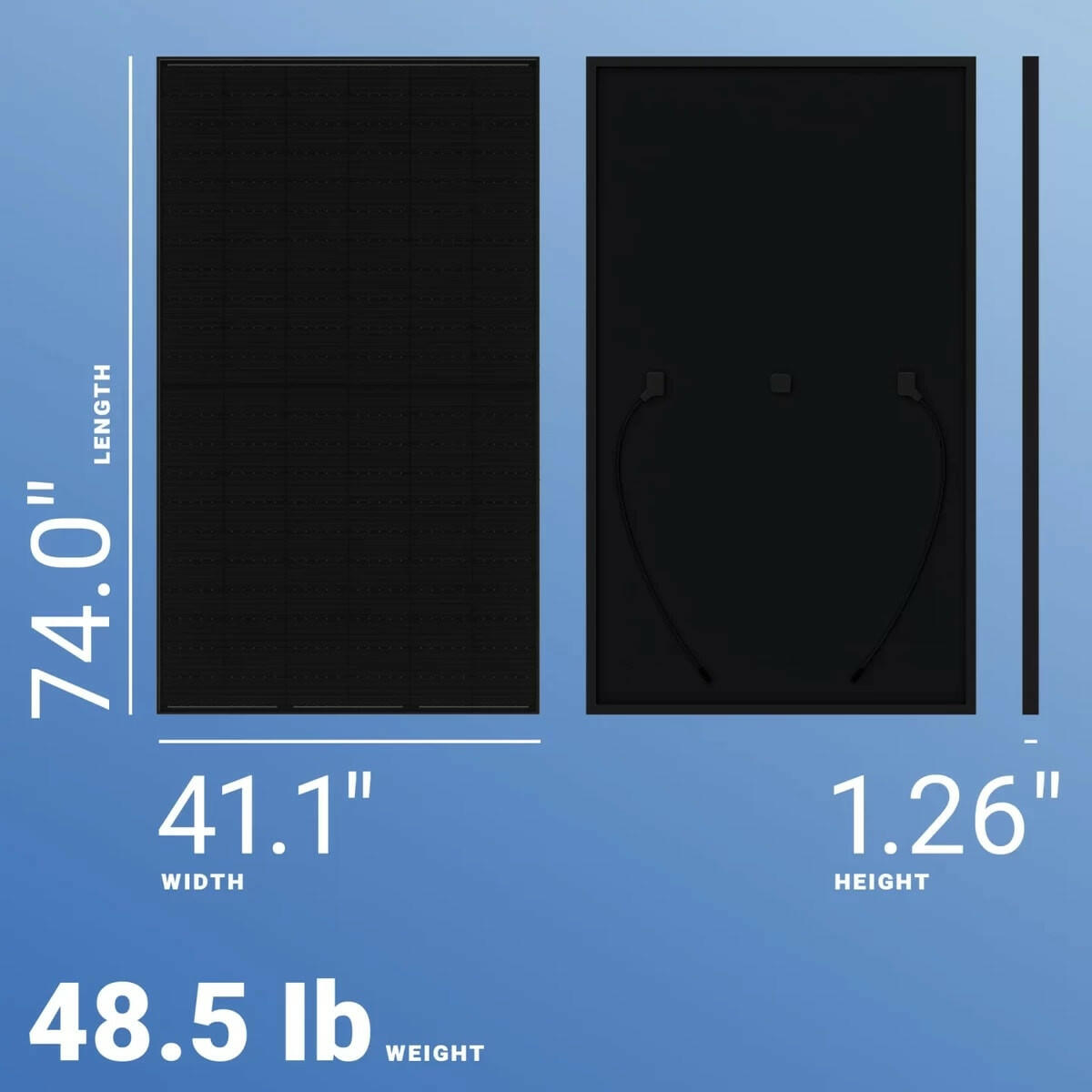

• Length: 74 in
• Width: 41.1 in
• Depth: 1.26 in
• Material: Black Anodized Aluminum Frame, Composite Film Back Cover
• Color: Black Frame, Black Backsheet
• Power Voltage: 37.39 V
• Power Current: 10.83 A
• Power Rating: 405 W
• Open Circuit Voltage: 45.34 V
• Short Circuit Current: 11.2 A
• Voltage Rating: 1000 V
• Cell Type: Monocrystalline Q.Antum Solar Half
• Number of Cells: 132 (6 x 22)
• Operating Temperature: 109°F
• Efficiency: 20.9%
• Connection Type: MC4
• Enclosure Rating/IP Rating: IP67
• Warranty: 25 Years
• Weight: 48.5 lb
• Standards: CSA, CE, Quality Controlled PV - TUV Rheinland, UL 61730, CE-compliant, IEC 61215:2016, IEC 61730:2016

Documents

• Specification Sheet
• Warranty Sheet
• Instruction/Installation Manual
