GoodWe Lynx FH-US Power Control Unit (PCU) - BZU0000-01-00P

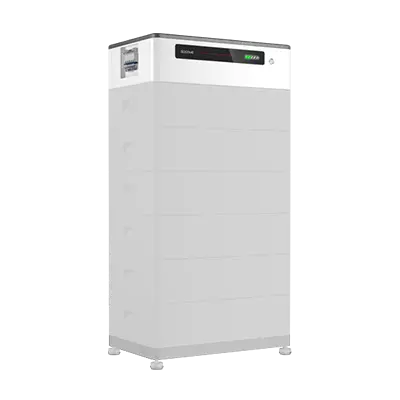

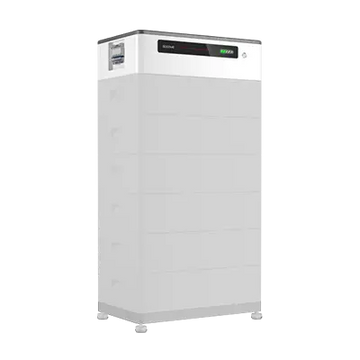

GoodWe Lynx FH-US (HV) Power Control Unit — BZU0000-01-00P
The PCU (Power Control Unit) is the controller and interface for Lynx FH-US battery stacks, coordinating CAN communication between the battery stack and compatible GoodWe inverters (ES-US / SBP-US / A-ES / A-BP). It manages the entire battery stack and enables seamless integration with GoodWe's residential energy storage ecosystem.
Key Features
- Central controller for GoodWe Lynx FH-US battery stacks
- CAN communication interface between battery stack and inverter
- Compatible with GoodWe ES-US, SBP-US, A-ES, and A-BP inverters
- Supports stacks from 9.6 kWh to 19.2 kWh capacity
- IP65 ingress protection (stack rating)
- UL1973 & UL9540A-2019 certified
Technical Specifications
| Parameter | Value |
|---|---|
| Model / Part Number | BZU0000-01-00P |
| Communication | CAN |
| PCU Weight | 37.5 ± 2.2 lb (17 ± 1 kg) |
| Ingress Protection | IP65 (stack rating) |
| Mounting Method | Ground-mounted stack |
| Operating Temperature (Charge) | +32°F to +122°F (0°C to +50°C) |
| Operating Temperature (Discharge) | +5°F to +122°F (-15°C to +50°C) |
| Max Operating Altitude | ≤ 9,842 ft (3,000 m) |
| Safety Certifications | UL1973; UL9540A-2019 |
| EMC | FCC Part 15 |
| Transportation | UN38.3 |
| Compatible Inverters | GoodWe ES-US, SBP-US, A-ES, A-BP |
Warranty
GoodWe standard manufacturer warranty applies. Please visit us.goodwe.com/warranty for full warranty details.
