GoodWe Lynx FH-US 3.2kWh LFP Battery Module - BMU0032-01-00P
GoodWe Lynx FH-US (HV) Battery Module — LX F3.2-30 / BMU0032-01-00P

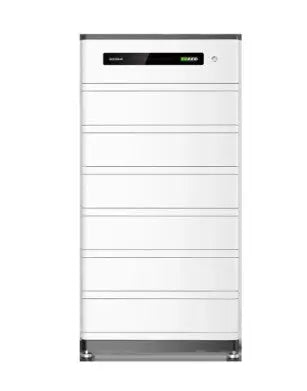

The GoodWe Lynx FH-US 3.2kWh LFP Battery Module - BMU0032-01-00P (LX F3.2-30) is the 3.2 kWh high-voltage LFP (LiFePO₄) module used to build Lynx FH-US stacks with 9.6–19.2 kWh total capacity. Modules auto-recognize in the stack and connect via CAN to the PCU and inverter, making installation more straightforward for residential solar energy storage systems in the U.S. market.
Key Features
- 3.2 kWh high-voltage LFP (LiFePO₄) chemistry for safety and long service life
- Scalable system design: stack 3–6 modules for 9.6–19.2 kWh total capacity
- Auto-recognition in stack for plug-and-play setup
- CAN communication with the PCU and GoodWe inverters
- IP65 ingress protection
- UL1973 and UL9540A-2019 certified
Technical Specifications
| Parameter | Value |
|---|---|
| Model / Part Number | BMU0032-01-00P (LX F3.2-30) |
| Module Energy | 3.2 kWh |
| Module Nominal Voltage | 64 V |
| Cell Chemistry | LFP (LiFePO₄) |
| Communication | CAN |
| Operating Temperature (Charge) | +32°F to +122°F (0°C to +50°C) |
| Operating Temperature (Discharge) | +5°F to +122°F (-15°C to +50°C) |
| Relative Humidity | ≤ 95% |
| Max Operating Altitude | ≤ 9,842 ft (3,000 m) |
| Ingress Protection | IP65 |
| Mounting Method | Ground-mounted stack |
| Module Weight | 83.8 ± 4.4 lb (38 ± 2 kg) |
| Safety Certifications | UL1973; UL9540A-2019 |
| EMC | FCC Part 15 |
| Transportation | UN38.3 |
Warranty
GoodWe standard manufacturer warranty applies. Please visit us.goodwe.com/warranty for full warranty details.
