GoodWe Automatic Transformer GW9600A-TX (ATX) - 120V for A-ES & A-BP

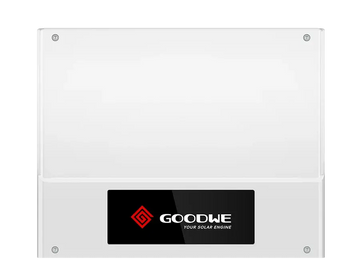

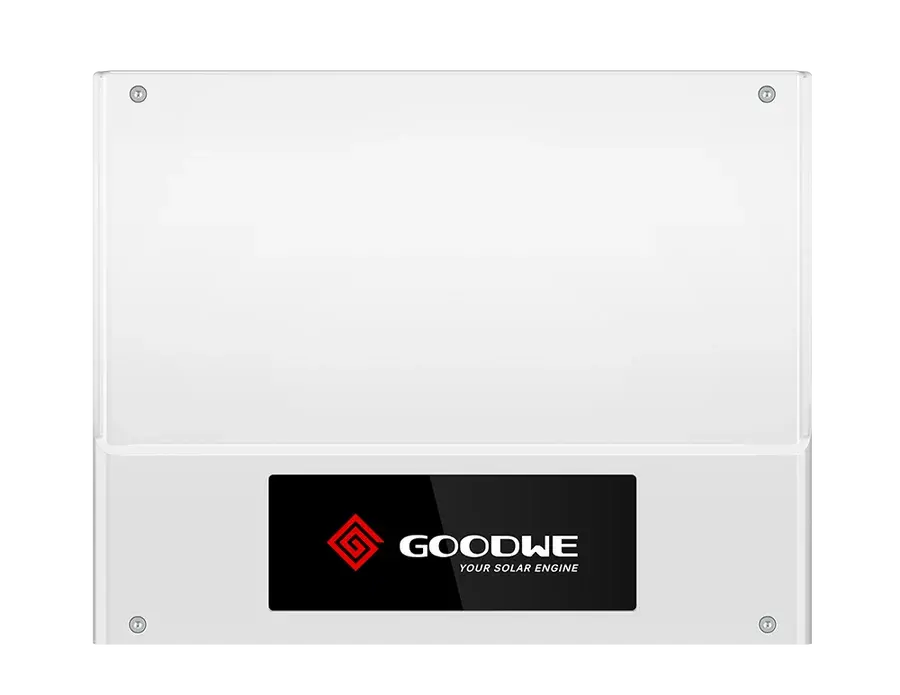

GoodWe Automatic Transformer (ATX) — GW9600A-TX
The GoodWe Auto Transformer GW9600A-TX is designed to work with GoodWe A-BP and A-ES inverters. It can support both 120V and 240V loads by balancing the inverter's output phases. Its intelligent design ensures seamless integration into existing power systems, enhancing efficiency and stability.
Key Features
- Automatic voltage regulation for stable power output
- High efficiency, reducing energy wastage
- Compact design for easy installation and space-saving
- Compatible with a wide range of power systems and configurations
- Designed for use with GoodWe A-BP and A-ES inverters
Technical Specifications
| Parameter | Value |
|---|---|
| Model | GW9600A-TX |
| SKU / Part Number | ATX9600-01-00P |
| Rated Voltage | 120/240V Split Phase |
| Rated Frequency | 60 Hz |
| Max Continuous Rated Power (L-N) | 4800 VA |
| Max Output Current per Phase | 40A |
| Dimension (W × H × D) | 13.6 × 10.9 × 6.9 in (345 × 277 × 174 mm) |
| Operating Temperature Range | -31°F ~ +140°F (-35°C ~ +60°C) |
| Max Operating Altitude | 13,123 ft (4,000 m) |
| Ingress Protection Rating | Type 4X |
| Compatible Inverters | GoodWe A-ES, A-BP |
Warranty
GoodWe standard manufacturer warranty applies. Please visit us.goodwe.com/warranty for full warranty details.
