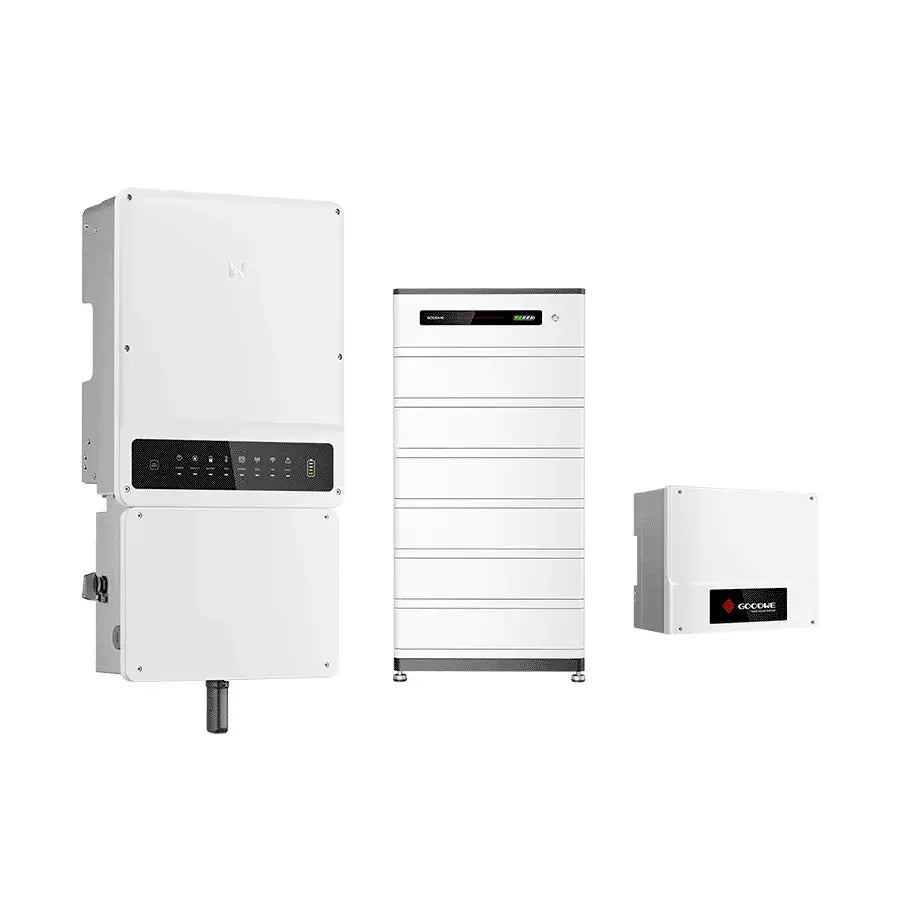

GoodWe A-ES 9.6kW Hybrid Inverter with GoodWe Lynx 19.2 kWh Battery FH-US High Voltage Battery —Bundle
Explore the Features of the GoodWe Hybrid Inverter Bundle
GW9600A-ES + LX F19.2-30
FH-US High Voltage Battery —Bundle
With APsmart RSD
This all-in-one energy storage bundle pairs the GoodWe A-ES hybrid inverter with the GoodWe Lynx FH-US high-voltage LFP battery, delivering a clean, code-compliant solution for residential whole-home backup and solar self-consumption.
Designed as a closed-loop system, the inverter and battery communicate directly for optimized charging, discharging, and long-term reliability—making this bundle ideal for new installs or storage retrofits.
Why This Bundle Works
- High-voltage efficiency: Wide battery voltage range enables excellent round-trip performance and reduced current losses
- Closed-loop communication: RS485/CAN BMS integration for intelligent battery management
- Outdoor-ready hardware: NEMA 4X inverter enclosure and IP65-rated battery
- Utility-approved: Certified for major interconnection and safety standards
GoodWe A-ES 9.6kW Hybrid Inverter
Built for modern grid-interactive homes, the A-ES hybrid inverter seamlessly manages PV production, battery storage, and household loads.
Key Features
- 97.6% peak efficiency
- Dual MPPT with wide voltage window
- Quiet operation for residential settings
- Integrated rapid-shutdown compatibility
- 10-year manufacturer warranty
Technical Specifications
- AC Output Voltage: 211–264V @ 240V
- Max PV Input Power: 15,000W
- MPPT Voltage Range: 550VDC
- Max Continuous Charging Current: 50A
- Battery Technology: Li-ion (high-voltage)
- Battery Voltage Range: 80V–495V
- BMS Communication: RS485, CAN
- Enclosure: NEMA Type 4X
- Operating Temp: −31°F to +140°F (−35°C to +60°C)
- Noise: <40 dB
- Dimensions: 16.3 × 31.1 × 6.9 in
- Weight: 70.5 lb
- Warranty: 10 years
- Certifications: UL 1741 / 1741 SA, IEEE 1547 / 1547.1, CA Rule 21, HECO Rule 14, CSA 22.2 No. 107-01, UL 1998, UL 1699B, FCC Part 15 Class B
GoodWe Lynx FH-US 19.2 kWh Battery
The Lynx FH-US uses LiFePO₄ (LFP) chemistry for long cycle life and thermal stability, purpose-built for residential energy storage.
| Specification | Details |
|---|---|
| Model | GoodWe Lynx FH-US (19.2 kWh configuration) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Usable Energy | 19.2 kWh |
| Nominal Voltage | 384 V |
| Operating Voltage Range | 342 V – 432 V |
| Nominal Power | 8.96 kW |
| Nominal Charge / Discharge Current | 35 A |
| Ingress Protection Rating | IP65 |
| Relative Humidity | ≤95% |
| Operating Temperature | Charge: +32°F to +122°F (0°C to +50°C) • Discharge: +5°F to +122°F (-15°C to +50°C) |
| Installation | Ground-mounted |
| Communication | CAN / RS485 |
| Scalability | Stackable; supports multiple towers in parallel |
| Certifications | UL 1973, UL 9540A-2019, UN 38.3, FCC Part 15 |
| Warranty | 10 years |
Ideal Applications
- Residential solar + storage systems
- Whole-home or partial-home backup
- Time-of-use rate optimization
- Grid-interactive and utility-approved installations
- Homeowners prioritizing safety, efficiency, and long-term value
Datasheets
MPN: GW9600A-ES + LX F19.2-30
Powerful and Efficient 9.6kW Hybrid Inverter
The GoodWe hybrid inverter bundle includes a high-performance 9.6kW A-ES hybrid inverter, engineered to optimize energy conversion for residential and commercial solar systems. This hybrid inverter offers seamless integration with energy storage solutions, ensuring smooth switching between solar power, battery storage, and grid electricity. Its advanced MPPT technology maximizes solar energy harvest, providing higher efficiency and reliability. The durable design and intelligent monitoring features add convenience and durability, making it a valuable component for sustainable energy management.
Robust GoodWe Lynx 19.2 kWh High Voltage Battery
Complementing the inverter is the GoodWe Lynx 19.2 kWh high voltage battery, designed to store significant solar energy capacity for later use. This battery provides stable and reliable power backup during grid outages and peak demand periods. With its high energy density and long lifecycle, it supports continuous power supply and reduces electricity costs. The integrated battery management system safeguards performance and security, making this bundle ideal for maximizing self-consumption and ensuring energy independence.
Complete Bundle for Advanced Solar Energy Solutions
This GoodWe hybrid inverter bundle offers a complete solar energy solution by combining the inverter and battery into a ready-to-install package. It simplifies system design and reduces installation time while delivering high compatibility and scalability. The bundle supports intelligent energy management, real-time monitoring, and flexible system expansion options. This efficient hybrid system not only enhances energy savings but also promotes sustainable living, catering to the increasing demand for energy resilience and environmental responsibility.
