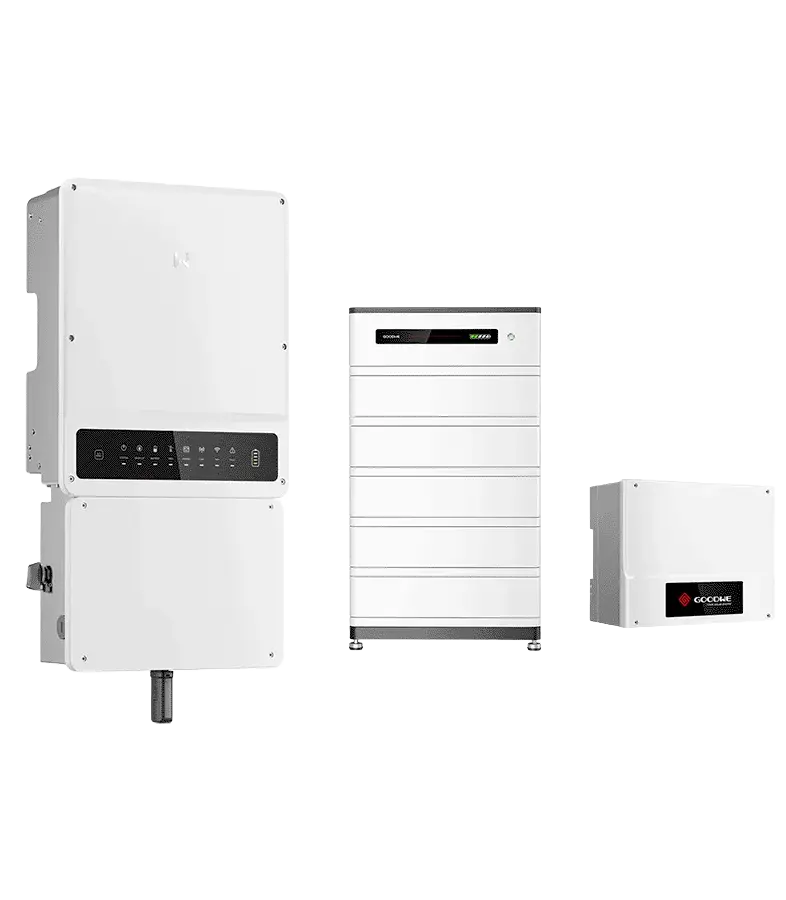

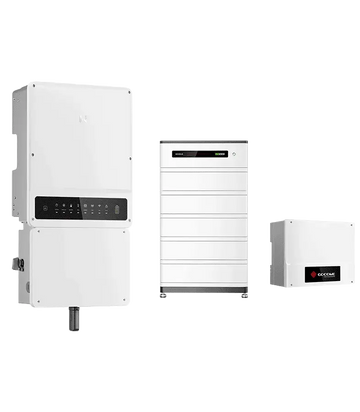

GoodWe A-ES 9.6kW Hybrid Inverter with GoodWe Lynx 16 kWh Battery FH-US High Voltage Battery —Bundle
-
Estimated Delivery:May 31 - Jun 04
-
Free Shipping & Returns: On all orders under $50
GoodWe A-ES 9.6kW Hybrid Inverter with GoodWe Lynx 16 kWh Battery FH-US High Voltage Battery —Bundle
Explore the Benefits of the GoodWe A-ES Hybrid Inverter with Lynx 16 kWh Battery Bundle
GW9600A-ES + LX F16.0-30
FH-US High Voltage Battery —Bundle
With APsmart RSD
This all-in-one energy storage bundle pairs the GoodWe A-ES hybrid inverter with the GoodWe Lynx FH-US high-voltage LFP battery, delivering a clean, code-compliant solution for residential whole-home backup and solar self-consumption.
Designed as a closed-loop system, the inverter and battery communicate directly for optimized charging, discharging, and long-term reliability—making this bundle ideal for new installs or storage retrofits.
Why This Bundle Works
- High-voltage efficiency: Wide battery voltage range enables excellent round-trip performance and reduced current losses
- Closed-loop communication: RS485/CAN BMS integration for intelligent battery management
- Outdoor-ready hardware: NEMA 4X inverter enclosure and IP65-rated battery
- Utility-approved: Certified for major interconnection and safety standards
GoodWe A-ES 9.6kW Hybrid Inverter
Built for modern grid-interactive homes, the A-ES hybrid inverter seamlessly manages PV production, battery storage, and household loads.
Key Features
- 97.6% peak efficiency
- Dual MPPT with wide voltage window
- Quiet operation for residential settings
- Integrated rapid-shutdown compatibility
- 10-year manufacturer warranty
Technical Specifications
- AC Output Voltage: 211–264V @ 240V
- Max PV Input Power: 15,000W
- MPPT Voltage Range: 550VDC
- Max Continuous Charging Current: 50A
- Battery Technology: Li-ion (high-voltage)
- Battery Voltage Range: 80V–495V
- BMS Communication: RS485, CAN
- Enclosure: NEMA Type 4X
- Operating Temp: −31°F to +140°F (−35°C to +60°C)
- Noise: <40 dB
- Dimensions: 16.3 × 31.1 × 6.9 in
- Weight: 70.5 lb
- Warranty: 10 years
- Certifications: UL 1741 / 1741 SA, IEEE 1547 / 1547.1, CA Rule 21, HECO Rule 14, CSA 22.2 No. 107-01, UL 1998, UL 1699B, FCC Part 15 Class B
GoodWe Lynx FH-US 16 kWh Battery
The Lynx FH-US uses LiFePO₄ (LFP) chemistry for long cycle life and thermal stability, purpose-built for residential energy storage.
| Specification | Details |
|---|---|
| Model | GoodWe Lynx FH-US (16.0 kWh configuration) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Usable Energy | 16.0 kWh |
| Nominal Voltage | 320 V |
| Operating Voltage Range | 285 V – 360 V |
| Nominal Power | 11.2 kW |
| Nominal Charge / Discharge Current | 35 A |
| Ingress Protection Rating | IP65 |
| Relative Humidity | ≤95% |
| Operating Temperature | Charge: +32°F to +122°F (0°C to +50°C) • Discharge: +5°F to +122°F (-15°C to +50°C) |
| Installation | Ground-mounted |
| Communication | CAN / RS485 |
| Scalability | Stackable system; supports multiple battery towers in parallel |
| Certifications | UL 1973, UL 9540A-2019, UN 38.3, FCC Part 15 |
| Warranty | 10 years |
Ideal Applications
- Residential solar + storage systems
- Whole-home or partial-home backup
- Time-of-use rate optimization
- Grid-interactive and utility-approved installations
- Homeowners prioritizing safety, efficiency, and long-term value
Datasheets
MPN: GW9600A-ES + LX F16.0-30
Advanced Technology of GoodWe A-ES Hybrid Inverter
The GoodWe A-ES hybrid inverter stands out as a cutting-edge solution designed for high-efficiency solar energy systems. With a rated power output of 9.6kW, it seamlessly integrates solar panels and battery storage. This inverter's high voltage design enables better energy management, offering users enhanced reliability and performance. Its smart features, such as multiple power tracking and rapid response to changing grid conditions, make it ideal for residential and commercial setups. The GoodWe A-ES hybrid inverter ensures maximum energy harvest while reducing electricity costs effectively.
Seamless Energy Storage with GoodWe Lynx 16 kWh Battery
Paired with the GoodWe A-ES hybrid inverter, the GoodWe Lynx 16 kWh battery provides robust energy storage capabilities essential for uninterrupted power supply. This high voltage battery features a long lifecycle and strong stability, supporting stored solar energy usage during peak hours or grid outages. The battery’s large capacity ensures that homes or businesses can rely less on the grid and more on their clean, stored energy. Combining the Lynx battery with GoodWe’s intelligent inverter delivers exceptional energy autonomy and sustainability.
Why Choose the GoodWe A-ES Hybrid Inverter Bundle?
Choosing the GoodWe A-ES hybrid inverter along with the Lynx 16 kWh battery offers a complete, efficient solar solution. This bundle is designed to optimize solar power usage and battery charging, maximizing overall system performance. It supports high voltage input, which minimizes energy losses and enhances safety. Additionally, the system comes with user-friendly monitoring options, allowing real-time tracking of solar production and consumption. This comprehensive setup means users benefit from cost savings, reliable backup power, and reduced carbon footprint, making it an excellent investment for sustainable energy.
