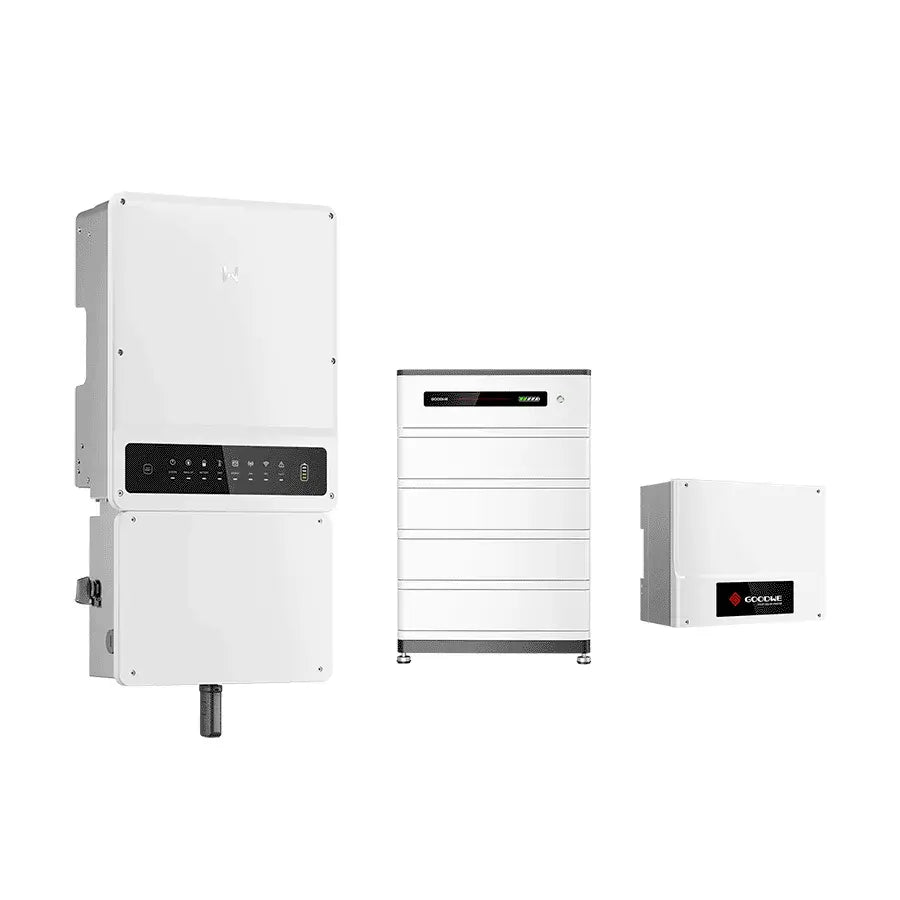

GoodWe A-ES 9.6kW Hybrid Inverter with GoodWe Lynx 12.8 kWh Battery FH-US High Voltage Battery —Bundle
Discover the Power of the GoodWe Hybrid Inverter Bundle
GW9600A-ES + LX F12.8-30
FH-US High Voltage Battery —Bundle
With APsmart RSD
This all-in-one energy storage bundle pairs the GoodWe A-ES hybrid inverter with the GoodWe Lynx FH-US high-voltage LFP battery, delivering a clean, code-compliant solution for residential whole-home backup and solar self-consumption.
Designed as a closed-loop system, the inverter and battery communicate directly for optimized charging, discharging, and long-term reliability—making this bundle ideal for new installs or storage retrofits.
Why This Bundle Works
- High-voltage efficiency: Wide battery voltage range enables excellent round-trip performance and reduced current losses
- Closed-loop communication: RS485/CAN BMS integration for intelligent battery management
- Outdoor-ready hardware: NEMA 4X inverter enclosure and IP65-rated battery
- Utility-approved: Certified for major interconnection and safety standards
- Scalable storage: Start at 12.8 kWh with the Lynx FH-US platform
GoodWe A-ES 9.6kW Hybrid Inverter
Built for modern grid-interactive homes, the A-ES hybrid inverter seamlessly manages PV production, battery storage, and household loads.
Key Features
- 97.6% peak efficiency
- Dual MPPT with wide voltage window
- Quiet operation for residential settings
- Integrated rapid-shutdown compatibility
- 10-year manufacturer warranty
Technical Specifications
- AC Output Voltage: 211–264V @ 240V
- Max PV Input Power: 15,000W
- MPPT Voltage Range: 550VDC
- Max Continuous Charging Current: 50A
- Battery Technology: Li-ion (high-voltage)
- Battery Voltage Range: 80V–495V
- BMS Communication: RS485, CAN
- Enclosure: NEMA Type 4X
- Operating Temp: −31°F to +140°F (−35°C to +60°C)
- Noise: <40 dB
- Dimensions: 16.3 × 31.1 × 6.9 in
- Weight: 70.5 lb
- Warranty: 10 years
- Certifications: UL 1741 / 1741 SA, IEEE 1547 / 1547.1, CA Rule 21, HECO Rule 14, CSA 22.2 No. 107-01, UL 1998, UL 1699B, FCC Part 15 Class B
GoodWe Lynx FH-US 12.8 kWh Battery
The Lynx FH-US uses LiFePO₄ (LFP) chemistry for long cycle life and thermal stability, purpose-built for residential energy storage.
| Specification | Details |
|---|---|
| Nominal Voltage | 256V |
| Operating Voltage Range | 228V–288V |
| Usable Energy | 12.8 kWh |
| Nominal Power | 8.96 kW |
| Nominal Charge/Discharge Current | 35A |
| Ingress Protection | IP65 |
| Operating Temp (Charge) | +32°F to +122°F (0°C to +50°C) |
| Operating Temp (Discharge) | +5°F to +122°F (−15°C to +50°C) |
| Installation | Ground-mounted |
| Dimensions | 23.6 × 35.6 × 15 in |
| Weight | 384.7 lb |
| Warranty | 10 years |
| Certifications | UL 1973, UL 9540A-2019, UN 38.3, FCC Part 15 |
Ideal Applications
- Residential solar + storage systems
- Whole-home or partial-home backup
- Time-of-use rate optimization
- Grid-interactive and utility-approved installations
- Homeowners prioritizing safety, efficiency, and long-term value
Datasheets
MPN: GW9600A-ES + LX F12.8-30
Advanced Solar Energy Management with GoodWe Hybrid Inverter Bundle
The GoodWe hybrid inverter bundle combines the robust 9.6kW A-ES hybrid inverter with the reliable GoodWe Lynx 12.8 kWh FH-US high voltage battery to offer a comprehensive solar energy solution. Designed for high efficiency and versatility, this bundle supports seamless energy conversion, storage, and distribution, ensuring optimal use of solar power for both residential and commercial applications. Utilizing the latest in inverter technology, it maximizes energy savings while providing backup power, making it an intelligent choice for sustainable energy users seeking reliability and performance.
Enhanced Performance and Longevity of GoodWe Hybrid Inverter Bundle
The GoodWe hybrid inverter bundle is engineered to deliver outstanding performance and durability. The 9.6kW A-ES inverter supports high voltage battery integration, enabling effective energy storage via the 12.8 kWh GoodWe Lynx FH-US battery. This hybrid system enhances energy independence by utilizing stored solar power during peak hours or outages. Thanks to advanced MPPT technology and robust safety features, the system ensures consistent energy output and extended lifespan. Its scalable design allows easy expansion, adapting to growing energy needs while maintaining efficiency and reliability.
Seamless Installation and Smart Monitoring Features
This GoodWe hybrid inverter bundle comes with user-friendly installation options and smart monitoring capabilities. The integrated GoodWe Lynx battery supports high voltage operation, reducing cable complexity and installation time. Users benefit from real-time system monitoring through the GoodWe SEMS portal or mobile app, providing insights into energy production, consumption, and battery status. Such transparency helps optimize solar usage and detect any system issues early. The bundle's compact design and flexible setup make it ideal for various environments, bringing advanced solar hybrid technology within easy reach.
