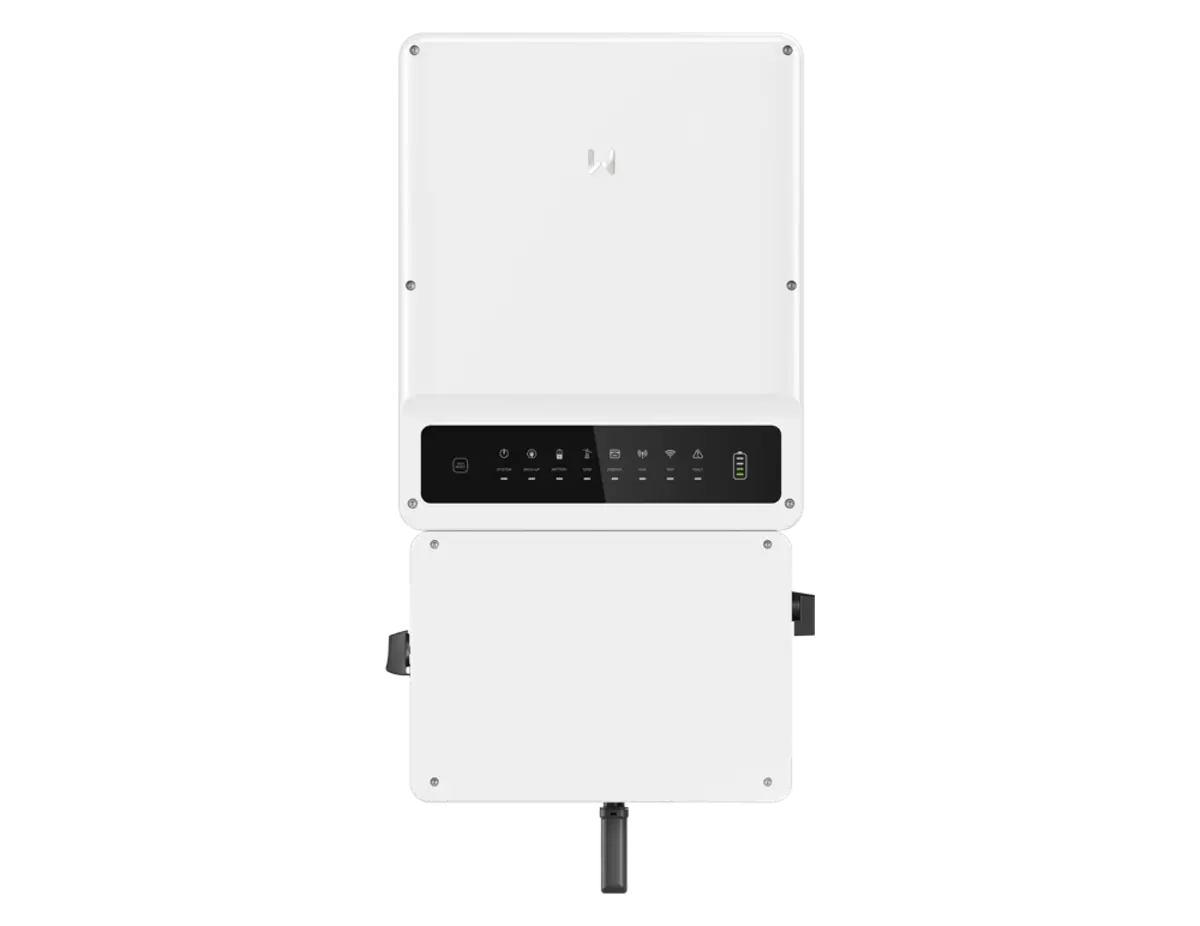

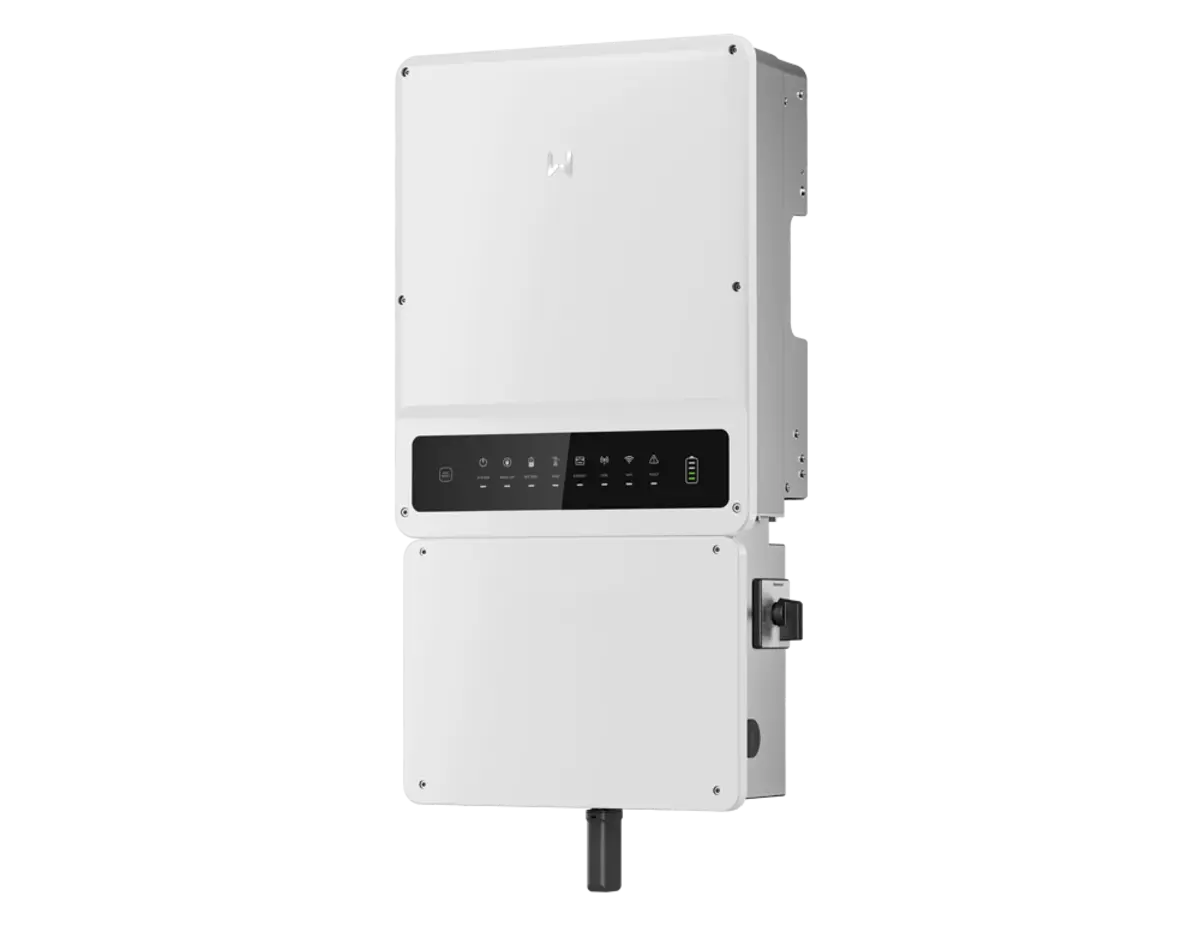

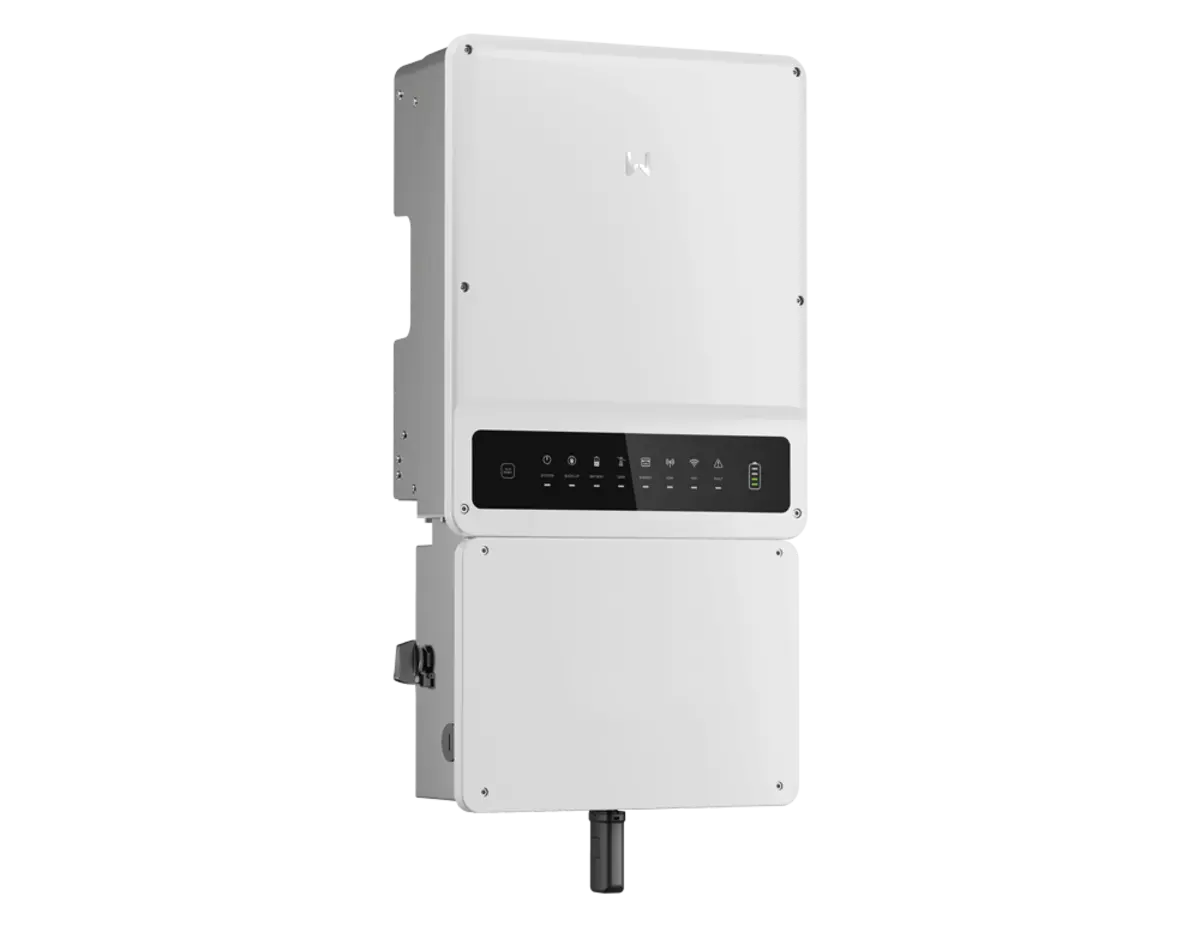

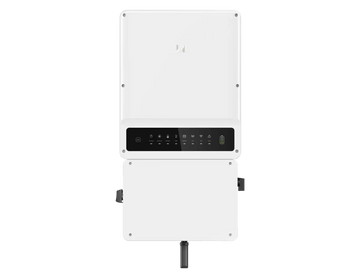

Goodwe 8600W Hybrid Inverter Single Phase 4 MPPT with AC Bypass (APS) (SKU Part Number GW8600A-ES)

Overview of the Goodwe 8600W Hybrid Inverter

The GoodWe A-ES Series is a split-phase hybrid inverter designed to increase self-consumption of your generated solar energy. GoodWe A-ES is compatible with high voltage (80-495V) batteries with a power capacity ranging from 5 kW to 9.6 kW. With up to 4 MPPTs, the A-ES inverter seamlessly adapts to complex residential rooftops. Equipped with rapid battery charge functionality and perfectly capable of powering large loads in back-up mode (up to 9.6 kW).

Features

• Seamless UPS switch function AFCI & rapid shutdown
• AFCI & Rapid shutdown
• 4 MPPT's & 150% DC input oversizing - Up to 4 MPPTs, the A-ES (5-9.6 kW) is the perfect solution to feed solar power to large residential properties, covering all the corners of your rooftop and maximizing total solar generation. With 150% DC input oversizing capability, the A-ES series is driven to its full capacity by extra reflections added to the back of bifacial panels, designed to increase power output even under low solar radiation
• Smart meter integrated
• Integrated AFCI & Rapid Shutdown - The GoodWe A-ES has been designed to meet the safety regulations of the American market, including Arc Fault Circuit Interrupter and Rapid Shutdown. GoodWe does not only deliver efficiency, reliability, but security as well


Specifications

• Series/Model: A-ES
• Dimensions: 16.3 in x 31.1 in x 6.9 in
• Battery Type: Lithium-Ion
• Battery Voltage: 80-495 V
• Maximum Continuous Charging Current: 50 A
• Maximum Discharging Charging Current: 50 A
• Maximum Input Power: 12900 W
• Maximum Input Voltage: 600 V
• MPPT Operating Voltage Range: 80-550 V
• Start-Up Voltage: 95 V
• Nominal Input Voltage: 380 V
• Maximum Input Current Per MPPT: 12.5 A (4 channels)
• Maximum Short-Circuit Current Per MPPT: 15.2 A (4 channels)
• Number of MPPT: 4
• Number of Strings Per MPPT: 1
• Maximum Apparent Power Output to Utility Grid: 8600 VA
• Maximum Apparent Power From Utility Grid: 9600 VA
• Output Voltage Range: 211-264 VAC at 240 VAC
• Nominal AC Grid Frequency: 60 Hz
• Maximum AC Current Output to Utility Grid: 35.8 A
• Maximum AC Current From Utility Grid: 40 A
• Power Factor: 1 (Adjustable from 0.8 Leading to 0.8 Lagging)
• Maximum Total Harmonic Distortion: <3%
• Maximum Output Apparent Power at 240V: 8600 VA (10320 VA at 60 sec)
• Maximum Output Current at 240 V: 35.8 A
• Nominal Output Voltage L1-L2/L-N: 120/240 VAC
• Nominal Output Frequency: 60 Hz
• Output THDv at Linear Load: <3%
• Maximum Efficiency: 97.6%
• CEC Efficiency: 97.1%
• Maximum Battery to AC Efficiency: 96.6%
• PV Insulation Resistance Detection: Integrated
• Residual Current Monitoring: Integrated
• PV Reverse Polarity Protection: Integrated
• Battery Reverse Polarity Protection: Integrated
• Anti-Islanding Protection: Integrated
• AC Overcurrent Protection: Integrated
• AC Short-Circuit Protection: Integrated
• AC Overvoltage Protection: Integrated
• PV Arc Fault Detection: Integrated
• Operating Temperature: -31 to 140 deg F
• Relative Humidity: 0-95%
• Maximum Operating Altitude: 4000 m
• Cooling Method: Intelligent Fan
• Display Type: LED & APP (Wi-Fi, Bluetooth)
• Communication with BMS: RS485, CAN
• Communication with Meter: RS485
• Communication with Portal: Wi-Fi, LAN (Optional)
• Noise Emission: <45 dB
• Topology: Transformerless
• Self-Consumption at Night: <20 W
• Enclosure Rating: NEMA Type 4 X
• Mounting Method: Wall Bracket
• Standards:
  • UL1741 SA
  • California Rule 21
  • HECO Rule 14
  • IEEE 1547
  • IEEE 1547.1
  • UL 1741
  • CSA 22.2 No. 107-01
  • UL 1998
  • UL1699B
  • FCC part15 CLASS B
• Warranty: 5 Years Limited
• Weight: 70.5 lb


Documents

• Specification Sheet
• User Manual


Advanced Technology and Performance

The Goodwe 8600W Hybrid Inverter is a state-of-the-art solution designed to optimize solar energy systems with its single-phase 4 MPPT design. This advanced inverter efficiently manages solar input through multiple maximum power point trackers, ensuring maximum energy harvest from PV modules under different shading and orientation conditions. Its integration includes an AC bypass (APS), allowing seamless switching between grid power and solar power, which adds reliability and reduces power outages. Designed for residential and commercial use, this inverter balances performance with energy savings, making it a preferred choice for customers seeking dependable hybrid inverter technology.

Flexible Energy Management and Backup Support

Equipped with the AC bypass feature, the Goodwe 8600W Hybrid Inverter supports uninterrupted power supply by automatically switching to grid power during solar or battery failure. This functionality is critical in maintaining continuous power, particularly in areas with unstable grid conditions. The hybrid system works with energy storage solutions, allowing users to store excess solar energy in batteries and use it when needed, reducing dependence on the grid. The inverter’s intelligent management system optimizes charging and discharging cycles, enhancing battery longevity and ensuring efficient use of available solar power throughout the day and night.

Robust Design and User-Friendly Operation

Built to last, the Goodwe 8600W Hybrid Inverter features a durable casing suitable for indoor and outdoor installation, resistant to dust and moisture. The user interface is designed for easy monitoring and control via an LCD screen or smartphone app, offering real-time data on energy production, consumption, and system status. Installation is simplified by its compact form factor and flexible wiring options. With built-in safety features like anti-islanding protection, overvoltage protection, and fault alarms, this inverter ensures system safety and reliability. Its adaptability with a wide range of batteries makes it an excellent investment for effective solar power management.
