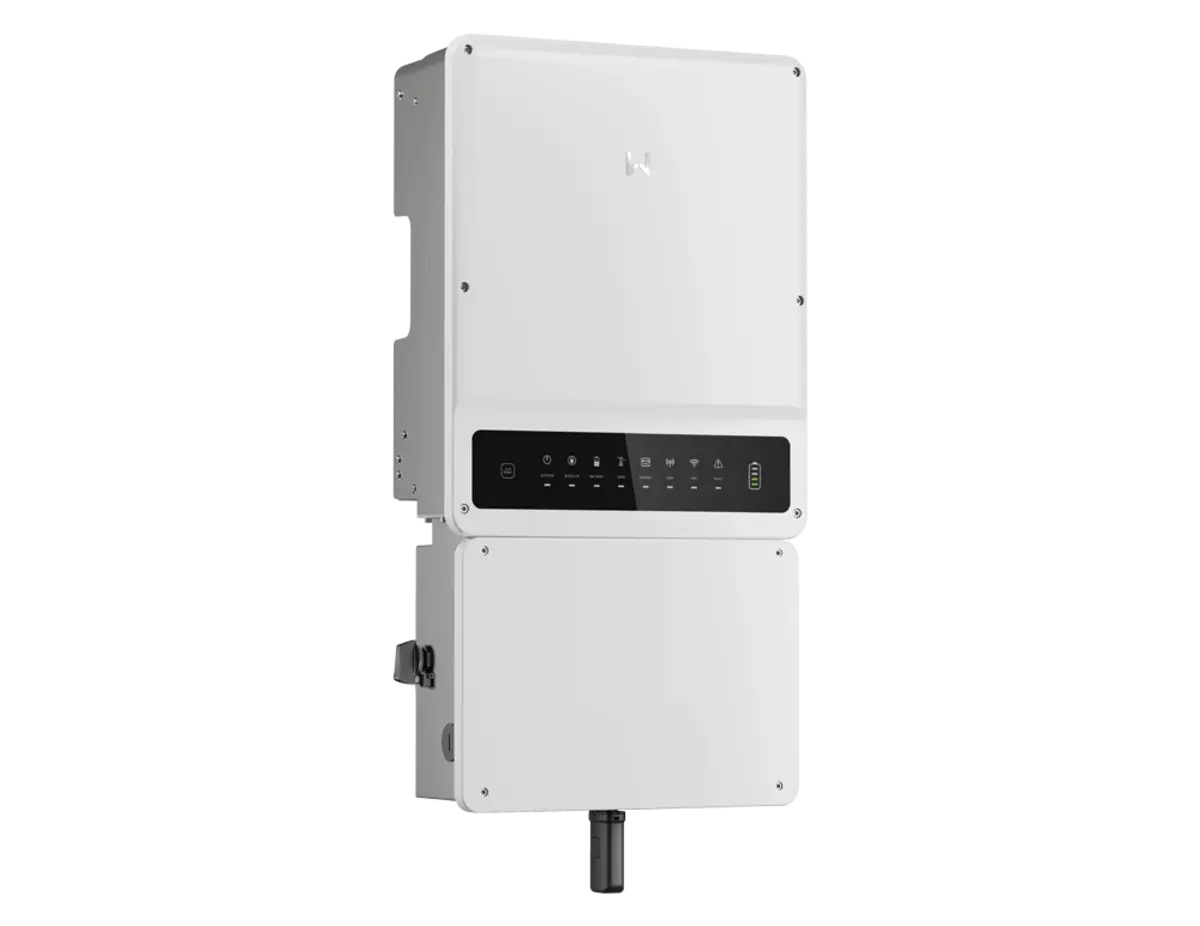

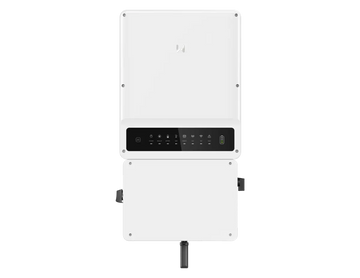

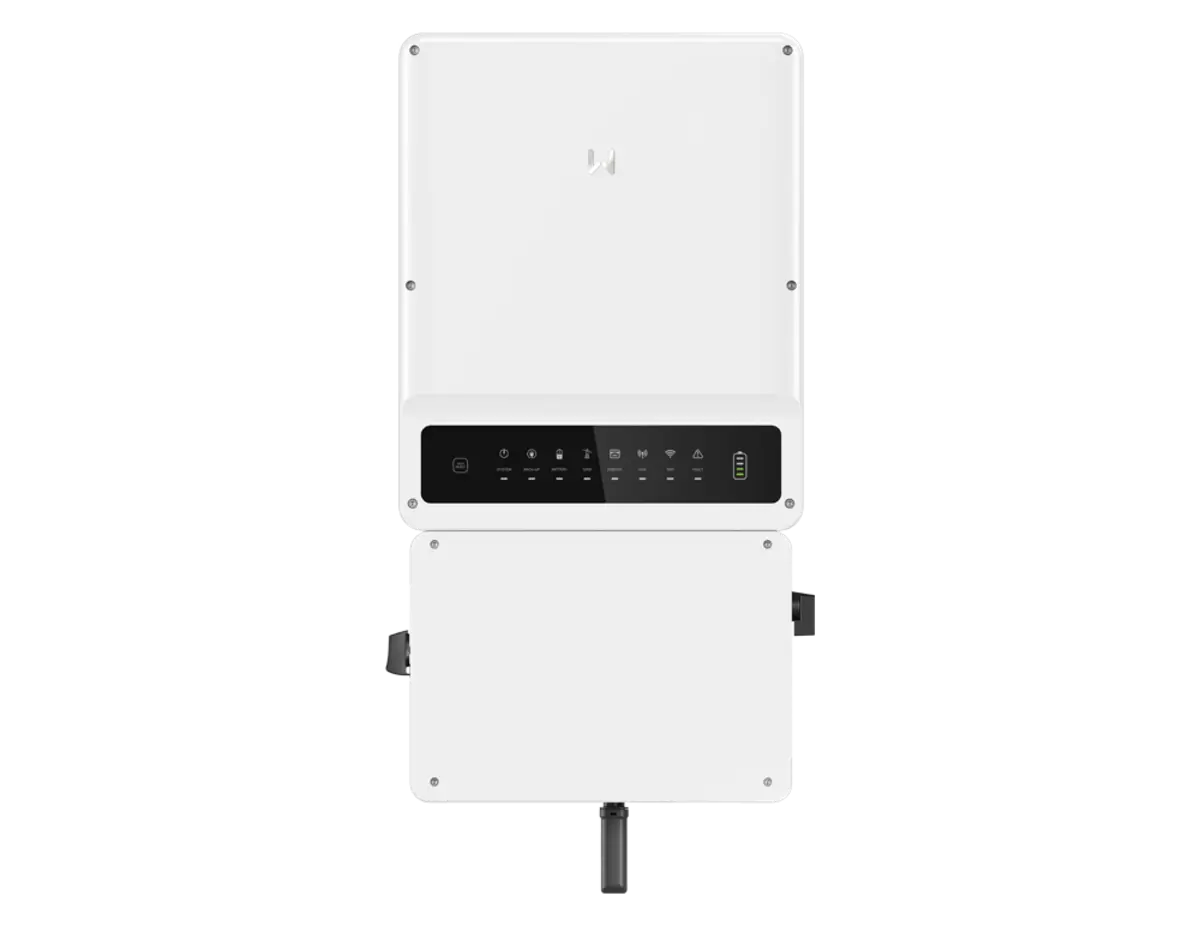

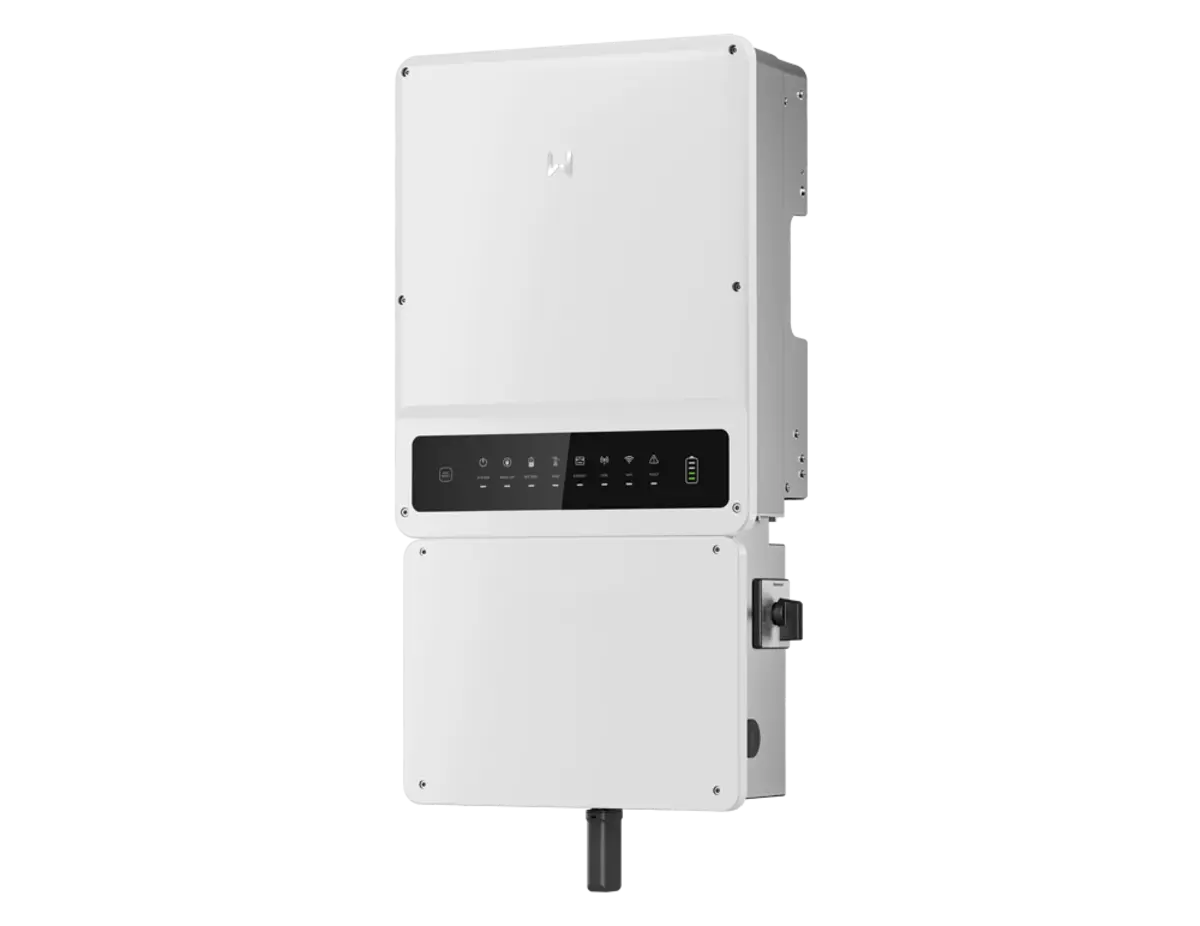

Goodwe 7000W Hybrid Inverter Single Phase 4 MPPT with AC Bypass (APS) (SKU Part Number GW7000A-ES)

Explore the Advanced Features of the Goodwe 7000W Hybrid Inverter

The GoodWe A-ES Series is a split-phase hybrid inverter designed to increase self-consumption of your generated solar energy. GoodWe A-ES is compatible with high voltage (80-495V) batteries with a power capacity ranging from 5 kW to 9.6 kW. With up to 4 MPPTs, the A-ES inverter seamlessly adapts to complex residential rooftops. Equipped with rapid battery charge functionality and perfectly capable of powering large loads in back-up mode (up to 9.6 kW).

Features

• Seamless UPS switch function AFCI & rapid shutdown
• AFCI & Rapid shutdown
• 4 MPPT's & 150% DC input oversizing - Up to 4 MPPTs, the A-ES (5-9.6 kW) is the perfect solution to feed solar power to large residential properties, covering all the corners of your rooftop and maximizing total solar generation. With 150% DC input oversizing capability, the A-ES series is driven to its full capacity by extra reflections added to the back of bifacial panels, designed to increase power output even under low solar radiation
• Smart meter integrated
• Integrated AFCI & Rapid Shutdown - The GoodWe A-ES has been designed to meet the safety regulations of the American market, including Arc Fault Circuit Interrupter and Rapid Shutdown. GoodWe does not only deliver efficiency, reliability, but security as well


Specifications

• Series/Model: A-ES
• Dimensions: 16.3 in x 31.1 in x 6.9 in
• Battery Type: Lithium-Ion
• Battery Voltage: 80-495 V
• Maximum Continuous Charging Current: 50 A
• Maximum Discharging Charging Current: 50 A
• Maximum Input Power: 10500 W
• Maximum Input Voltage: 600 V
• MPPT Operating Voltage Range: 80-550 V
• Start-Up Voltage: 95 V
• Nominal Input Voltage: 380 V
• Maximum Input Current Per MPPT: 12.5 A (4 channels)
• Maximum Short-Circuit Current Per MPPT: 15.2 A (4 channels)
• Number of MPPT: 4
• Number of Strings Per MPPT: 1
• Maximum Apparent Power Output to Utility Grid: 7000 VA
• Maximum Apparent Power From Utility Grid: 8400 VA
• Output Voltage Range: 211-264 VAC at 240 VAC
• Nominal AC Grid Frequency: 60 Hz
• Maximum AC Current Output to Utility Grid: 29.2 A
• Maximum AC Current From Utility Grid: 35 A
• Power Factor: 1 (Adjustable from 0.8 Leading to 0.8 Lagging)
• Maximum Total Harmonic Distortion: <3%
• Maximum Output Apparent Power at 240V: 7000 VA (8400 VA at 60 sec)
• Maximum Output Current at 240 V: 29.2 A
• Nominal Output Voltage L1-L2/L-N: 120/240 VAC
• Nominal Output Frequency: 60 Hz
• Output THDv at Linear Load: <3%
• Maximum Efficiency: 97.6%
• CEC Efficiency: 97.1%
• Maximum Battery to AC Efficiency: 96.6%
• PV Insulation Resistance Detection: Integrated
• Residual Current Monitoring: Integrated
• PV Reverse Polarity Protection: Integrated
• Battery Reverse Polarity Protection: Integrated
• Anti-Islanding Protection: Integrated
• AC Overcurrent Protection: Integrated
• AC Short-Circuit Protection: Integrated
• AC Overvoltage Protection: Integrated
• PV Arc Fault Detection: Integrated
• Operating Temperature: -31 to 140 deg F
• Relative Humidity: 0-95%
• Maximum Operating Altitude: 4000 m
• Cooling Method: Intelligent Fan
• Display Type: LED & APP (Wi-Fi, Bluetooth)
• Communication with BMS: RS485, CAN
• Communication with Meter: RS485
• Communication with Portal: Wi-Fi, LAN (Optional)
• Noise Emission: <45 dB
• Topology: Transformerless
• Self-Consumption at Night: <20 W
• Enclosure Rating: NEMA Type 4 X
• Mounting Method: Wall Bracket
• Standards:
  • UL1741 SA
  • California Rule 21
  • HECO Rule 14
  • IEEE 1547
  • IEEE 1547.1
  • UL 1741
  • CSA 22.2 No. 107-01
  • UL 1998
  • UL1699B
  • FCC part15 CLASS B
• Warranty: 5 Years Limited
• Weight: 70.5 lb


Documents

• Specification Sheet
• User Manual


Powerful and Efficient Hybrid Inverter Design

The Goodwe 7000W Hybrid Inverter is engineered for optimal solar energy conversion and power management. Featuring a robust 7000-watt output capacity, this inverter integrates single-phase configuration paired with four independent Maximum Power Point Tracking (MPPT) inputs. These MPPT inputs maximize energy harvest from solar panels, ensuring efficient system performance under varying sunlight conditions. Its advanced hybrid technology enables seamless switching between solar power, battery storage, and the utility grid, providing reliable energy supply even during outages. This inverter is an excellent choice for residential and light commercial solar installations requiring high efficiency and flexibility.

Smart AC Bypass Function for Uninterrupted Power

Equipped with an AC bypass automatic power supply (APS) feature, the Goodwe 7000W Hybrid Inverter ensures continuous power delivery even during maintenance or fault conditions. The AC bypass intelligently switches to grid power when the inverter experiences issues or maintenance downtime, eliminating power interruptions. This functionality enhances system reliability and guarantees that critical loads remain powered. In addition to maintaining a steady energy supply, the bypass function improves overall system safety and operational lifespan. Users benefit from peace of mind knowing their power needs will be met without disruption.

Advanced Monitoring and User-Friendly Interface

This inverter offers comprehensive monitoring capabilities through Goodwe’s intuitive app and web portal, enabling users to track system performance in real-time. The interface displays key data such as energy production, consumption, battery status, and system alerts. Installation and configuration are simplified thanks to clear visual feedback and straightforward setup procedures. Additionally, the inverter supports remote firmware updates, ensuring your system stays up to date with the latest functionalities. Whether you are a homeowner or technician, this user-centric design makes operation and maintenance easier and more efficient.
