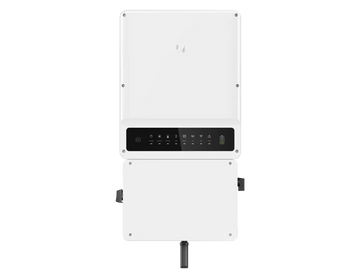

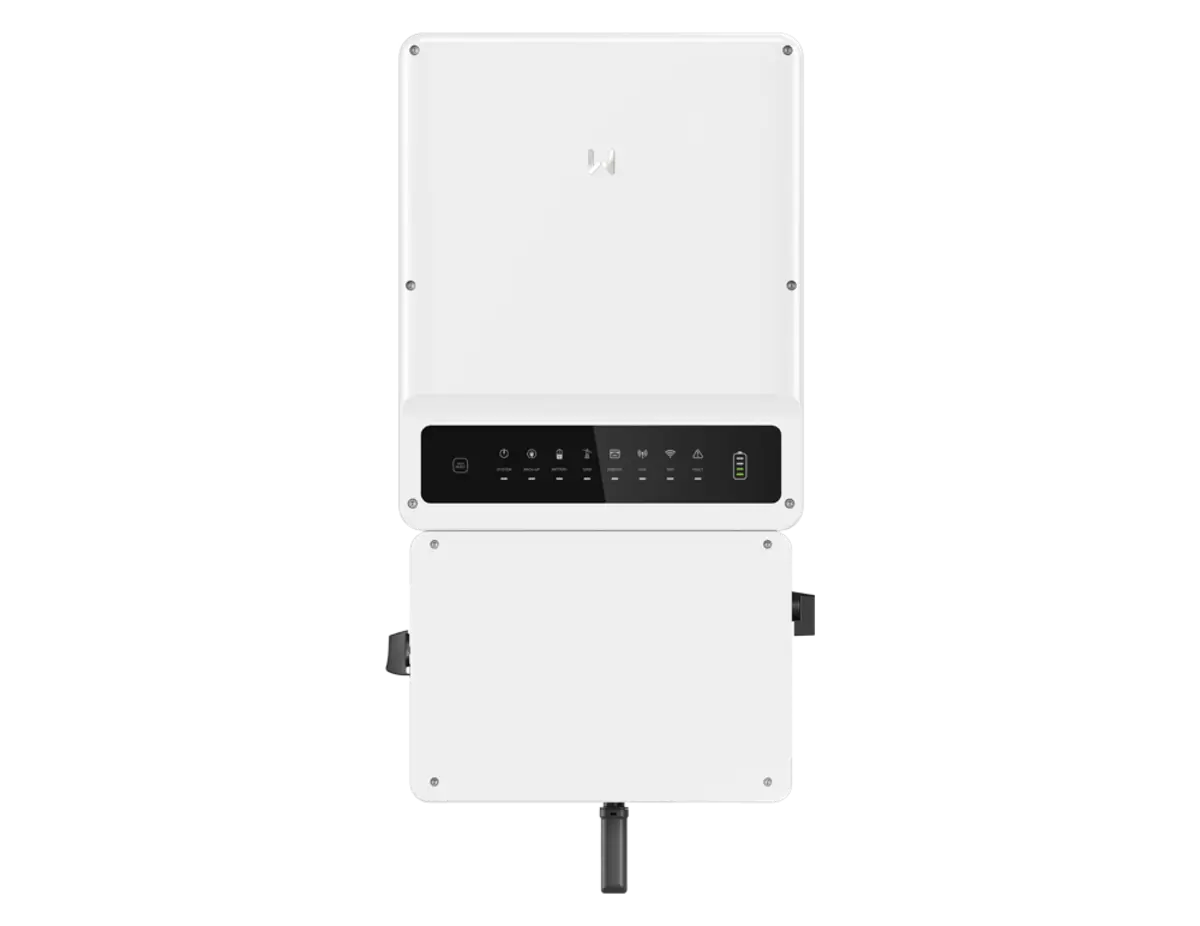

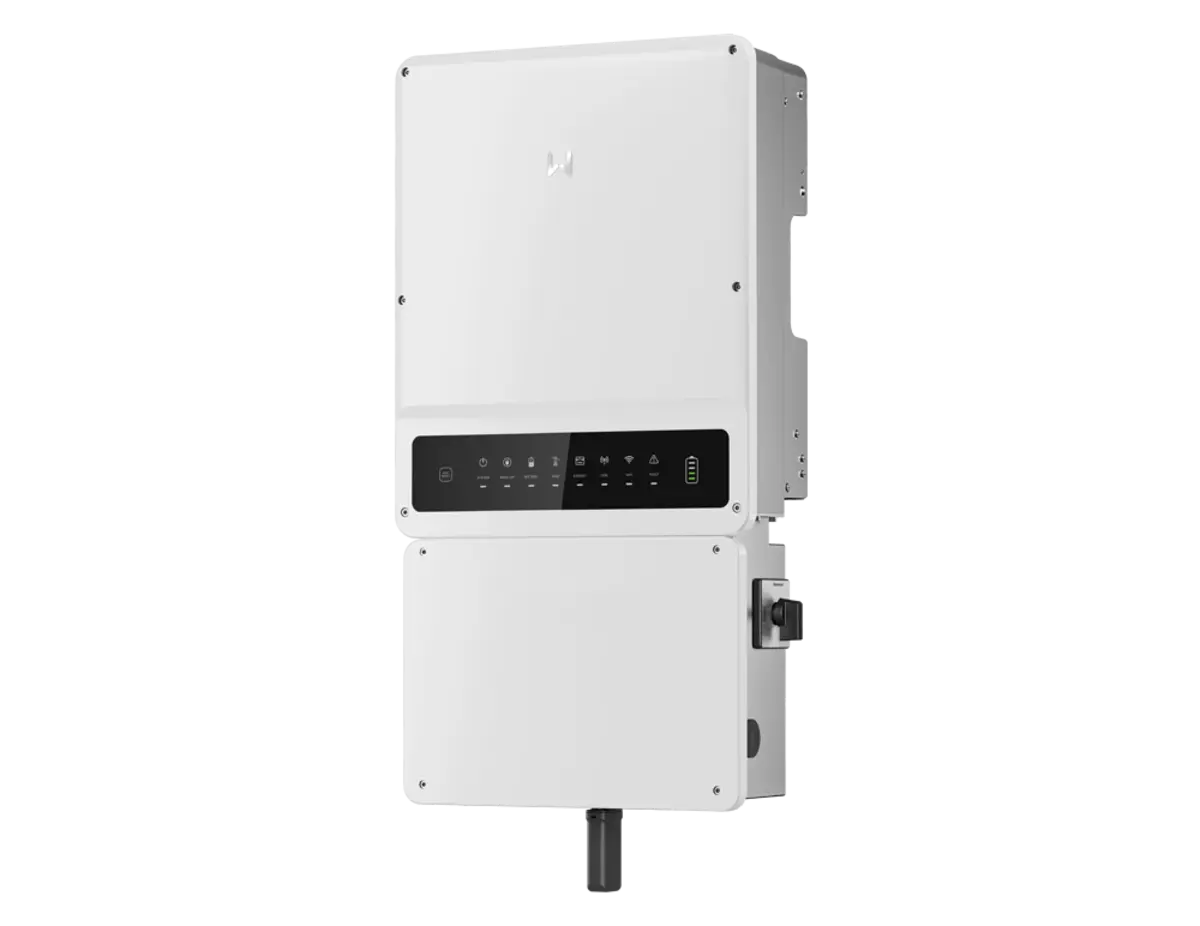

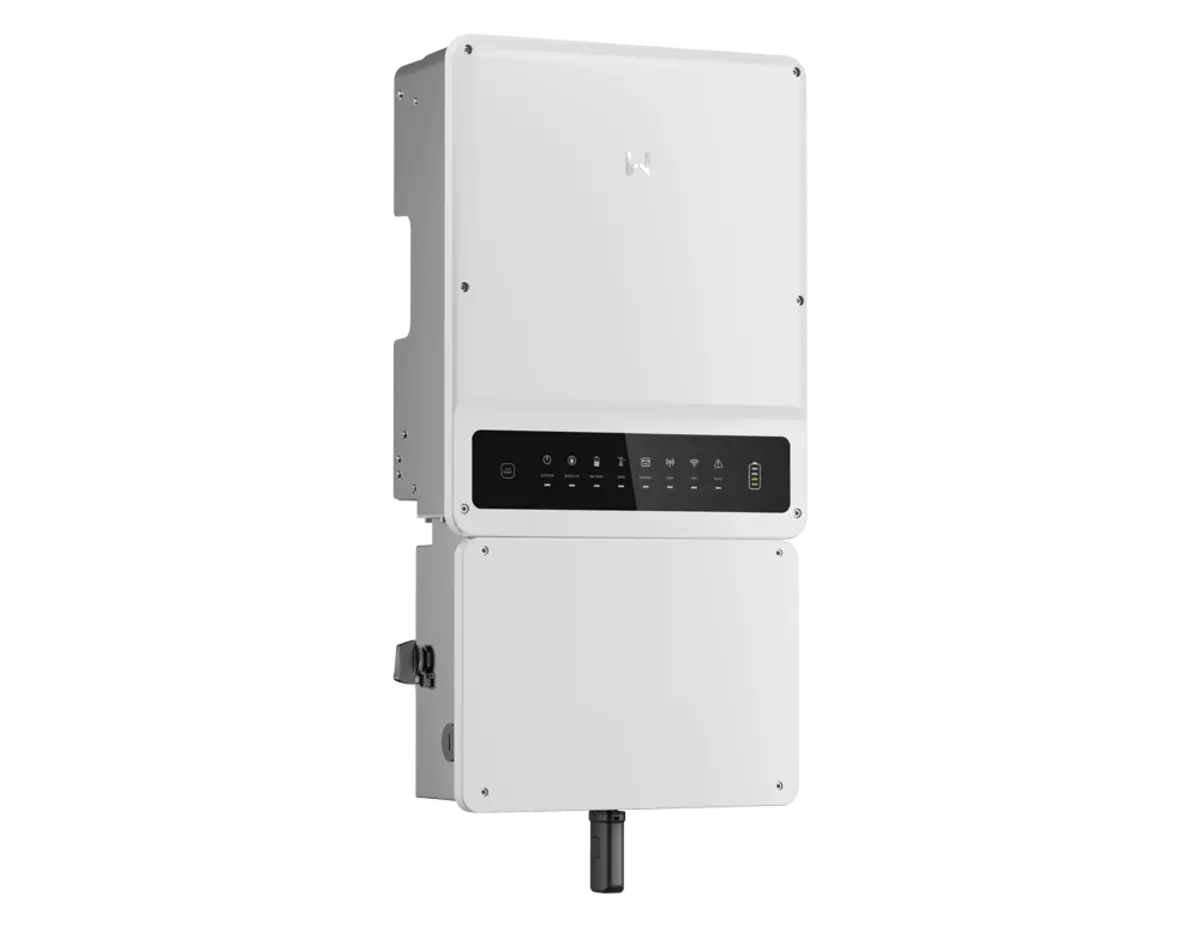

Goodwe 6000W Hybrid Inverter Single Phase 2 MPPT with AC Bypass (APS) (SKU Part Number GW6000A-ES)

Overview of the Goodwe 6000W Hybrid Inverter

The GoodWe A-ES Series is a split-phase hybrid inverter designed to increase self-consumption of your generated solar energy. GoodWe A-ES is compatible with high voltage (80-495V) batteries with a power capacity ranging from 5 kW to 9.6 kW. With up to 4 MPPTs, the A-ES inverter seamlessly adapts to complex residential rooftops. Equipped with rapid battery charge functionality and perfectly capable of powering large loads in back-up mode (up to 9.6 kW).

Features

• Seamless UPS switch function AFCI & rapid shutdown
• AFCI & Rapid shutdown
• 4 MPPT's & 150% DC input oversizing - Up to 4 MPPTs, the A-ES (5-9.6 kW) is the perfect solution to feed solar power to large residential properties, covering all the corners of your rooftop and maximizing total solar generation. With 150% DC input oversizing capability, the A-ES series is driven to its full capacity by extra reflections added to the back of bifacial panels, designed to increase power output even under low solar radiation
• Smart meter integrated
• Integrated AFCI & Rapid Shutdown - The GoodWe A-ES has been designed to meet the safety regulations of the American market, including Arc Fault Circuit Interrupter and Rapid Shutdown. GoodWe does not only deliver efficiency, reliability, but security as well


Specifications

• Series/Model: A-ES
• Dimensions: 16.3 in x 31.1 in x 6.9 in
• Battery Type: Lithium-Ion
• Battery Voltage: 80-495 V
• Maximum Continuous Charging Current: 50 A
• Maximum Discharging Charging Current: 50 A
• Maximum Input Power: 9000 W
• Maximum Input Voltage: 600 V
• MPPT Operating Voltage Range: 80-550 V
• Start-Up Voltage: 95 V
• Nominal Input Voltage: 380 V
• Maximum Input Current Per MPPT: 12.5 A
• Maximum Short-Circuit Current Per MPPT: 15.2 A
• Number of MPPT: 2
• Number of Strings Per MPPT: 1
• Maximum Apparent Power Output to Utility Grid: 6000 VA
• Maximum Apparent Power From Utility Grid: 7200 VA
• Output Voltage Range: 211-264 VAC at 240 VAC
• Nominal AC Grid Frequency: 60 Hz
• Maximum AC Current Output to Utility Grid: 25 A
• Maximum AC Current From Utility Grid: 30 A
• Power Factor: 1 (Adjustable from 0.8 Leading to 0.8 Lagging)
• Maximum Total Harmonic Distortion: <3%
• Maximum Output Apparent Power at 240V: 6000 VA (7200 VA at 60 sec)
• Maximum Output Current at 240 V: 25 A
• Nominal Output Voltage L1-L2/L-N: 120/240 VAC
• Nominal Output Frequency: 60 Hz
• Output THDv at Linear Load: <3%
• Maximum Efficiency: 97.6%
• CEC Efficiency: 97.4%
• Maximum Battery to AC Efficiency: 96.6%
• PV Insulation Resistance Detection: Integrated
• Residual Current Monitoring: Integrated
• PV Reverse Polarity Protection: Integrated
• Battery Reverse Polarity Protection: Integrated
• Anti-Islanding Protection: Integrated
• AC Overcurrent Protection: Integrated
• AC Short-Circuit Protection: Integrated
• AC Overvoltage Protection: Integrated
• PV Arc Fault Detection: Integrated
• Operating Temperature: -31 to 140 deg F
• Relative Humidity: 0-95%
• Maximum Operating Altitude: 4000 m
• Cooling Method: Intelligent Fan
• Display Type: LED & APP (Wi-Fi, Bluetooth)
• Communication with BMS: RS485, CAN
• Communication with Meter: RS485
• Communication with Portal: Wi-Fi, LAN (Optional)
• Noise Emission: <45 dB
• Topology: Transformerless
• Self-Consumption at Night: <20 W
• Enclosure Rating: NEMA Type 4 X
• Mounting Method: Wall Bracket
• Standards:
  • UL1741 SA
  • California Rule 21
  • HECO Rule 14
  • IEEE 1547
  • IEEE 1547.1
  • UL 1741
  • CSA 22.2 No. 107-01
  • UL 1998
  • UL1699B
  • FCC part15 CLASS B
• Warranty: 5 Years Limited
• Weight: 62.8 lb


Documents

• Specification Sheet
• User Manual


Advanced Hybrid Technology for Reliable Energy

The Goodwe 6000W Hybrid Inverter is designed to provide efficient energy conversion and management for residential and commercial solar systems. Featuring a single phase output combined with dual Maximum Power Point Tracking (MPPT), it maximizes solar energy harvesting. Its smart AC bypass (APS) function ensures stable power supply even during grid disturbances. This inverter offers a seamless transition between solar, battery, and grid power, allowing users to enjoy uninterrupted electricity while optimizing energy use. The reliable Goodwe 6000W Hybrid Inverter makes solar power more accessible and sustainable for everyday applications.

Key Features and Performance Highlights

Equipped with 2 MPPT inputs, the Goodwe 6000W Hybrid Inverter enhances system efficiency by independently tracking different solar arrays. This capability improves energy yield, especially when panels face different directions or shading. The built-in AC bypass allows continuous power output during grid outages, maintaining a steady electricity flow. Its compact design and intelligent monitoring system simplify installation and maintenance. Furthermore, the inverter supports lithium-ion and lead-acid batteries, providing flexibility for various energy storage options. These features collectively offer an optimized hybrid solution that meets modern energy demands efficiently.

Installation, Usability, and Safety Benefits

The Goodwe 6000W Hybrid Inverter supports easy installation with user-friendly interfaces and clear setup protocols. Its integrated communication ports enable remote monitoring via mobile apps and PC, empowering users with real-time performance data. Safety features like anti-islanding protection, overvoltage and overcurrent safeguards keep the system and users secure. The inverter’s robust design withstands harsh environmental conditions, ensuring durability and long-term reliability. Ultimately, this model balances advanced technology with practical usability, making it an excellent choice for sustainable energy management in both homes and businesses.
