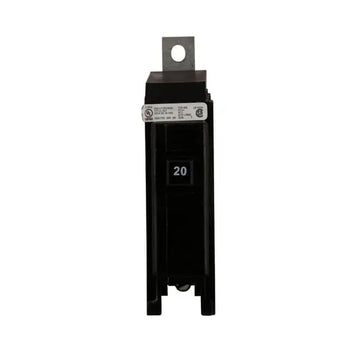

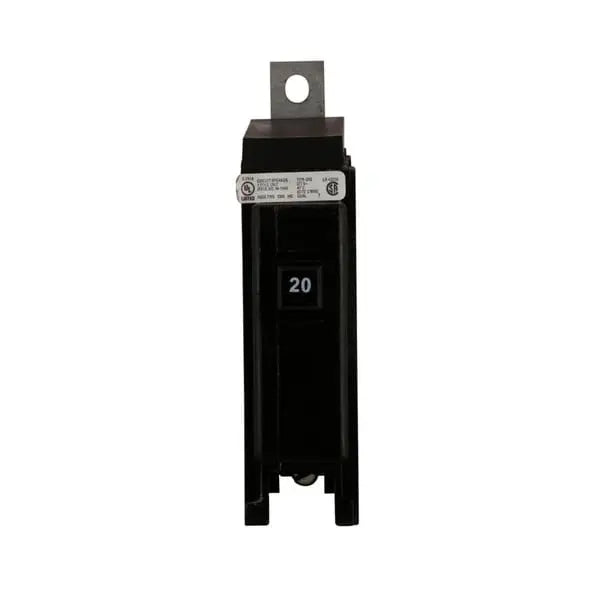

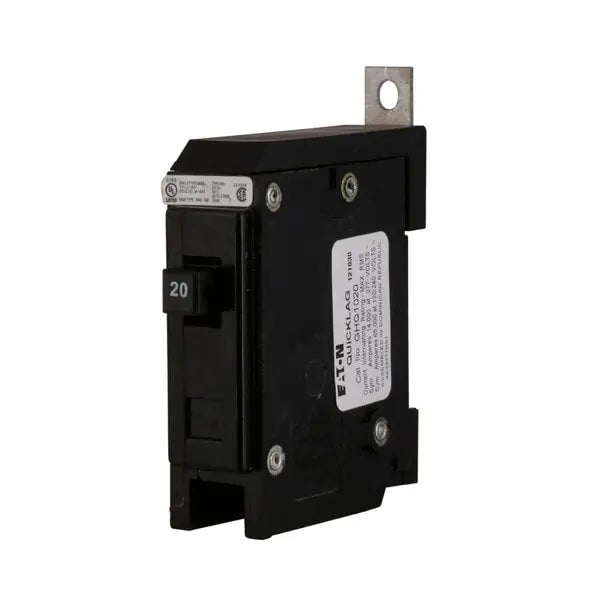

GHQ1020 - Eaton GHQ Thermal Magnetic Circuit Breaker

The Eaton GHQ Thermal Magnetic Circuit Breaker is designed for reliable protection in electrical systems. With a 20A rating, this single-pole breaker offers thermal-magnetic protection to prevent overcurrent and short-circuit damage. Rated for 277V and 120/208/240V applications, it features a 14 Kaic interrupting rating and comes with a non-interchangeable design. This breaker also includes a shunt trip for remote operation.

Key Features:

• Product Type: Thermal-Magnetic Circuit Breaker
• Amperage Rating: 20A
• Pole Configuration: Single-Pole
• Voltage Rating: 277V (and 120/208/240V with Shunt Trip)
• Interrupting Rating: 14 Kaic
• Frame Type: GHP, GDB-Frame
• Shunt Trip: Included for remote operation
• Design: Non-Interchangeable

This thermal-magnetic circuit breaker provides reliable overcurrent and short-circuit protection, making it ideal for both residential and commercial electrical systems.

Documents:

Catalogs
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1

Specifications and datasheets
Eaton Specification Sheet - GHQ1020
