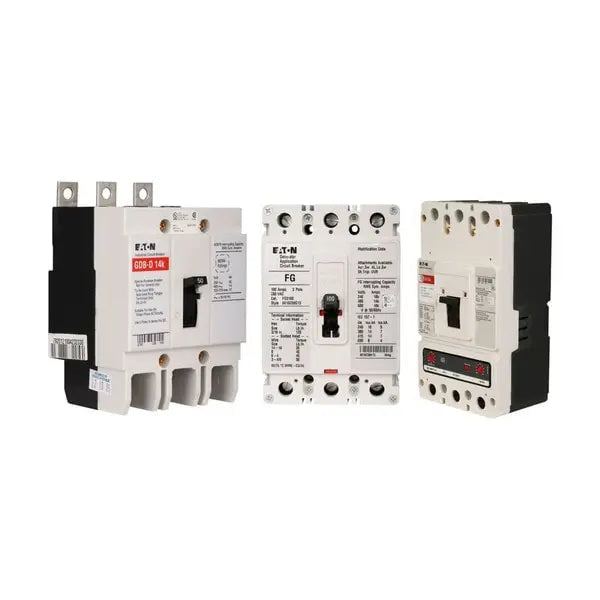

GHB2080 - Eaton Series C Complete Molded Case Circuit Breaker

The Eaton Series C GHB Molded Case Circuit Breaker is built to deliver reliable and consistent protection for demanding electrical systems in commercial and industrial settings. This G-frame breaker features fixed thermal and fixed magnetic trip types, ensuring dependable response to overloads and short circuits. With a two-pole configuration and an 80A current rating, it is capable of operating at 480Y/277 Vac and 125/250 VDC, providing versatility across AC and DC circuits. Designed for 50/60 Hz systems, it offers efficient and safe circuit management in a compact and durable package.

Key Features:

• Fixed thermal and magnetic trip types for consistent protection
• Two-pole configuration for enhanced circuit isolation
• 80A rating suitable for 480Y/277 Vac and 125/250 VDC applications
• Operates at 50/60 Hz for broad compatibility
• Designed for industrial and commercial electrical systems

This Eaton Series C breaker ensures reliable circuit protection and operational safety in a wide range of applications.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Brochures
Motor protection circuit breakers product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Circuit breakers explained
