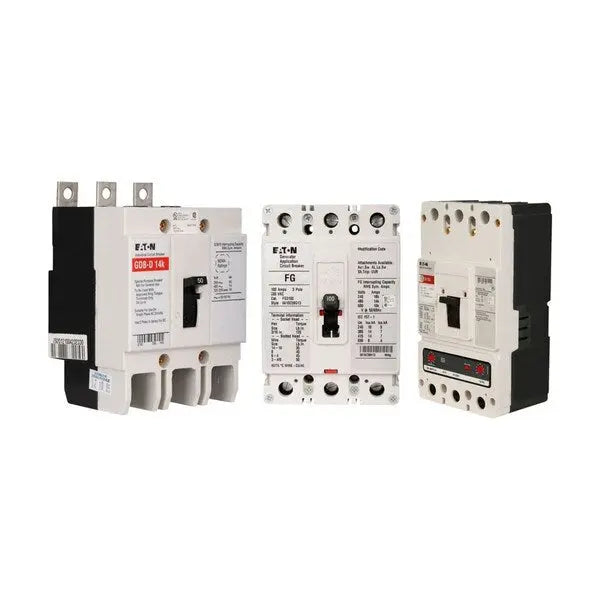

GHB2050 - Eaton Series C Complete Molded Case Circuit Breaker

The Eaton Series C GHB Molded Case Circuit Breaker is designed to deliver superior protection and performance in demanding industrial and commercial electrical systems. With a 50A current rating, this G-frame, two-pole breaker features fixed thermal and fixed magnetic trip types, providing reliable defense against overloads and short circuits. It supports dual voltage operation at 480Y/277 Vac and 125/250 VDC, making it versatile for both AC and DC applications. Designed for 50/60 Hz systems, this complete breaker ensures safe and efficient circuit management.

Key Features:

• Fixed thermal and magnetic trip types for dependable circuit protection
• Two-pole configuration for enhanced safety and isolation
• 50A rating with support for 480Y/277 Vac and 125/250 VDC systems
• Operates on 50/60 Hz frequency
• Ideal for both commercial and industrial applications

This Eaton Series C breaker is a reliable solution for high-performance circuit protection across a wide range of electrical installations.

Documents:

Application notes
Application of Tap Rules to Molded Case Breaker Terminals

Brochures
Power metering and monitoring with Modbus RTU product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Circuit Breakers Explained
