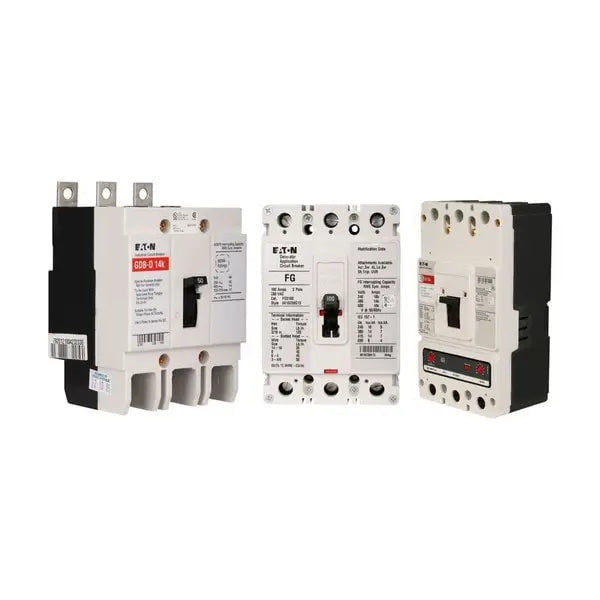

GHB2040 - Eaton Series C Complete Molded Case Circuit Breaker
-
Estimated Delivery:Dec 01 - Dec 05
-
Free Shipping & Returns: On all orders over $75
GHB2040 - Eaton Series C Complete Molded Case Circuit Breaker
The Eaton Series C GHB 40A G-Frame Molded Case Circuit Breaker is engineered for industrial and commercial applications requiring robust overcurrent protection. This fixed-trip breaker combines thermal and magnetic elements to safeguard circuits from overloads and short circuits.
Key Features:
- Frame Type: G-Frame, GHB series
- Amperage Rating: 40 A
- Voltage Ratings: 480Y/277 Vac; 125/250 Vdc
- Trip Type: Fixed thermal and fixed magnetic
- Poles: Two-pole configuration
- Frequency: 50/60 Hz
- Interrupting Capacity: 14 kAIC at 480Y/277 Vac
- Mounting: Bolt-on
- Wire Size: #14–4 AWG Cu/Al
- Application: Suitable for panelboards, switchboards, motor control centers, and busway applications
This breaker is ideal for installations requiring reliable protection against overcurrents, ensuring the safety and longevity of electrical systems.
Documents:
Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Specifications and datasheets
Series C G-Frame molded case circuit breakers time current curves
Eaton Specification Sheet - GHB2040
