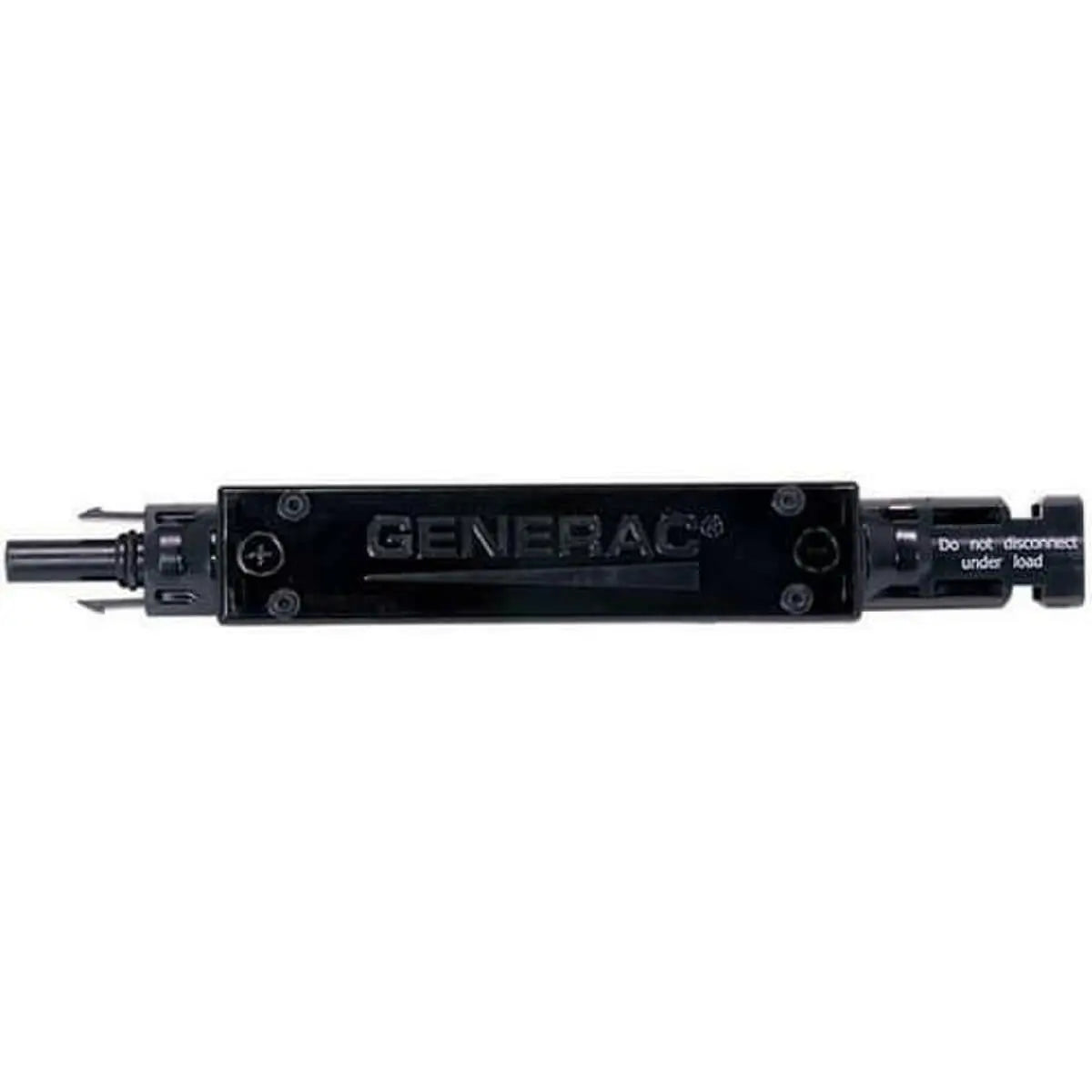

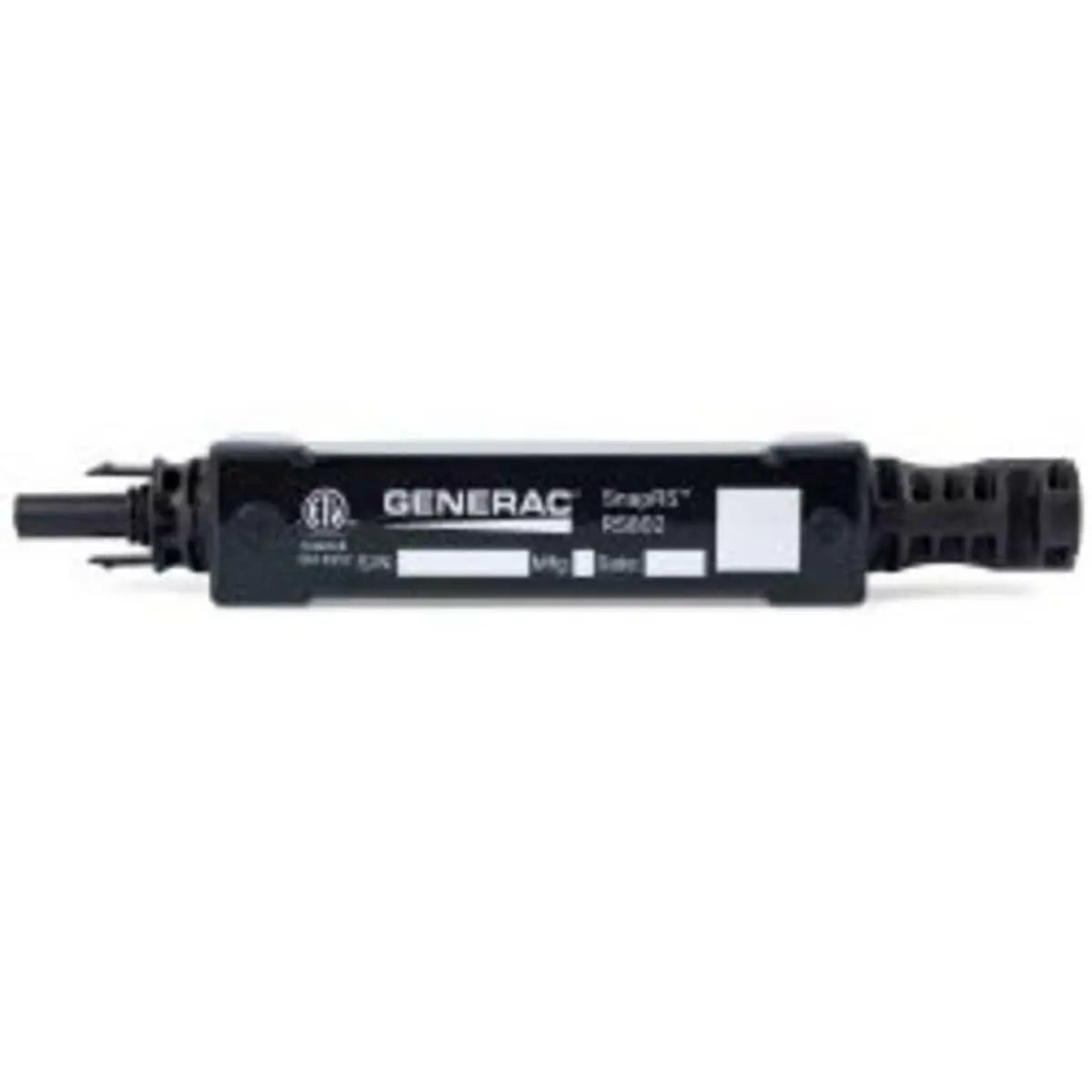

Generac SnapRS™ 15 A Inline Rapid Shutdown Disconnect Switch for PV Link Optimizers

Generac SnapRS are a simple way to satisfy rapid shutdown compliance for solar + storage systems. Generac SnapRS are 2017/2020 NEC 690.12 compliant, don't require any extra hardware to mount, and need no pairing or fussy digital communications. Snap a Generac SnapRS disconnect device (RS) to the negative lead (-) of each module in the solar array for simple module-level rapid shutdown compliance. SnapRS devices isolate array voltage when a rapid shutdown is initiated at a PWRcell™ Inverter. When rapid shutdown is initiated, SnapRS units isolate each PV module in the array, reducing array voltage to <80V in seconds.

Features

• Safe and reliable
• Fast, easy, and simple to install
• One SnapRS device per PV module
• Achieves PVRSS Compliance
• Low cost, high efficiency solution


Specifications

• Type: Inline Rapid Shutdown
• Series/Model: SnapRS™
• PV Module: 75 V
• Efficiency: 99.8%
• Maximum Input Current: 15 A
• Number of Substrings: 10
• Maximum Short-Circuit Current (ISC) of String: 12 A
• Shutdown Time: <10 sec
• Enclosure Rating: NEMA 6P
• Operating Temperature: -40 to 158°F (-40 to 70°C)
• Protection Type: PVRSE
• Standards: UL1741
• Warranty: 25 Years
• Weight: 0.17 lb


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
