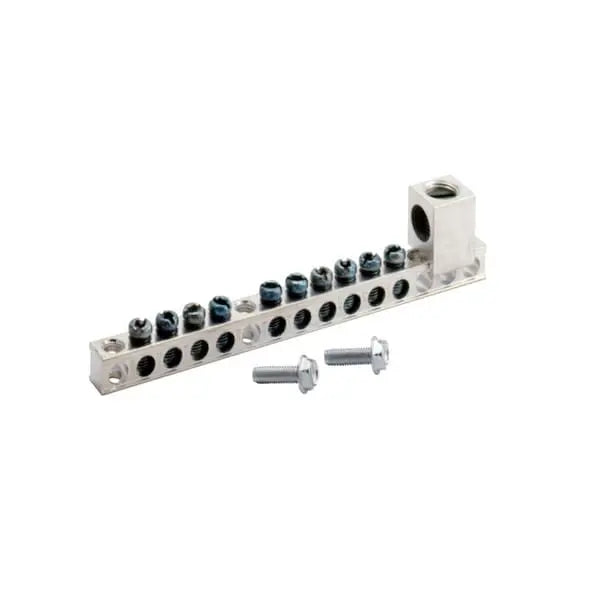

GBK1020 - Eaton CH Loadcenter and Breaker Accessories - 10 Terminal Ground Bar Kit

The Eaton CH Loadcenter and Breaker Accessories 10-Terminal Ground Bar Kit is a crucial component for enhancing the grounding capability of CH and BR loadcenters. This kit ensures safe and efficient electrical grounding, which is vital for maintaining system integrity and protecting both equipment and users.

Designed specifically for compatibility with Eaton CH and BR series loadcenters, this ground bar kit includes 10 terminals and features a compact profile for easy installation. With a mounting hole distance of 1-3/4 inches and an overall height of 0.75 inches, it fits seamlessly into your loadcenter setup, providing reliable performance in residential and light commercial applications.

Key Features:

• Accessory Type: Ground Bar Kit
• Series Compatibility: CH and BR Loadcenters
• Terminals: 10 Terminal Ground Bar
• Mounting Hole Distance: 1-3/4 inches
• Height: 0.75 inches
• Application: Enhances grounding capacity for electrical safety
• Installation: Easy and secure mounting

The Eaton 10-Terminal Ground Bar Kit is a dependable solution for upgrading or maintaining your loadcenter's grounding system, ensuring safe, code-compliant operation.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - GBK1020

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
