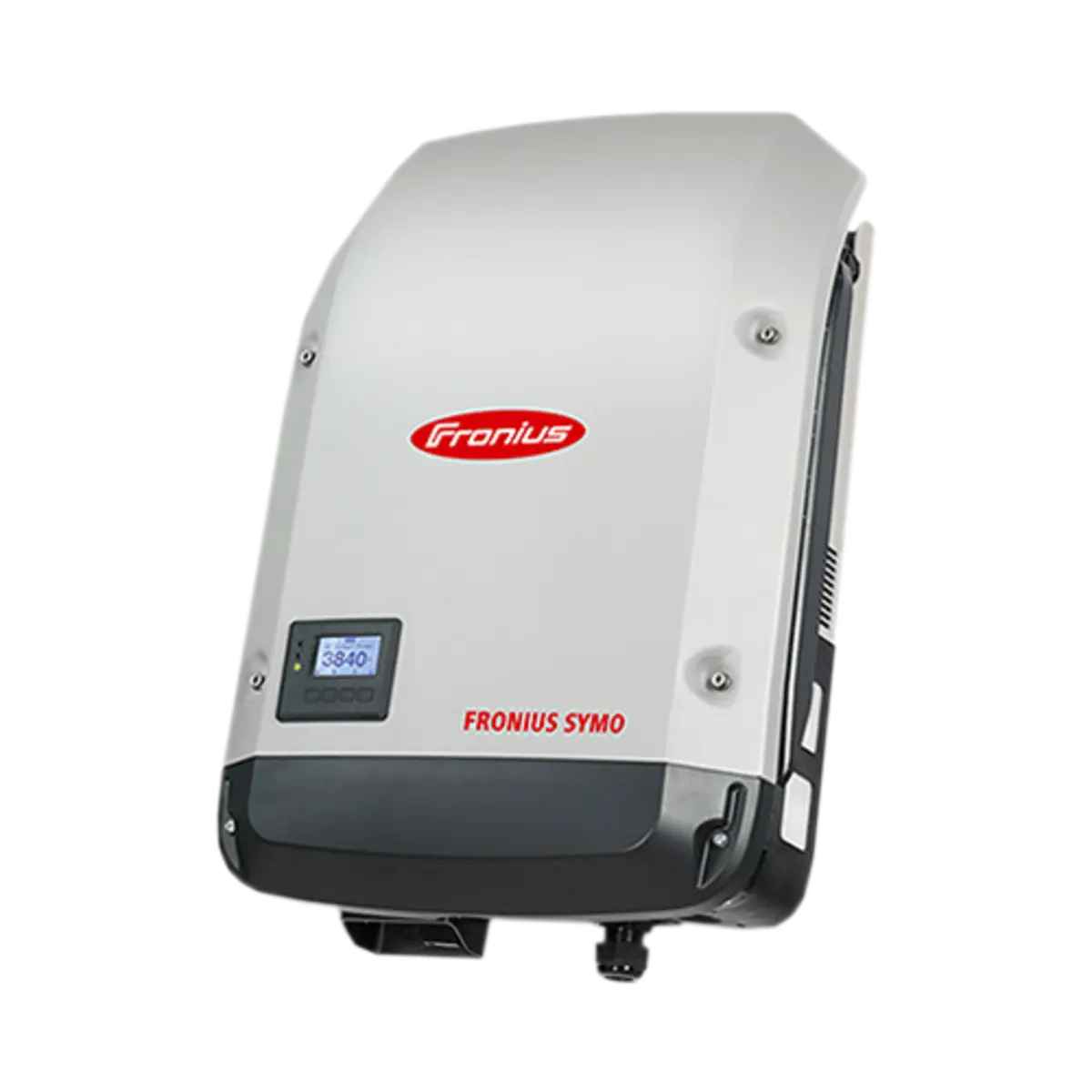

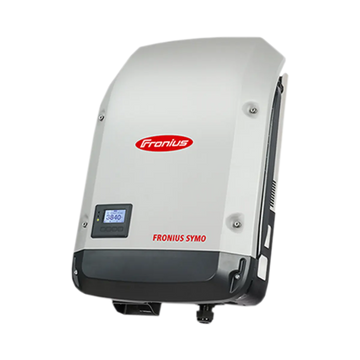

Fronius Symo Advanced Lite FRO-SA-20.0-3-480-L 20kW 480VAC Three Phase String Inverter w/o Data Manager Card
The Symo Advanced is the three-phase inverter for maximum safety, reliability & ROI. Featuring six models ranging from 10 kW to 24 kW, it is ideal for any commercial and industrial application. The Symo Advanced is lightweight and combines high-power density with flexibility to ensure the fastest possible installation for your PV project. The small number of total power conversion electronics adds to the high serviceability from any mounting spot. You get optimized system granularity with a low number of system components.
Specifications
- Type: Transformless Topology
- Height: 28.5 in
- Width: 20.1 in
- Depth: 8.9 in
- Altitude: 2000 m
- Input PV Power Rating: 16-26 kW
- Nominal Input Voltage: 710 V
- Phase: 3
- Number of MPPT: 2
- Output Power: 19995 W
- Output Configuration: 480 V
- Frequency Rating: 60 Hz
- Enclosure Rating/IP Rating: NEMA 4X
-
Standards:
- UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 & Hawaiian Electric Code Rule 14H)
- UL1998 (for functions: AFCI, RCMU & isolation monitoring)
- IEEE 1547-2003
- IEEE 1547a-2014
- IEEE 1547.1-2003
- ANSI/IEEE C62.41
- FCC Part 15 A & B
- NEC 2017 Article 690
- C22.2 No. 107.1-16
- UL1699B Issue 2-2013
- CSA TIL M-07 Issue 1-2013
- UL 37418
-
Warranty: 5 Years
