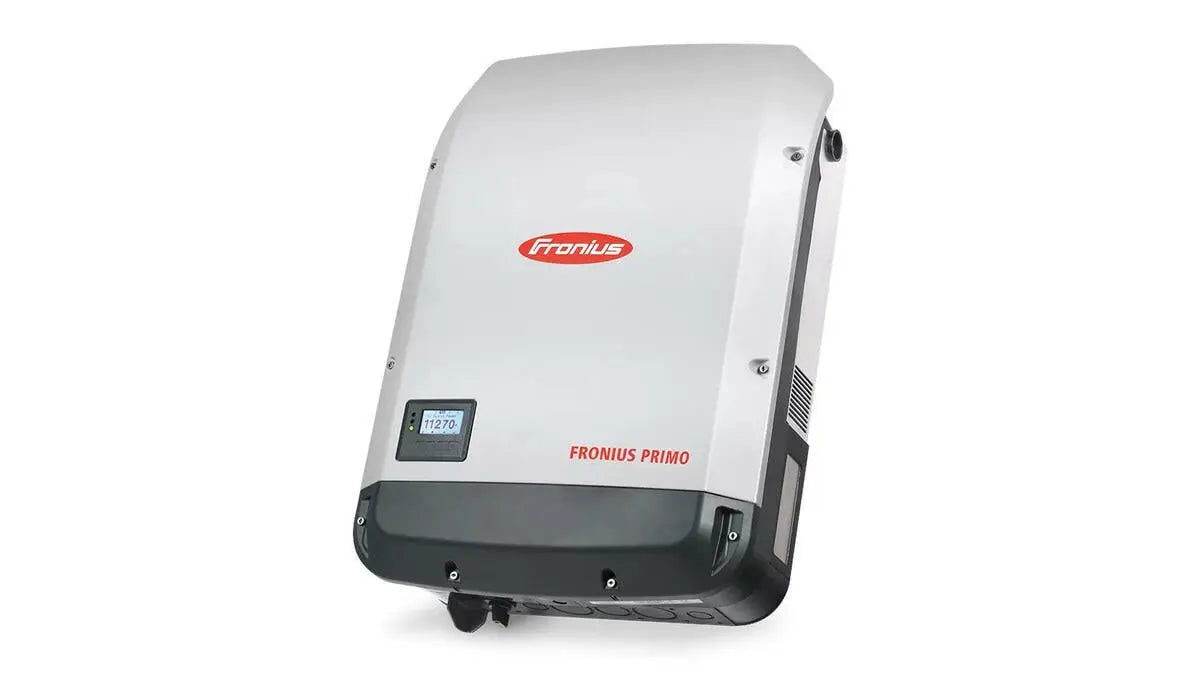

Fronius Primo Lite FRO-P-15.0-1-208-240-L 15kW

With power categories ranging from 3.8 kW to 15.0 kW, the transformerless Fronius Primo is the ideal compact single-phase inverter for residential applications. The sleek design is equipped with the SnapINverter hinge mounting system which allows for lightweight, secure and convenient installation. The Fronius Primo has several integrated features that set it apart from competitors including dual powerpoint trackers, high system voltage, a wide input voltage range, Wi-Fi* and SunSpec Modbus interface, and Fronius' online and mobile monitoring platform Fronius Solar.web. The Fronius Primo also works seamlessly with the Fronius Rapid Shutdown Box for a reliable NEC 2014 690.12 and NEC 2017 690.12(B)(1) solution..

Features

• Compatibility - PC board replacement process
• SnapINverter mounting system
• Wi-Fi® interface
• Design flexibility
• Smart Grid ready
• Arc fault circuit interruption
• 5 Year warranty


Specifications

• Type: Transformless Topology
• Height: 2.37 ft
• Width: 1.67 ft
• Depth: 8.9 in
• Altitude: 4000 m
• Input PV Power Rating: 12-18 kW
• Nominal Input Voltage: 440 V
• Phase: 1
• Number of MPPT: 2
• Output Power: 1500 W at 240 V / 1375 W at 208 V
• Output Configuration: 208/240 V
• Frequency Rating: 60 Hz
• Enclosure Rating/IP Rating: NEMA 4X
• Standards:
  • UL 1741-2010 Second Edition (including UL1741 Supplement SA 2016-09 for California Rule 21 & Hawaiian Electric Code Rule 14H)
  • UL1998 (for functions: AFCI, RCMU & isolation monitoring)
  • IEEE 1547-2003, IEEE 1547.1-2003
  • ANSI/IEEE C62.41
  • FCC Part 15 A & B
  • NEC 2017 Article 690
  • C22. 2 No. 107.1-16
  • UL1699B Issue 2-2013
  • CSA TIL M-07 Issue 1-2013
• Warranty: 5 Years


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Sheet
