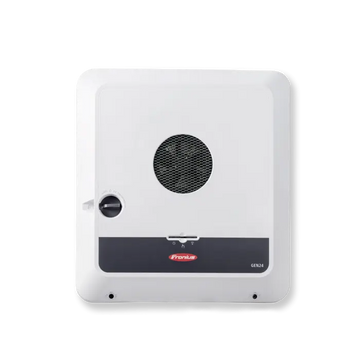

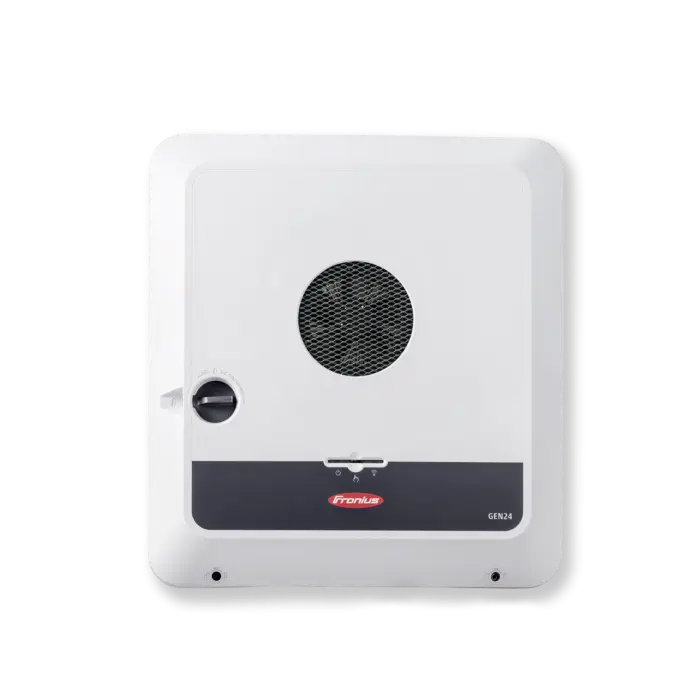

Fronius Primo GEN24 6kW

The Fronius Primo GEN24 6kW (Part #: 4,210,142,800) is a single-phase string inverter for residential PV systems with integrated backup power capability. The Fronius GEN24 maximizes energy production and performance with its SuperFlex Design and Dynamic Peak Manager technology.

The GEN24 can be upgraded to a GEN24 Plus hybrid inverter through a software upgrade (UP.storage), enabling battery connectivity and Full Backup power options.

Key Features

• 6 kW rated output power
• 2 MPPT channels
• Integrated shade management (Dynamic Peak Manager)
• Backup power ready from the start (PV Point)
• SuperFlex Design — supports complex roof situations, strings from 3 modules
• Upgradeable to hybrid inverter via software (UP.storage)
• IP66 weatherproof enclosure
• Indoor and outdoor installation
• Wi-Fi and Ethernet connectivity built-in
• Regulated air cooling

Electrical Specifications

• Rated Output Power: 6,000 W
• Number of MPPTs: 2
• Max Input Voltage: 600 V DC
• Operating Voltage Range: 65–480 V DC
• MPP Voltage Range (at rated power): 230–480 V DC
• Max Short-Circuit Current (MPPT1/MPPT2): 36 A / 19 A
• Max PV Generator Power: 9,000 Wpeak
• Output Voltage: 208/240 VAC, single-phase
• Rated Grid Frequency: 60 Hz

Mechanical Specifications

• Dimensions (H×W×D): 530 × 474 × 165 mm
• Weight: 15.4 kg (34 lb)
• Degree of Protection: IP66
• Cooling: Regulated air cooling
• Ambient Temperature Range: -40°C to +60°C
• Max Altitude: 4,000 m
• Noise Emission: <42 dB(A)

Compliance

UL 1741, IEEE 1547, CA Rule 21, NEC 2017/2020

Warranty

10-year standard warranty (extendable)

Datasheet

Download Fronius Primo GEN24 Datasheet (PDF)
