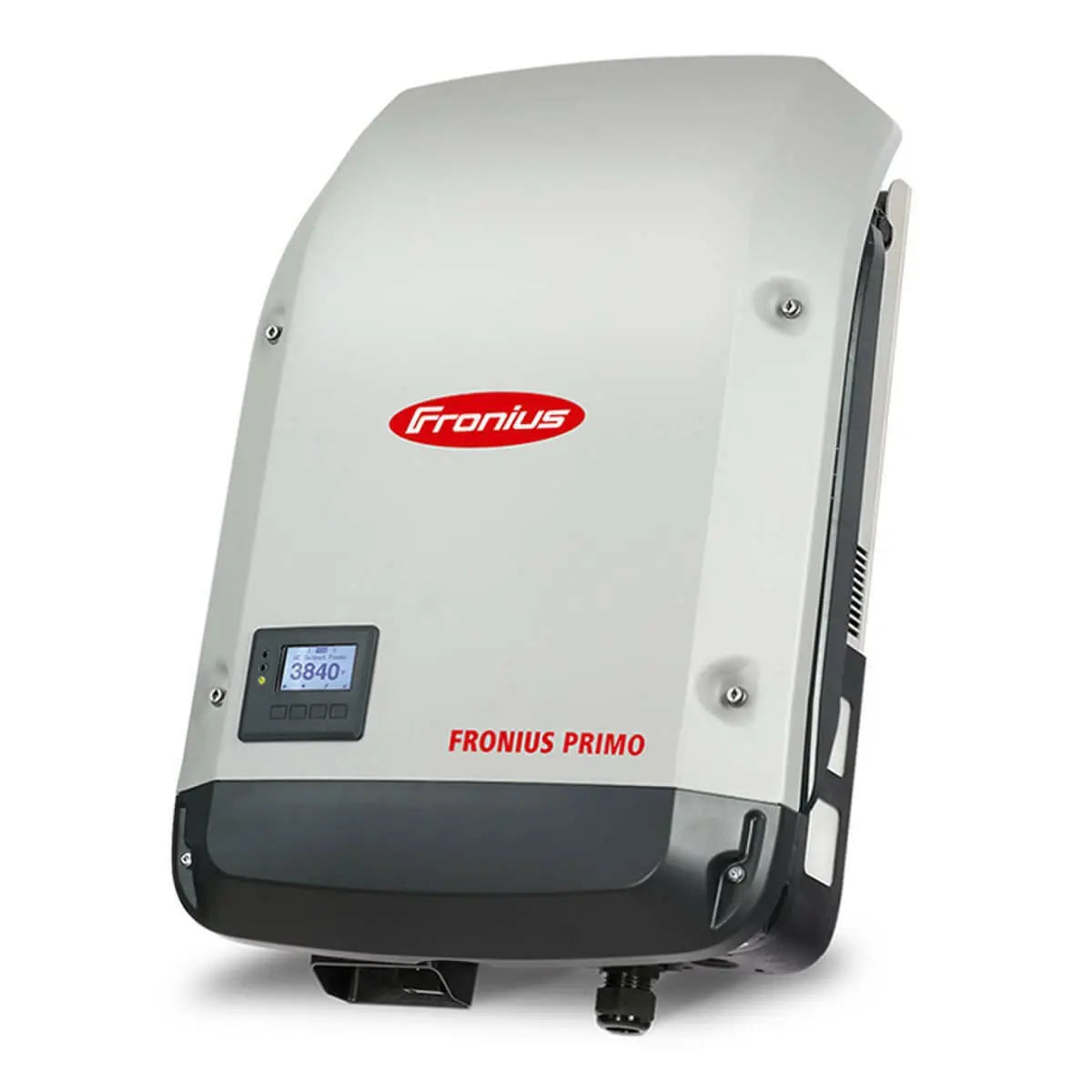

Fronius Primo 208-240 V 4.8-9.3 kW Single Phase String Inverter

The Fronius Primo, with power classes from 3.8 to 15.0 kW, is the ideal residential solar inverter for your unique solar system design. With dual MPPT and a wide voltage window, the Fronius Primo offers design flexibility. The sleek inverter design features the innovative SnapINverter hinge mounting system and Wi-Fi enabled for easy commissioning and monitoring. Many other features come standard in the Fronius Primo, including industry-leading Arc Fault Circuit Interruption, and free lifetime monitoring through Fronius Solar.web. The SnapINverter line is NEC 2014 compliant with the easy implementation of the Fronius Rapid Shutdown Box and has the technology for future code and consumer demands while offering field serviceability for the most sustainable option.

Features

• Compatibility - PC board replacement process. Smart grid ready
• Safety - Arc Fault Circuit Interruption. SuperFlex Design
• User friendly - Wi-FI interface
• SuperFlex design
• SnapINverter mounting system


Specifications

• Type: Single-Phase
• Series: FRO-P
• Overall Length: 24.7 in
• Overall Width: 16.9 in
• Overall Depth: 9.1 in
• Input Voltage: 420 V
• Output Voltage: 208-240 V
• Power Rating: 5 kW
• Input Current: 36 A
• Amperage Rating: 24/20.8 A
• Efficiency: 96.9/95.5 %
• Frequency Rating: 45-55/50-66 HZ
• Cooling Type: Variable Speed Fan
• Power Factor: 0.85-1
• Enclosure Rating/IP Rating: NEMA 4X
• Mounting Type: Snapinverter Hinge
• Connection Type: Screw Terminal
• Temperature Rating: -40 to 131 deg F


Documents

• Specification Sheet
• Instruction/Installation Manual
