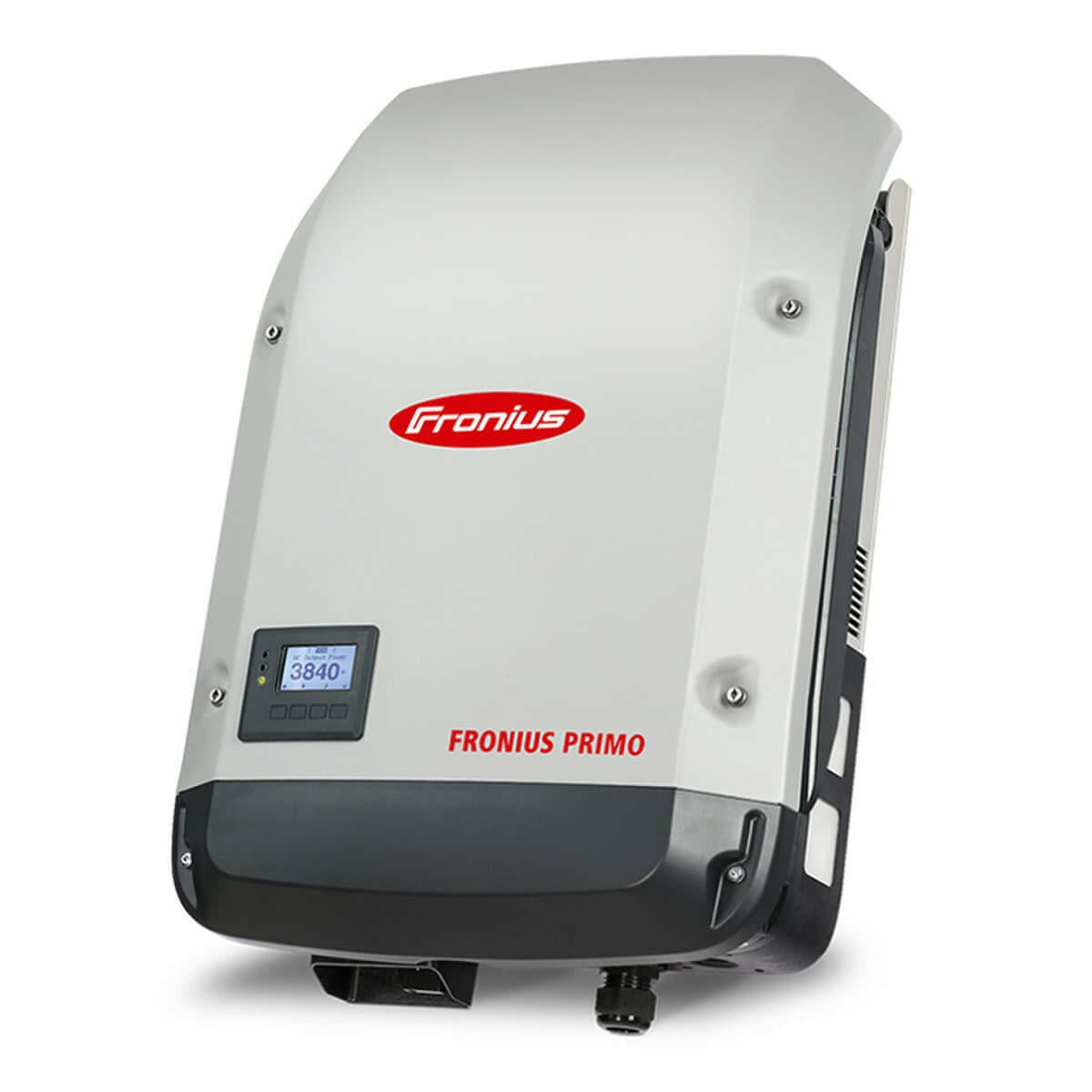

Fronius FRO-P Series 208-240 V 7.6 kW Variable Speed Fan Single-Phase Primo Lite String Inverter

Fronius Primo Lite Inverter: Efficient Energy Conversion

The Fronius Primo, with power classes from 3.8 to 15.0 kW, is the ideal residential solar inverter for your unique solar system design. With dual MPPT and a wide voltage window, the Fronius Primo offers design flexibility. The sleek inverter design features the innovative SnapINverter hinge mounting system and Wi-Fi enabled for easy commissioning and monitoring. Many other features come standard in the Fronius Primo, including industry-leading Arc Fault Circuit Interruption, and free lifetime monitoring through Fronius Solar.web. The SnapINverter line is NEC 2014 compliant with the easy implementation of the Fronius Rapid Shutdown Box and has the technology for future code and consumer demands while offering field serviceability for the most sustainable option.

Features

• Compatibility - PC board replacement process. Smart grid ready
• Safety - Arc Fault Circuit Interruption. SuperFlex Design
• User friendly - Wi-FI interface
• SuperFlex design
• SnapINverter mounting system


Specifications

• Type: Single-Phase
• Series: FRO-P
• Overall Length: 24.7 in
• Overall Width: 16.9 in
• Overall Depth: 9.1 in
• Input Voltage: 420 V
• Output Voltage: 208-240 V
• Power Rating: 7.6 kW
• Input Current: 36 A
• Amperage Rating: 36.5/31.7 A
• Efficiency: 96.9/96%
• Frequency Rating: 45-55/50-66 Hz
• Cooling Type: Variable Speed Fan
• Power Factor: 0.85-1
• Enclosure Rating/IP Rating: NEMA 4X
• Mounting Type: Snapinverter Hinge
• Connection Type: Screw Terminal
• Temperature Rating: -40 to 131°F


Documents

• Specification Sheet
• Instruction/Installation Manual

Powerful Performance and Efficiency

The Fronius Primo Lite Inverter is designed to deliver efficient energy conversion with a power output of 7.6 kW. This inverter optimizes the performance of solar panels, allowing homeowners to maximize energy production. It features advanced technology that improves overall efficiency and helps users save on electricity bills. Because of its ability to adjust power output according to energy demands, this inverter ensures that your home remains powered effectively, even during peak hours.

Variable Speed Fan Technology

Unlike traditional inverters, the Fronius Primo Lite incorporates variable speed fan technology. This innovation not only enhances cooling efficiency but also reduces noise levels during operation. Users can appreciate a quiet environment while the inverter works continuously to convert solar energy into usable power. Moreover, this feature contributes to the long-term reliability of the inverter, ensuring that it operates optimally even in varying environmental conditions.

Single-Phase Installation and User-Friendly Interface

The design of the Fronius Primo Lite Inverter allows for easy single-phase installation, making it a convenient choice for residential use. The user-friendly interface simplifies monitoring and management, allowing homeowners to track their energy usage effectively. Additionally, the integrative features assist users in understanding their solar energy system better. So, whether you're upgrading your existing setup or installing new solar panels, the Primo Lite Inverter offers a practical solution to meet your energy needs.
