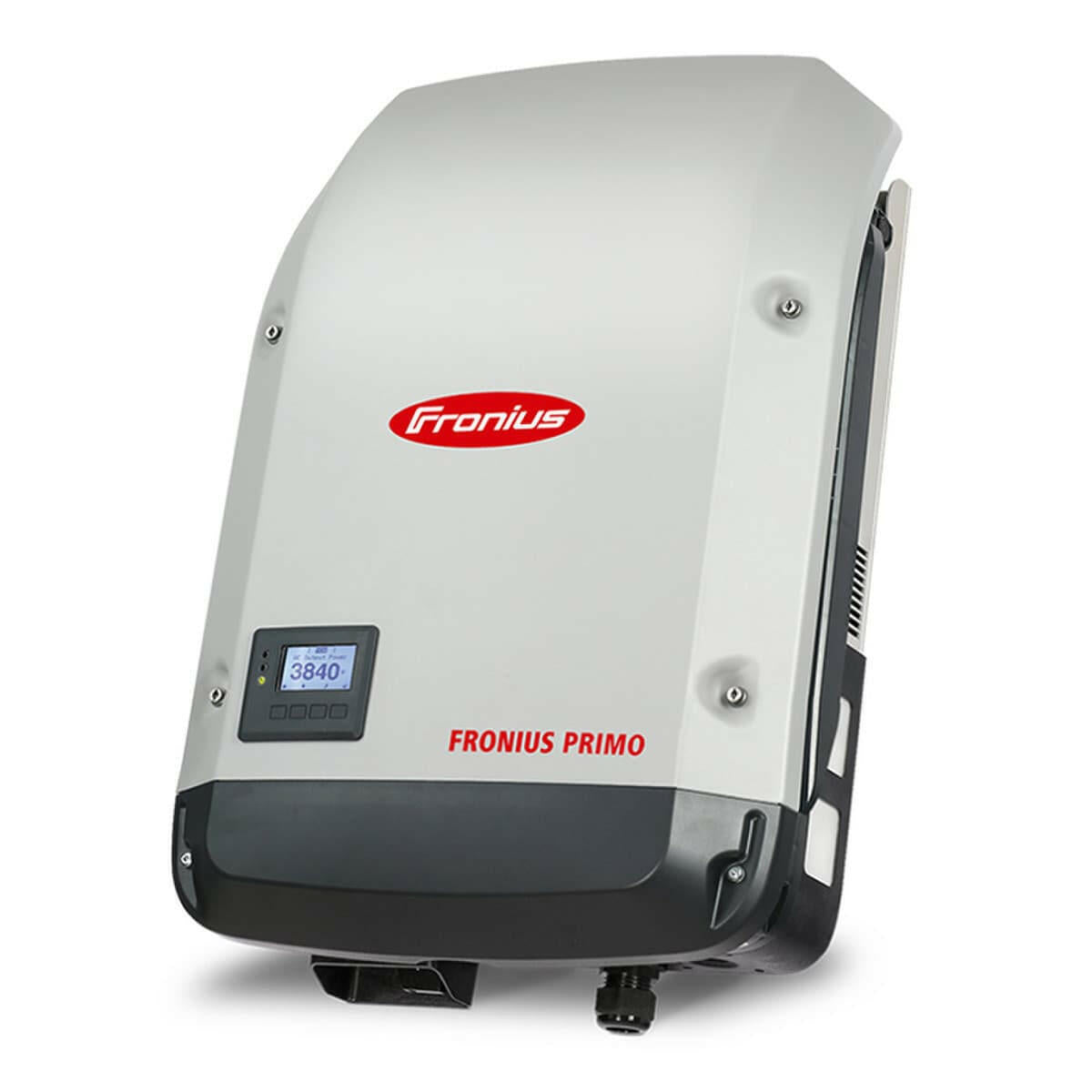

Fronius FRO-P Series 208-240 V 12.5 kW Variable Speed Fan Single-Phase Primo Lite String Inverter

Fronius FRO-P Series 12.5 kW Inverter: Efficient Solar Performance

The Fronius Primo, with power classes from 3.8 to 15.0 kW, is the ideal residential solar inverter for your unique solar system design. With dual MPPT and a wide voltage window, the Fronius Primo offers design flexibility. The sleek inverter design features the innovative SnapINverter hinge mounting system and Wi-Fi enabled for easy commissioning and monitoring. Many other features come standard in the Fronius Primo, including industry-leading Arc Fault Circuit Interruption, and free lifetime monitoring through Fronius Solar.web. The SnapINverter line is NEC 2014 compliant with the easy implementation of the Fronius Rapid Shutdown Box and has the technology for future code and consumer demands while offering field serviceability for the most sustainable option.

Features

• Compatibility - PC board replacement process. Smart grid ready
• Safety - Arc Fault Circuit Interruption. SuperFlex Design
• User friendly - Wi-FI interface
• SuperFlex design
• SnapINverter mounting system


Specifications

• Type: Single-Phase
• Series: FRO-P
• Overall Length: 28.5 in
• Overall Width: 20.1 in
• Overall Depth: 8.9 in
• Input Voltage: 655 Vdc
• Output Voltage: 208-240 V
• Power Rating: 12.5 kW
• Input Current: 51 A
• Amperage Rating: 60.1/52.1 A
• Efficiency: 96/96.5%
• Frequency Rating: 45-55/50-66 Hz
• Cooling Type: Variable Speed Fan
• Power Factor: 0-1
• Enclosure Rating/IP Rating: NEMA 4X
• Mounting Type: Snapinverter Hinge
• Connection Type: Screw Terminal
• Temperature Rating: -40 to 140°F


Documents

• Specification Sheet
• Instruction/Installation Manual

Overview of the Fronius FRO-P Series

The Fronius FRO-P Series 208-240 V 12.5 kW Variable Speed Fan Single-Phase Primo Lite String Inverter is a remarkable choice for those embracing solar technology. With its advanced design, this inverter not only converts solar energy into usable power efficiently but also ensures your home operates smoothly and sustainably. Because of its variable speed functionalities, it adjusts the fan speed, which means reduced noise levels and improved performance, making it suitable for residential applications.

Key Features and Benefits

This powerful inverter boasts several industry-leading features, including high efficiency, reliability, and a user-friendly interface. The inverter's built-in monitoring capabilities provide real-time performance data, allowing homeowners to track their energy production easily. Additionally, the robust construction ensures longevity, which is crucial for long-term energy investments. Therefore, choosing the Fronius inverter can lead to significant energy savings and a lower carbon footprint.

Why Choose the Fronius FRO-P Series?

When selecting an inverter for your solar power system, the Fronius FRO-P Series stands out due to its exceptional reliability and efficiency. It is designed to handle various energy demands while operating flawlessly in different environmental conditions. This makes it a smart investment for homeowners looking to transition to renewable energy. So, whether you are upgrading your current system or installing a new one, the Fronius FRO-P inverter is an excellent choice for maximizing your solar potential.
