Fluke SOL-DMM87V-KIT - Solmetric PV Analyzer High Efficiency Curve Tracer DMM and Clamp Kit
Equip your solar inspection workflow with this ultimate toolkit featuring advanced I-V curve tracing, accurate electrical diagnostics, and seamless data capture.

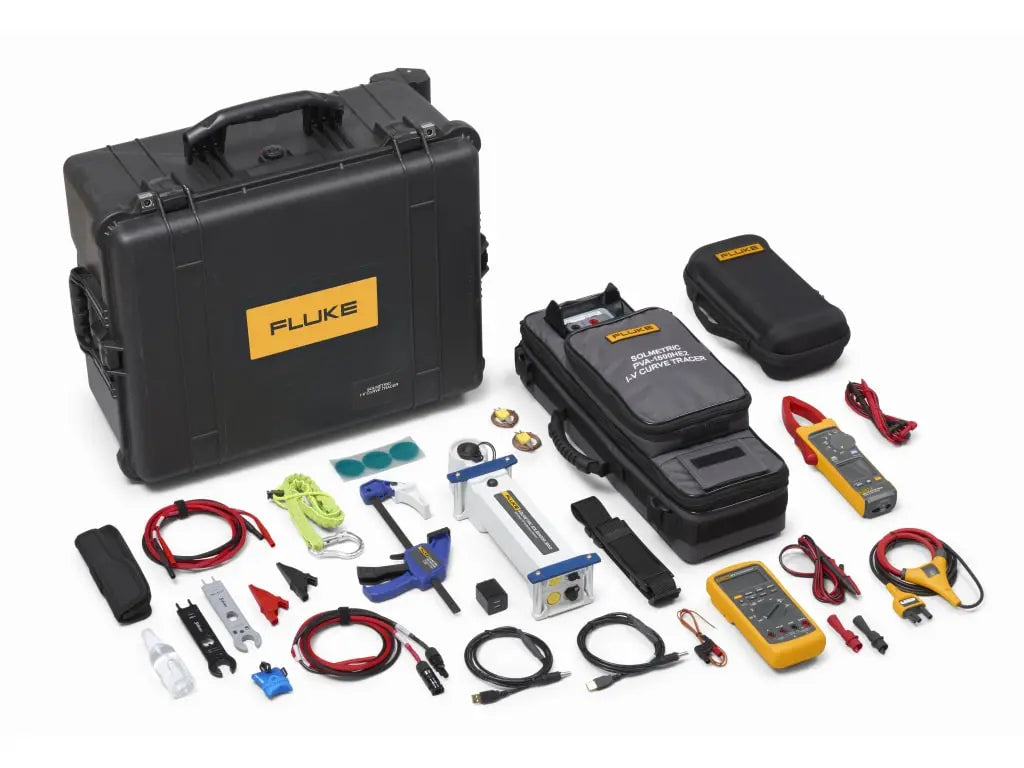

What's Included
-

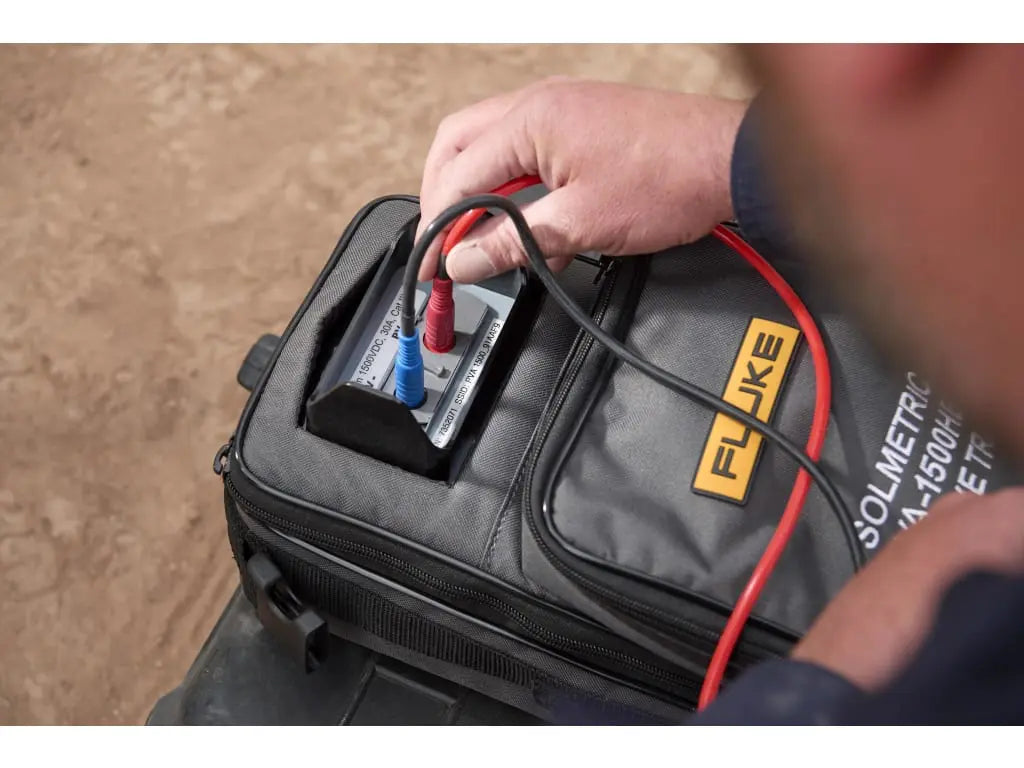

Solmetric PVA-1500HE2 I-V Curve Tracer — Designed for high-efficiency PV modules (≥ 19%), measures and displays curves up to 1500 V and 30 A, with a rapid sweep-to-sweep delay of 9 seconds enabling up to 3.5 MW of measurements per hour.
-

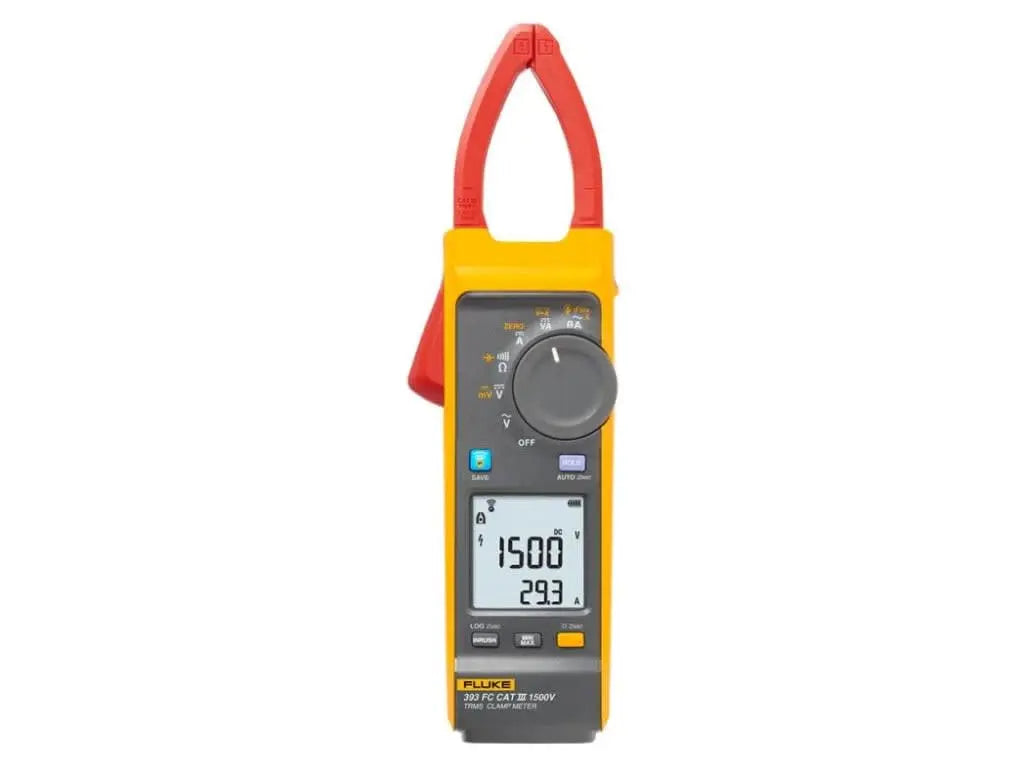

Fluke 393 FC Solar Clamp Meter — True-RMS, CAT III 1500 V DC/1000 V AC clamp meter for safe, accurate DC current and voltage readings.
-

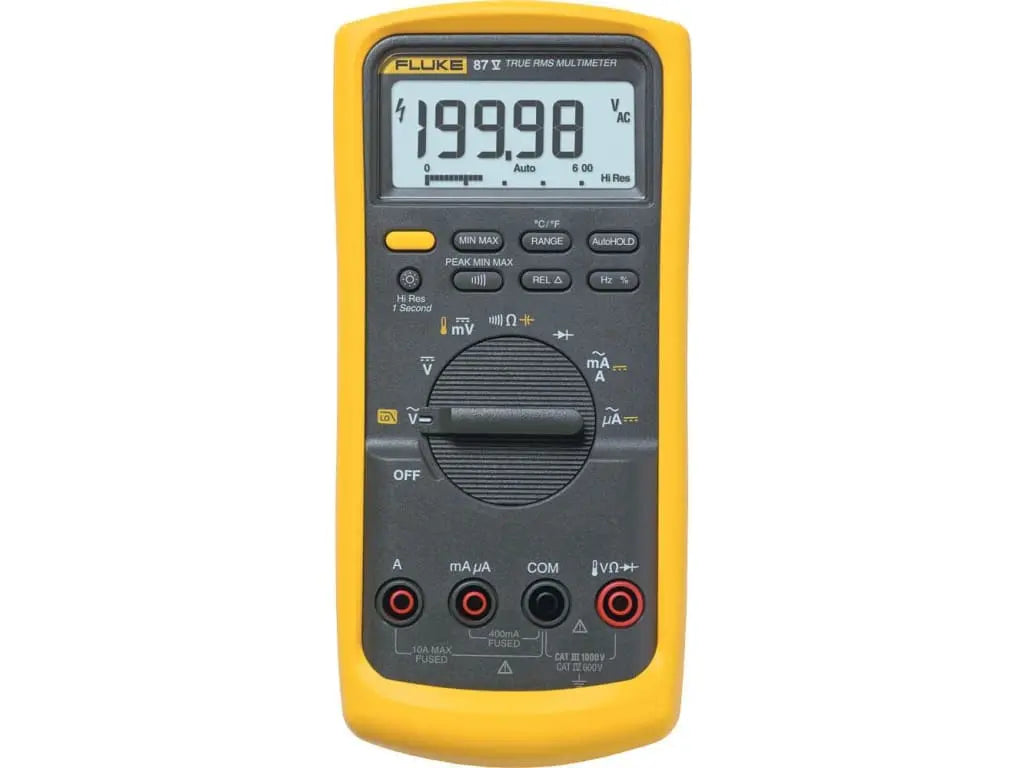

Fluke 87 V Industrial Multimeter — Rugged DMM delivering precise measurements across AC/DC voltage, current, resistance, capacitance, and more.
-

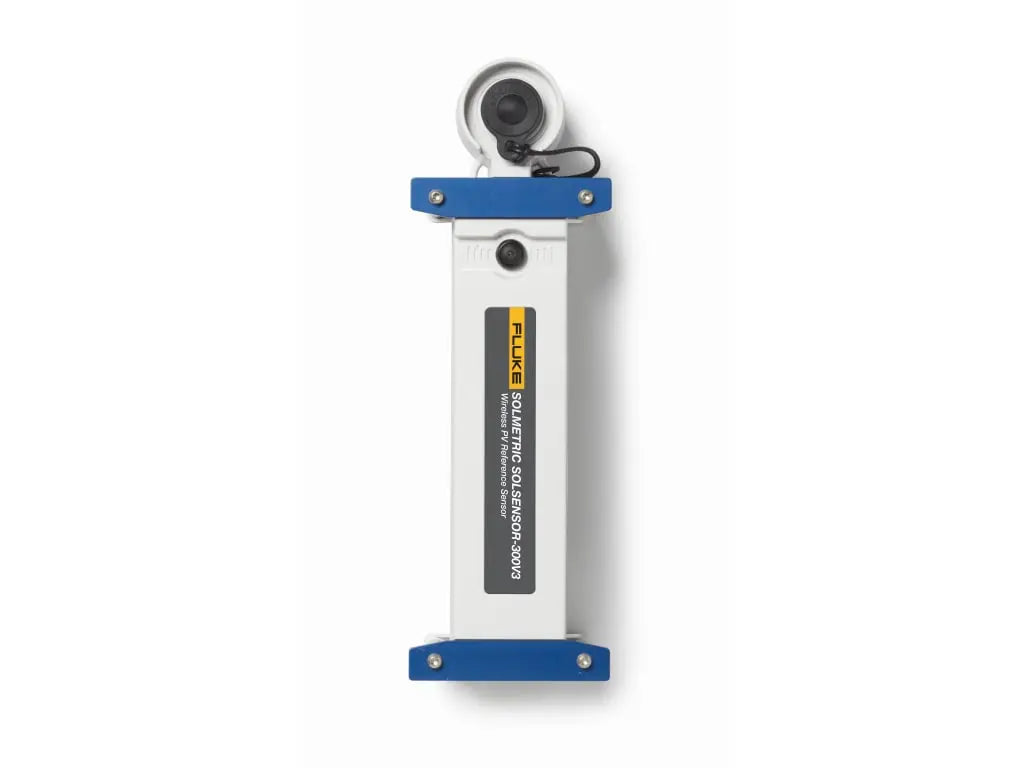

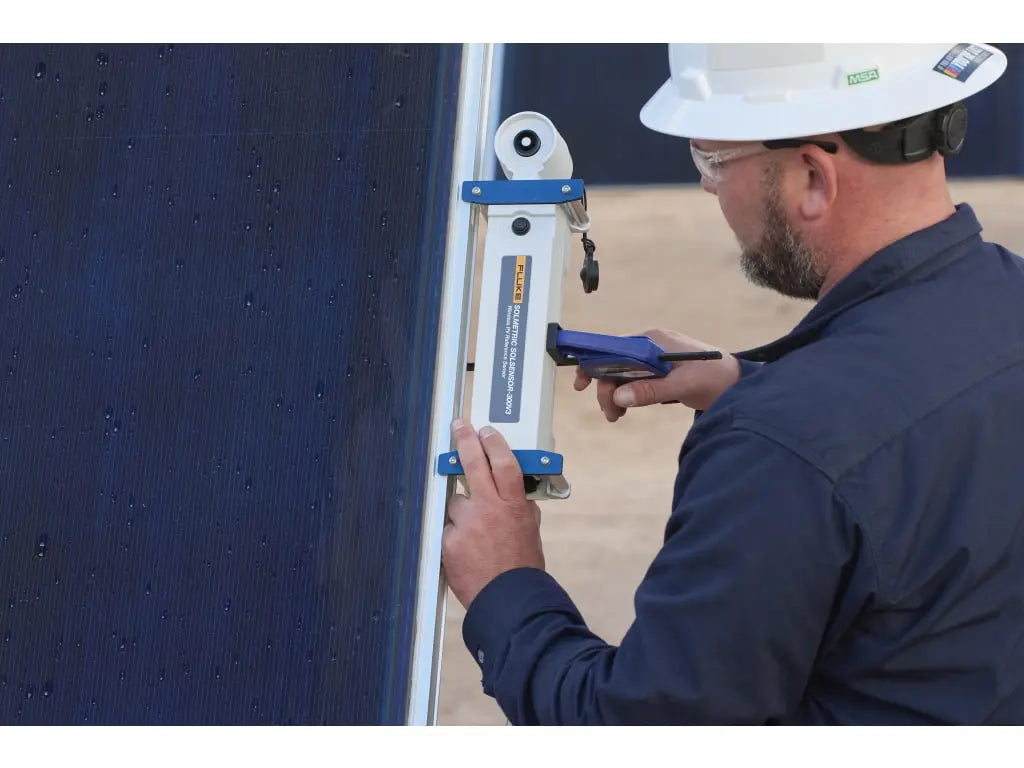

SolSensor™ Module — Wireless sensor that attaches to panel frame, providing irradiance, temperature, and tilt data. Enables predictive I-V modeling and normalization to standard test conditions.
Core Advantages
-
Ultra-High Throughput — 9-second sweep intervals allow field technicians to cover large systems efficiently, even in high-temperature environments.
-
Comprehensive I-V Analysis — Generates key metrics like Voc, Isc, Vmp, Imp, Pmax, fill factor, and performance factor.
-
Up-to-Date Module Database — Includes a continually updated database of over 70,000 PV modules for precise performance modeling.
-
Advanced Wireless Data Workflow — Wi-Fi interface enables seamless integration with tablets or laptops and supports field firmware updates
-
All-Weather Performance — Built rugged for tough job sites; performs efficiently even when ambient temperatures are high
-
Fast, Automated Reporting — Use Fluke’s PVA app and Excel-based Data Analysis Tool to convert raw curves into actionable reports and diagnostics
Technical Highlights at a Glance
| Feature | Specification |
|---|---|
| Voltage Range | 20 – 1500 V DC |
| Max Current | 30 A DC (all module types) |
| Accuracy (Voltage) | ±(0.5% + 0.25 V) |
| Accuracy (Current) | ±(0.5% + 0.04 A) |
| Power Accuracy | ±(1.7% + 1 W) |
| Trace Points | 100 or 500 selectable |
| Sensor Accuracy | Irradiance ±2%, Temperature ±2 °C, Tilt ±2° |
| Wireless Range | ~100 m line of sight |
| Safety Rating | CAT III 1500 V, CE/UKCA/TÜV compliant |
| Cooling Performance | Up to 400 sweeps/hr (25 °C ambient with 9 s delay) |
Why It Stands Out
The Fluke SOL-DMM87V-KIT is engineered for solar professionals who require rapid, high-precision diagnostics in the field. Its combination of smart I-V analysis, wireless sensor data, and trusted Fluke diagnostic tools (multimeter and clamp meter) ensures superior uptime, safety, and compliance for utility and commercial PV systems.
Document: Specification Sheet
