Fluke 393-FC-PVLEAD Solar Test Kit — High-Voltage DC Precision Bundle

Fluke 393-FC-PVLEAD Solar Test Kit — High-Voltage DC Precision Bundle

The Fluke 393‑FC‑PVLEAD combines Fluke’s industry-leading 393 FC True‑RMS clamp meter with dedicated Pomona PVLEAD1 and PVLEAD3 solar test lead sets. Built for solar installation and maintenance professionals working in high‑voltage DC environments (up to 1500 V), it delivers safety, flexibility, and measurement accuracy—whether you’re testing modules, strings, or power systems up to 1500 V DC

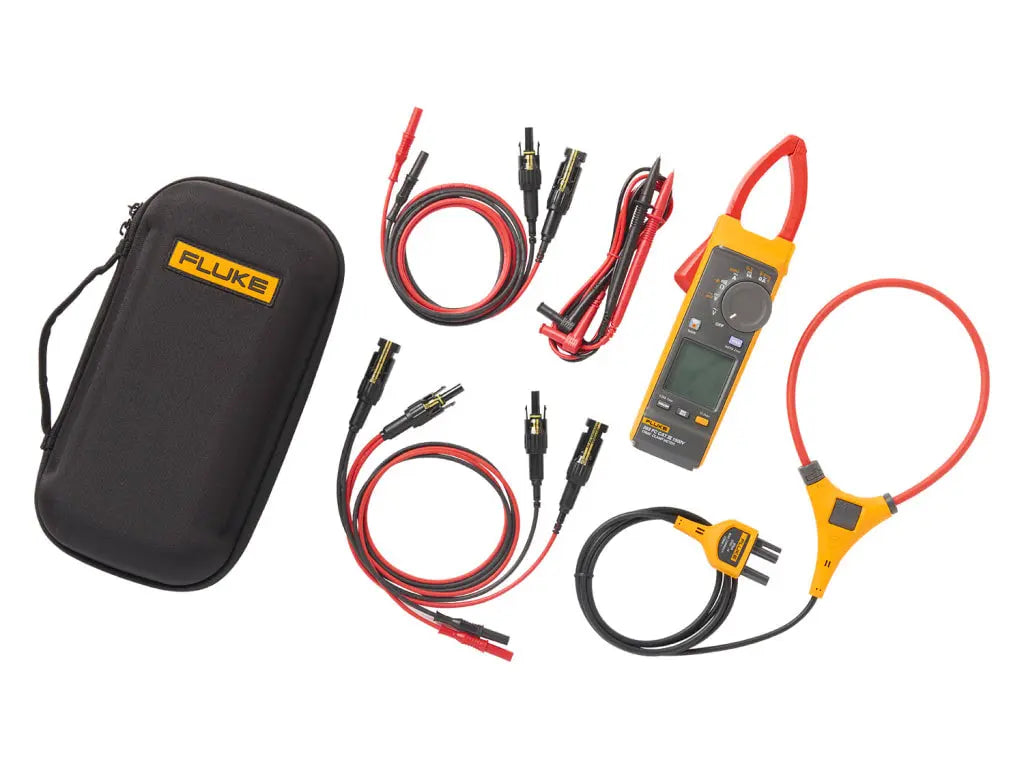

What’s In the Kit

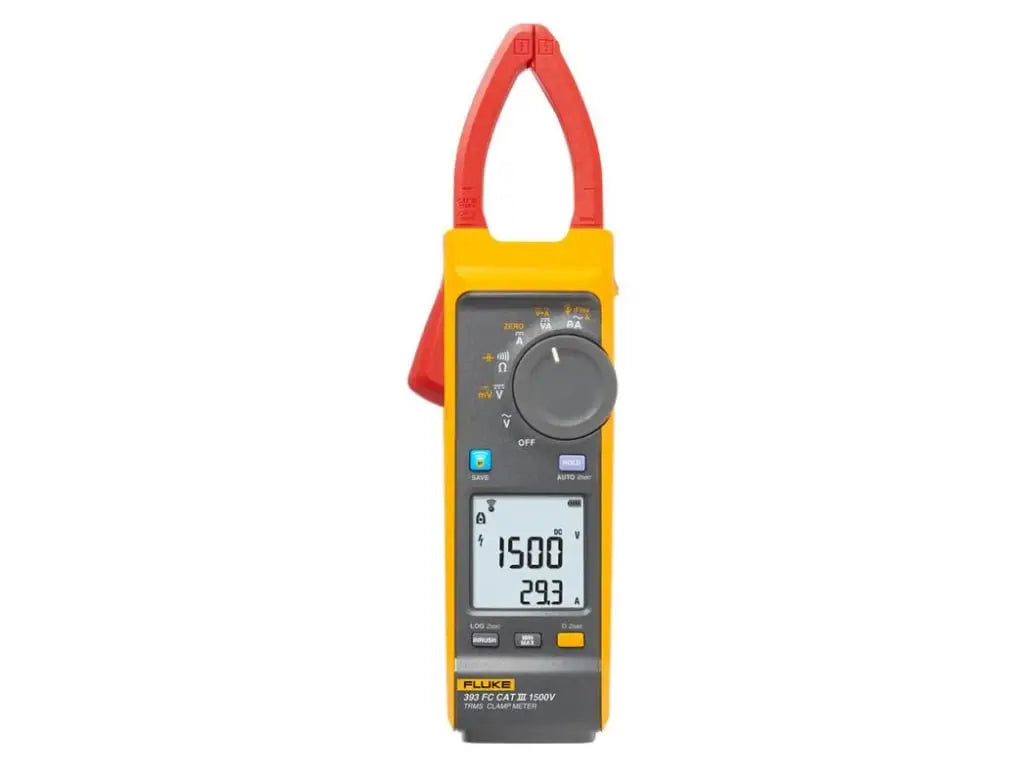

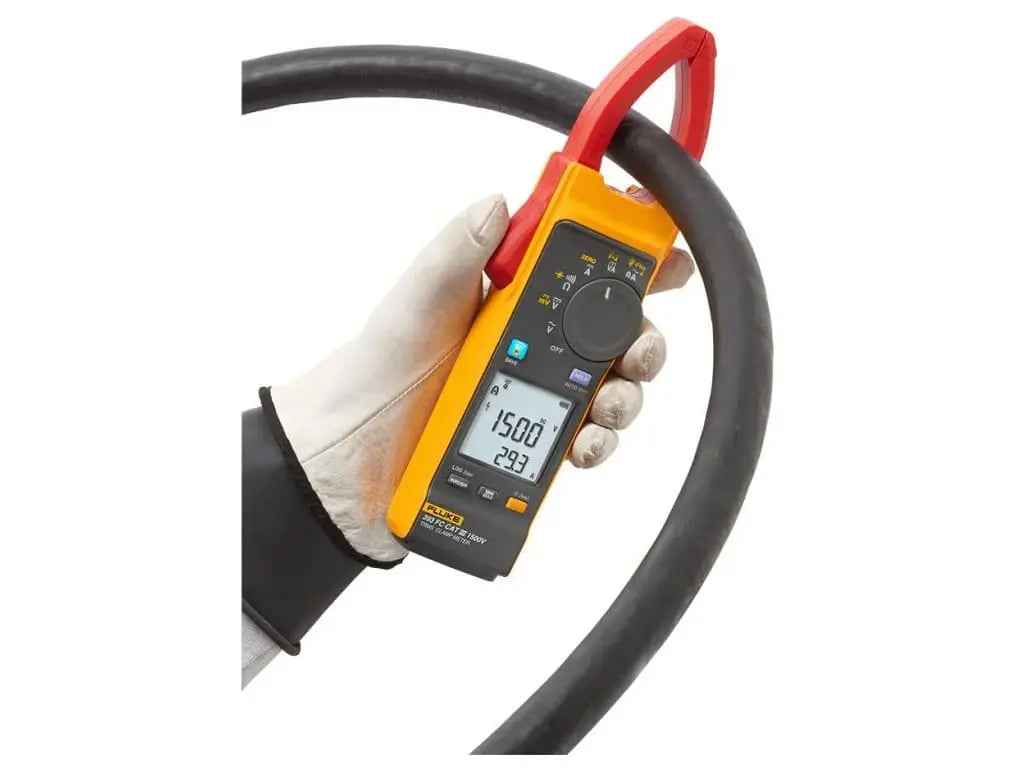

• Fluke 393 FC True‑RMS Clamp Meter with iFlex Probe

  • Voltage measurement to 1500 V DC (1000 V AC), current up to 999.9 A via clamp jaw, and up to 2500 A AC with the included iFlex probe

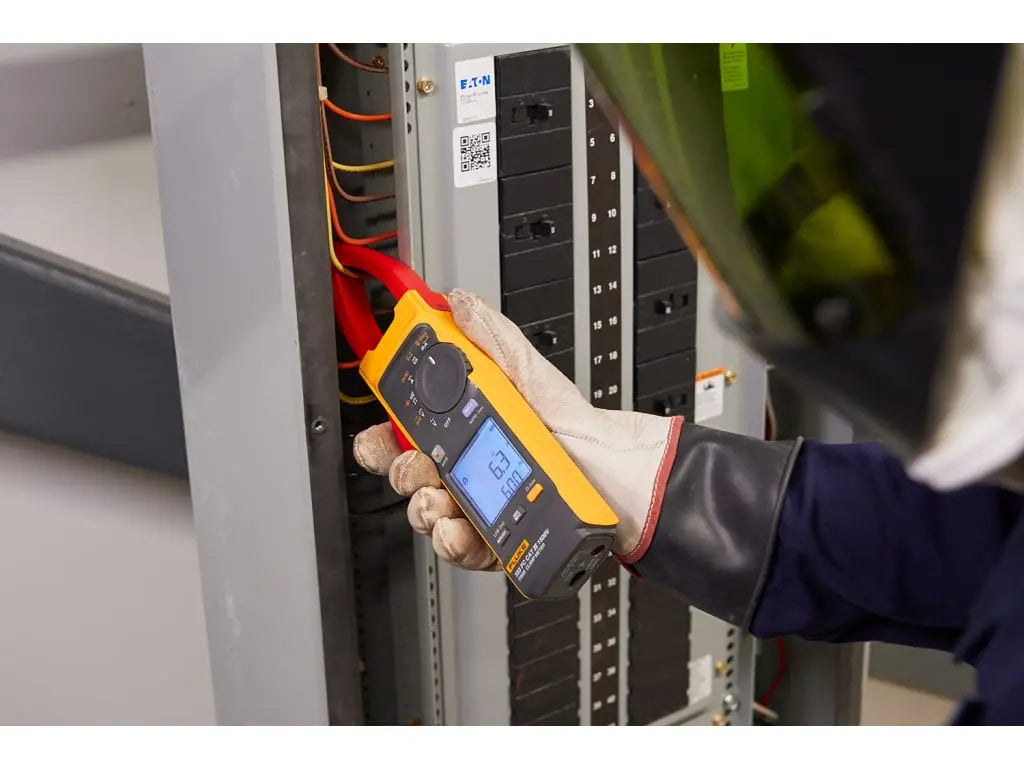

  • Thin jaw design allows access within tight combiner boxes

  • IP54-rated for dust and splash resistance ideal for fieldwork

  • Dual-display meter shows voltage and current simultaneously

  • Audio polarity, continuity, resistance, and capacitance functions

  • Integrated Fluke Connect wireless logging and reporting capabilities

• Pomona PVLEAD1 MC4 to 4 mm Banana Test Lead Set

  • Red (male MC4) and black (female MC4) leads, each ~60″ long, terminating in insulated 4 mm banana plugs

  • Nickel-plated contacts, CAT III 1000 V / CAT IV 600 V, rated to 20 A per IEC/EN 61010‑031

• Pomona PVLEAD3 MC4 Solar Clamp Test Lead Set

  • Clamp-style MC4 leads with inline capability—enables safe measurement without interrupting power flow

  • Designed for direct connection to clamp-meter inputs, preserving module output while diagnosing live systems

• Accessories

  • Magnetic hanging strap (TPAK), premium carrying case, test leads with safety caps, batteries pre-installed, 3-year Fluke warranty

Key Features & Benefits

• Max Safety in Harsh PV Environments — Rated CAT III 1500 V DC, enabling safe testing on live solar circuits without risk of electrical hazards.

• Extended Current Measurement — Clamp and iFlex probe extend AC current range to 2500 A—useful for large conductors or parallel strings.

• Non‑Invasive Live Testing — PVLEAD3 leads allow voltage/current measurements without system shutdown, preserving grid connection.

• Fluke Connect Compatible — Stream and store live data on mobile devices, generate reports, and maintain traceable records.

• Rugged & Field-Proven — IP54-rated housing and thin clamp jaw suit outdoor PV arrays, combiner boxes, and tight wire runs.

Technical Summary

Ideal for

• Installation & Commissioning — Quickly validate PV module voltage and string current under live load.

• Troubleshooting & Maintenance — Test individual panels or rows without interrupting power generation.

• Safety and Compliance — High voltage DC safety rating, audio polarity checks, continuity and resistance all contribute to safe solar testing protocols.

Document:

• PVLEAD3 - Data Sheet
• 393 FC - Data Sheet
• PVLEAD1 - Data Sheet

Comprehensive Testing Capabilities

The Fluke 393-FC-PVLEAD

Solar Test Kit offers top-notch testing capabilities specifically designed for high-voltage DC applications. This kit combines precise measurement tools with advanced features that ensure accurate readings. It allows technicians to confidently diagnose solar panel performance, maximizing energy output and efficiency. Furthermore, the kit includes essential accessories for various testing scenarios so users can conduct both performance and safety evaluations seamlessly.

User-Friendly Design

Engineered with user experience in mind, the Fluke 393-FC-PVLEAD

Solar Test Kit boasts a clear display and intuitive interface. Users can easily navigate through measurement settings, which enhances overall efficiency during testing. The compact and portable design means you can take it anywhere, making it a perfect companion for both on-site assessments and laboratory work. For individuals who are new to solar testing, the detailed manual and quick-start guide provide essential insights.

Durability and Reliability

One of the standout features of the Fluke 393-FC-PVLEAD

is its robust construction, ensuring durability even in the most demanding environments. Because solar installations often encounter harsh conditions, having a reliable piece of equipment is crucial. This test kit comes with a protective case that prevents damage while on the road. So, whether you're conducting routine maintenance or troubleshooting solar energy systems, this kit is built to last and perform under pressure.
