FJHMVD12R - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

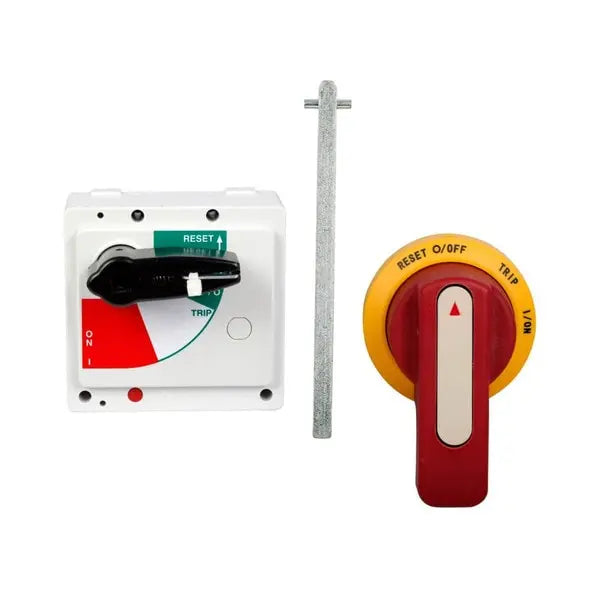

The Eaton Molded Case Circuit Breaker Accessory Handle Mechanism is a universal rotary through-the-door handle mechanism designed to provide safe, convenient operation of circuit breakers in panelboard and switchboard enclosures. This red handle accessory is compatible with JG-frame and J-K frame Series G breakers, offering enhanced control and lockout capabilities. With a 12-inch shaft, it allows for easy operation while maintaining secure door integrity.

Key Features:

• Accessory Type: Universal Rotary Through-the-Door Handle Mechanism
• Compatible Frames: JG, J-K Frame (Series G)
• Color: Red
• Shaft Length: 12 inches
• Function: Provides external breaker operation through the door
• Application: Suitable for molded case circuit breaker installations
• Safety: Supports lockout/tagout procedures for added safety

This Eaton Handle Mechanism ensures reliable and ergonomic operation of circuit breakers, making it an essential accessory for maintaining safety and compliance in electrical distribution systems.
