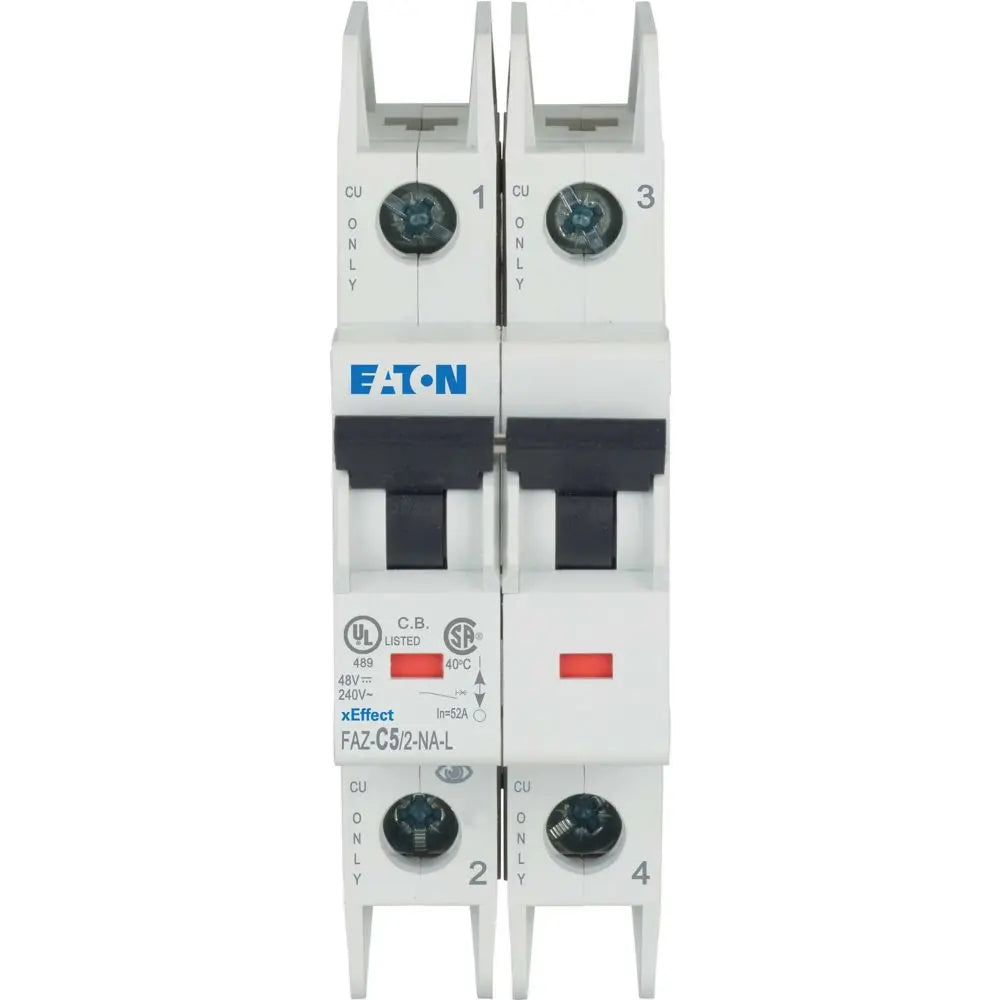

FAZ-C5/2-NA - Faz-Na Ul 489 MCB 2P 5A C Curve

The FAZ-NA UL 489 MCB 2P 5A C Curve is a compact and dependable miniature circuit breaker designed to protect electrical circuits from overloads and short circuits. With a 2-pole configuration and a 5-ampere rating, it is well-suited for control circuits, lighting, and other low-current industrial or commercial applications.

Featuring a C Curve tripping characteristic, this breaker is ideal for general-purpose circuits with moderate inrush currents, such as resistive and inductive loads. Its UL 489 certification ensures it meets North American safety standards for use in branch circuit protection and panelboards.

Key Features:

• Breaker Type: Miniature Circuit Breaker (MCB), UL 489 Listed
• Poles: 2-Pole
• Current Rating: 5 Amps
• Tripping Curve: C Curve – suitable for circuits with moderate inrush currents
• Voltage Rating: 480Y/277V AC
• Mounting: DIN rail mount for quick and secure installation
• Application: Ideal for control panels, industrial machinery, and branch circuit protection
• Standards Compliance: UL 489, CSA C22.2, and IEC 60947-2 certified
• Design: Compact modular form for efficient use of panel space

The FAZ-NA 2P 5A C Curve MCB offers reliable, code-compliant protection for a wide range of applications, making it a trusted solution in industrial and commercial electrical systems.

Documents:

Catalogs
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1

Specifications and datasheets
Eaton Specification Sheet - FAZ-C5/2-NA
