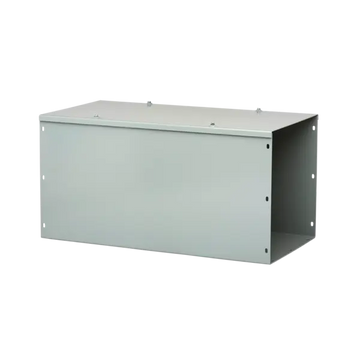

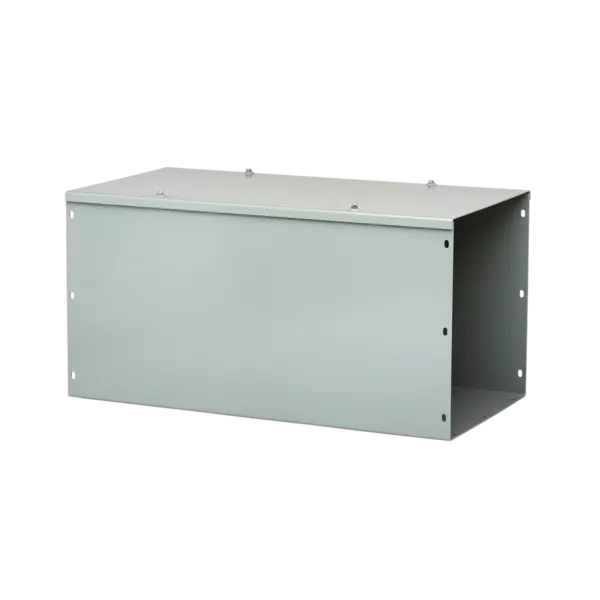

F66G24 - Lay-In Wireway

The Lay-In Wireway is designed for secure and organized routing of electrical cables in industrial and commercial applications. Constructed from durable steel, the wireway features a gray polyester powder paint finish, providing excellent protection against corrosion and wear. With a hinged cover for easy access, it ensures quick installation and maintenance of electrical wiring. This wireway has an overall height of 6 inches, length of 24 inches, and width of 6 inches, offering sufficient space for housing multiple cables. Weighing 43.52 lbs, it is built for heavy-duty applications where strength and durability are essential.

Key Features:

• Product Type: Lay-In Wireway
• Material: Steel with gray polyester powder paint finish for corrosion resistance
• Cover Type: Hinged cover for easy access and maintenance
• Dimensions: 6 inches (Height) x 24 inches (Length) x 6 inches (Width)
• Weight: 43.52 lbs
• Application: Suitable for routing and protecting electrical cables in industrial and commercial environments
• Finish: Gray polyester powder paint for enhanced durability and weather resistance

The Lay-In Wireway is an ideal solution for managing electrical wiring in a controlled and safe manner, offering long-lasting protection and ease of use in demanding electrical systems.

Documents:

2D DXF
Straight Section, Lay-in Hinged-Cover, Type 1 2D DXF CAD File

3D Step
F66G24 3D Step CAD File
