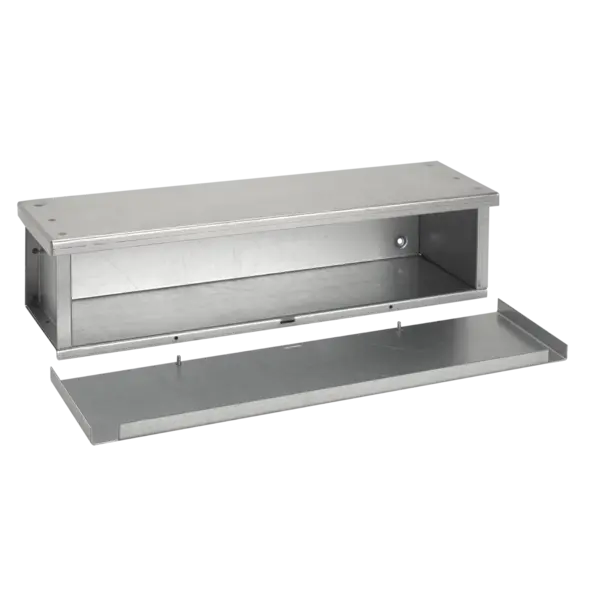

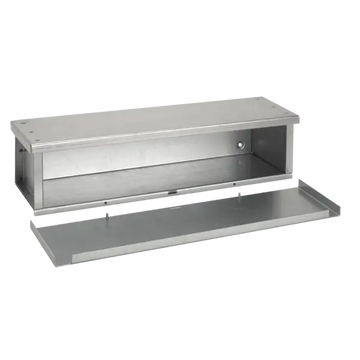

F121236RTGV - Econotrough Nema Type 3R

The Econotrough NEMA Type 3R Wireway is engineered for outdoor and indoor use where limited protection against falling rain, sleet, and external ice formation is required. Constructed from galvanized steel, this 12"x12"x36" enclosure provides rugged durability and corrosion resistance. It is ideal for housing and routing electrical wiring in commercial and light industrial applications, offering an economical solution with reliable weather protection.

Key Features:

• Product Type: Econotrough Wireway
• NEMA Rating: Type 3R – suitable for outdoor use; protects against rain and sleet
• Dimensions: 12.00 in (Height) x 12.00 in (Width) x 36.00 in (Length)
• Material: Galvanized steel for strength and corrosion resistance
• Finish: Natural galvanized surface
• Cover Type: Removable cover for easy access to conductors
• Application: Designed for routing electrical wiring in outdoor and exposed environments
• Installation: Mountable on walls, beams, or structural supports

This Econotrough wireway offers a cost-effective, durable solution for protecting electrical systems in exposed locations.

Documents:

Data Sheet
Econotrough Galvanized Wiring Trough, Type 3R Spec Sheet
