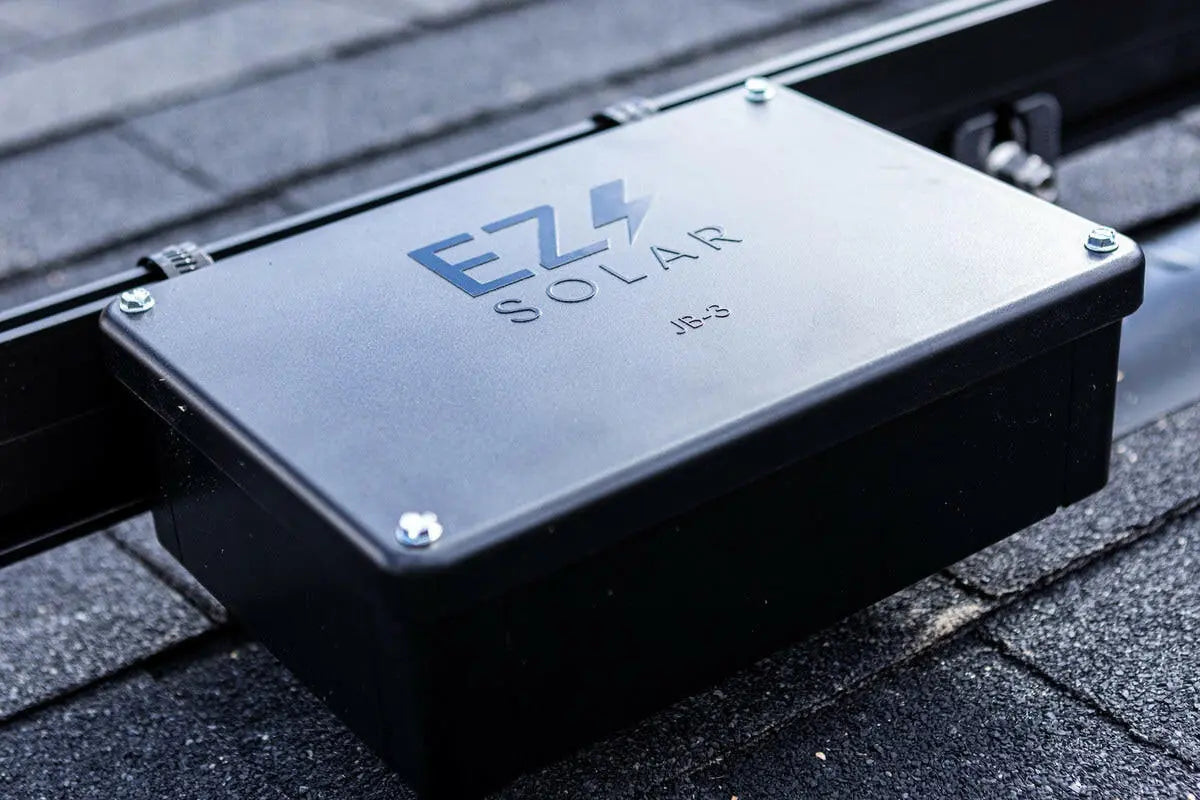

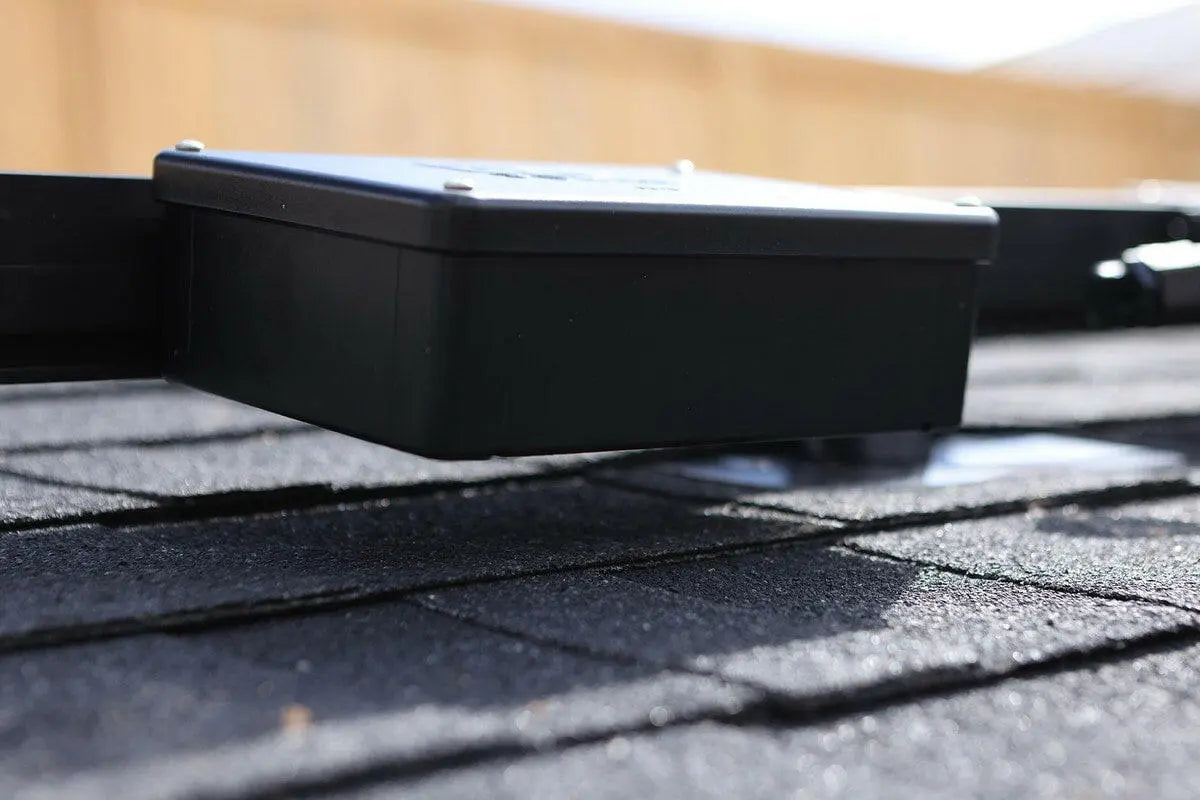

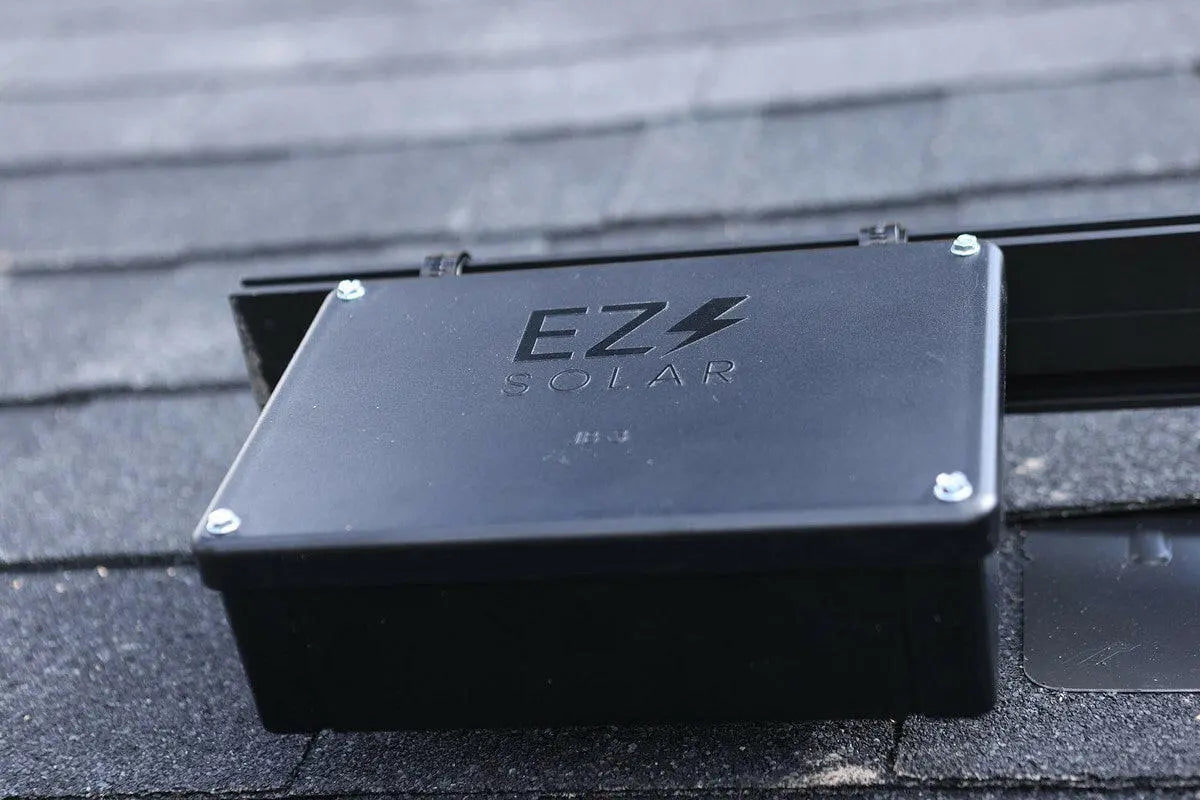

EZ Solar JB-3 Rail Mount or Pole Mount Junction Box

EZ Solar Junction Box: Durable and Versatile Solution for Solar Installations

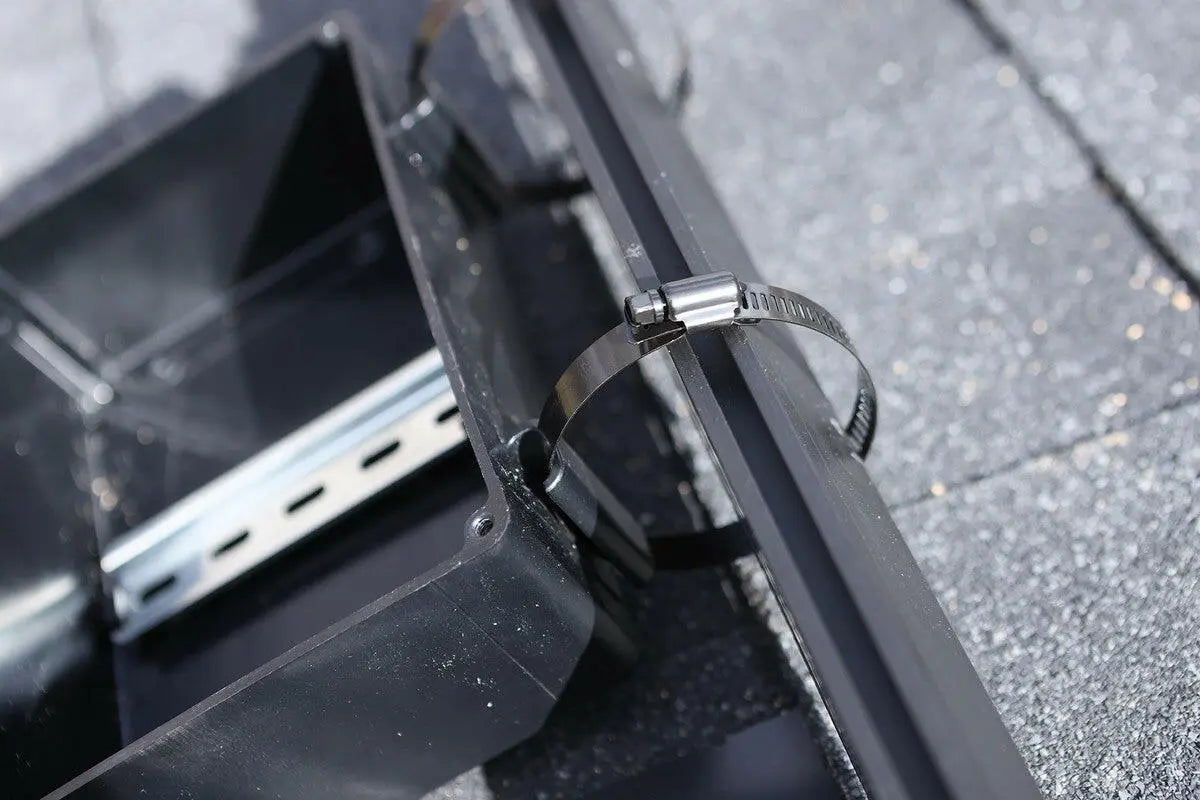

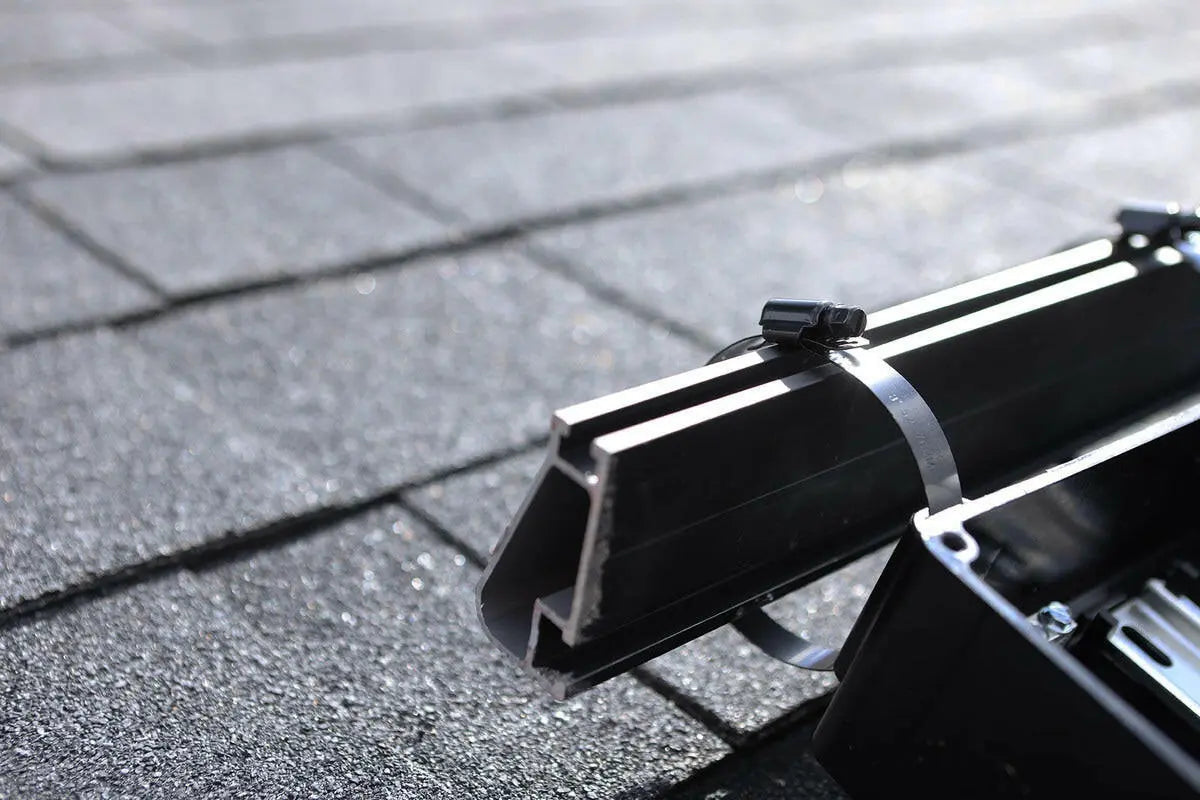

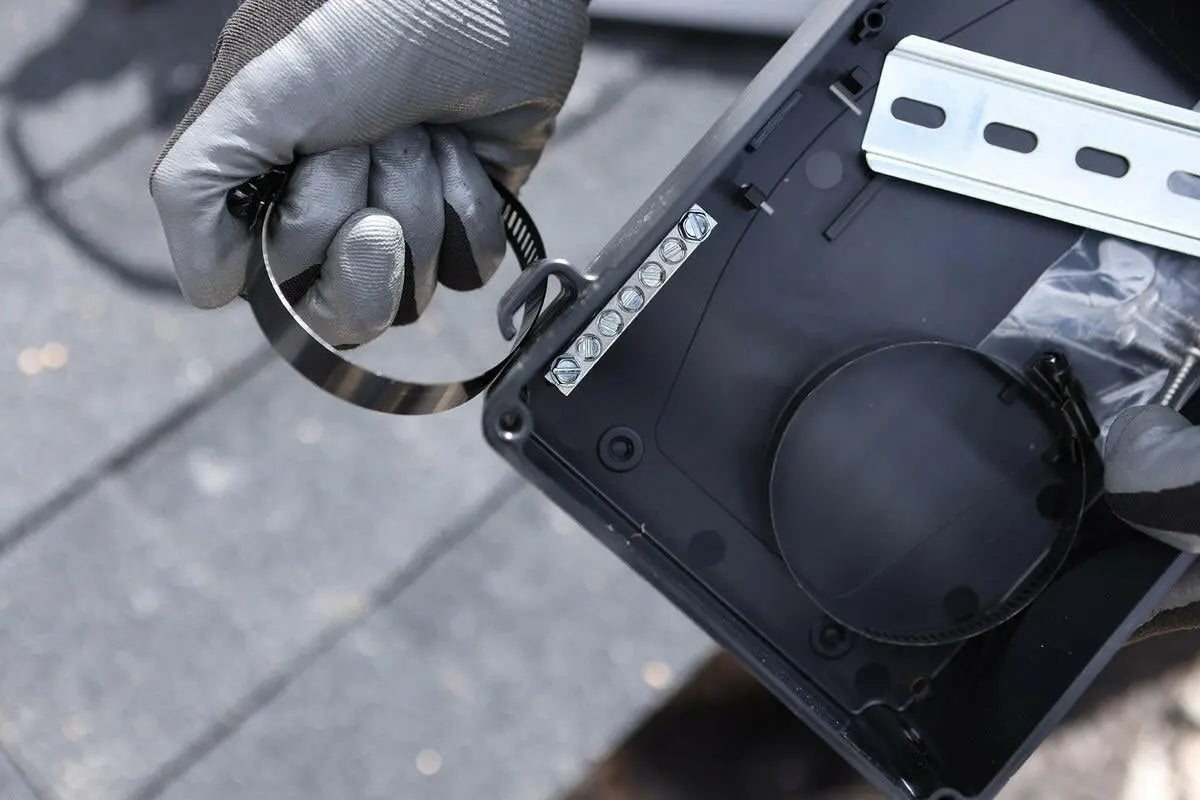

When you need a rail mounted junction box, you need EZ Solar's JB-3! With flexible stainless steel clamps, you can mount to any rail, whether rounded or squared. Like other EZ products, it's fast and simple to install.

Features

• Self-leveling
• Securely connects to rail
• Fast and easy installation
• No leaking


Specifications

• Type: Rail Mounted
• Height: 5.8 in
• Width: 8.3 in
• Depth: 2.63 in
• Enclosure Rating/IP Rating: NEMA 3R
• Electrical Rating: 1000 V, 80 A
• Temperature Rating: -35 to 75 deg C
• Standards: ETL, cETLus, UL1741, CSA C22.2


Documents

• Specification Sheet
• Drawing Sheet
• Instruction/Installation Manual

Robust Design for Reliable Performance

The EZ Solar junction box JB-3 is engineered for durability and long-term reliability in solar power systems. Its robust construction protects sensitive electrical connections from environmental elements such as moisture, dust, and UV exposure. This junction box is crafted from high-quality materials, ensuring resistance to corrosion and extreme weather conditions. Whether mounted on rails or poles, the JB-3 maintains secure connections, making it an essential component for outdoor solar installations that demand dependable performance and safety.

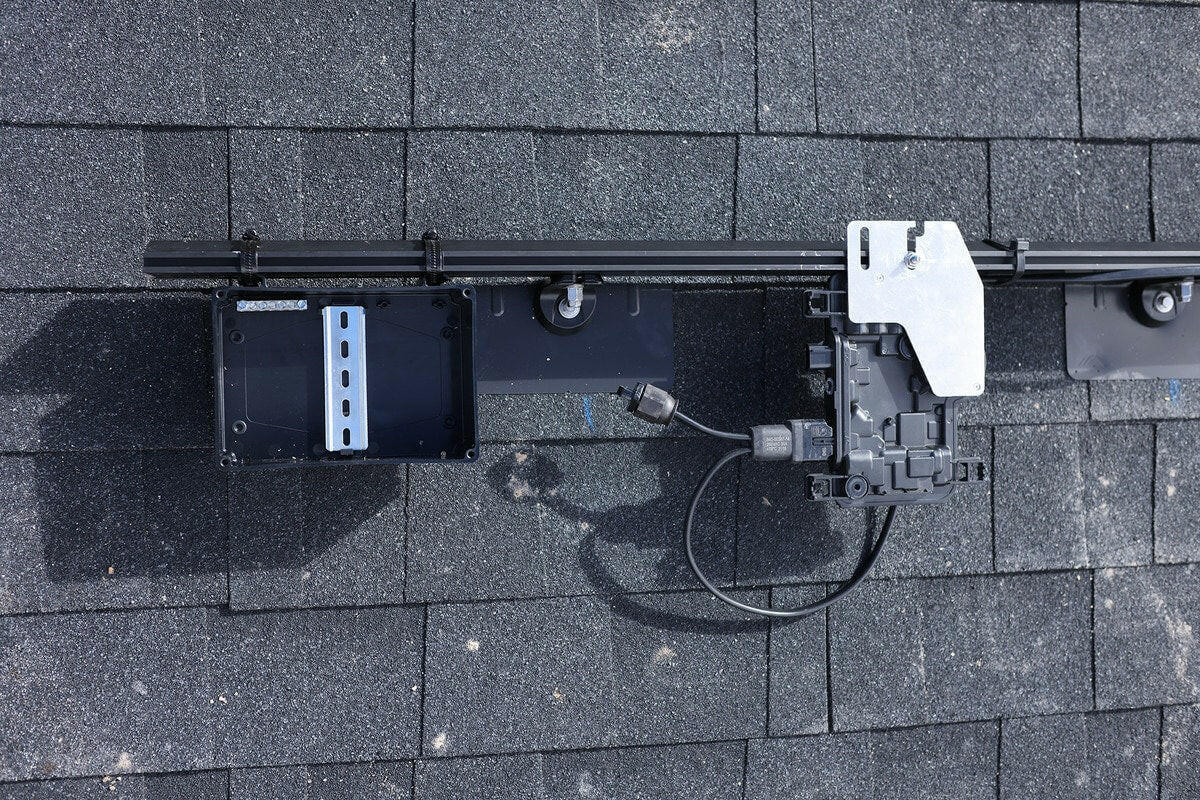

Easy Installation on Rails or Poles

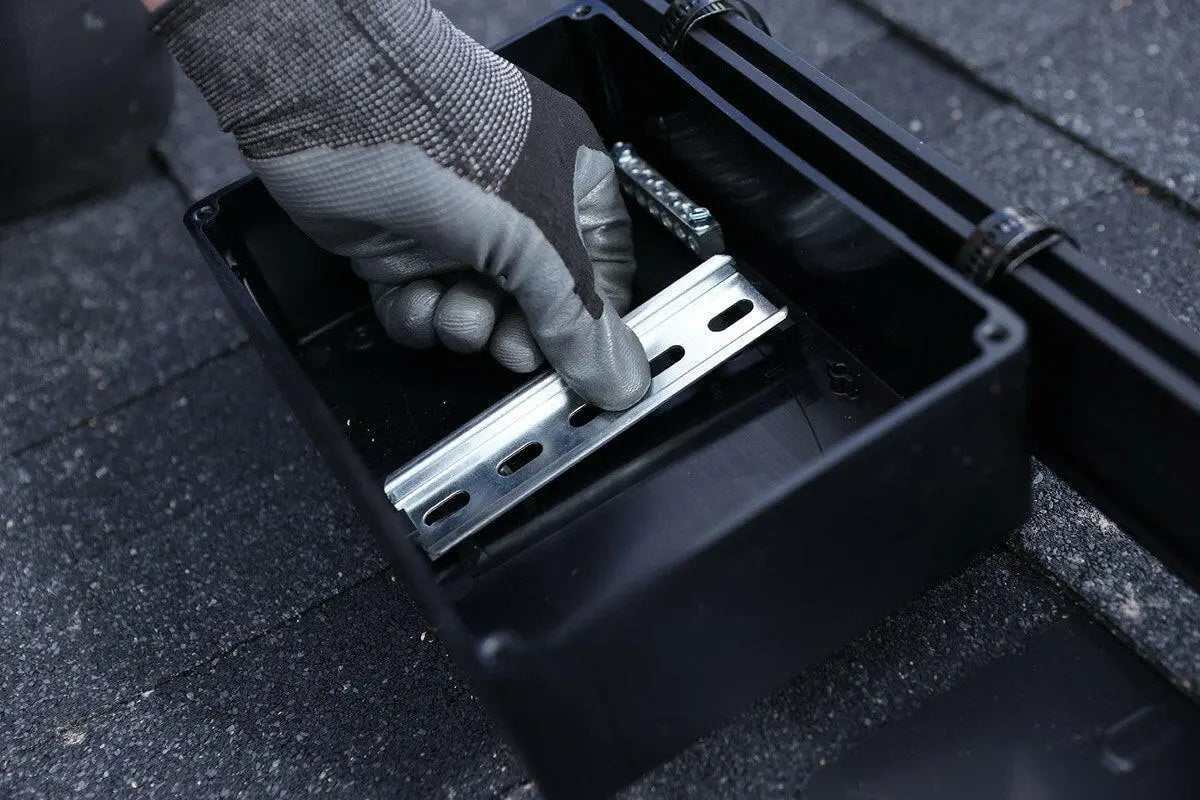

One of the key features of the EZ Solar junction box JB-3 is its flexible mounting design. It supports both rail and pole mounting options, providing installers with versatile installation choices depending on the site requirements. The junction box includes user-friendly mounting brackets that simplify the attachment process, saving time and reducing labor costs. Its compact size and lightweight design also facilitate easy handling and placement, making it ideal for both residential and commercial solar panel arrays.

Optimized Electrical Connectivity and Safety

The EZ Solar junction box JB-3 is designed to optimize electrical connectivity within solar power systems. It offers secure terminal connections that reduce the risks of loose wires and electrical faults. Additionally, the junction box includes built-in features to manage cable entry and protect against moisture ingress, ensuring safe and efficient power transmission. This design enhances the overall system efficiency and extends the life of connected solar components, making the JB-3 a smart investment for maintaining uninterrupted solar energy output.
