EZ Solar JB-2 Rooftop PV Junction Box for Tile Roofs

Comprehensive Overview of the EZ Solar Junction Box for Tile Roofs

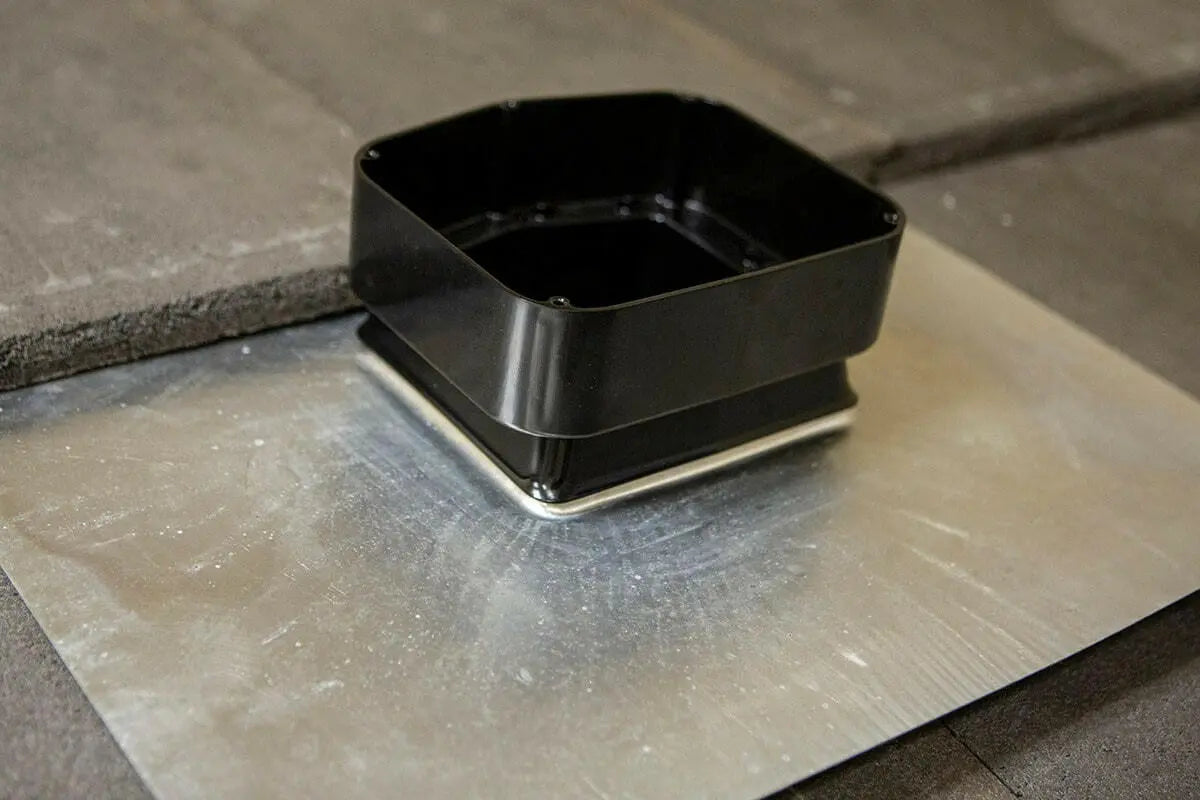

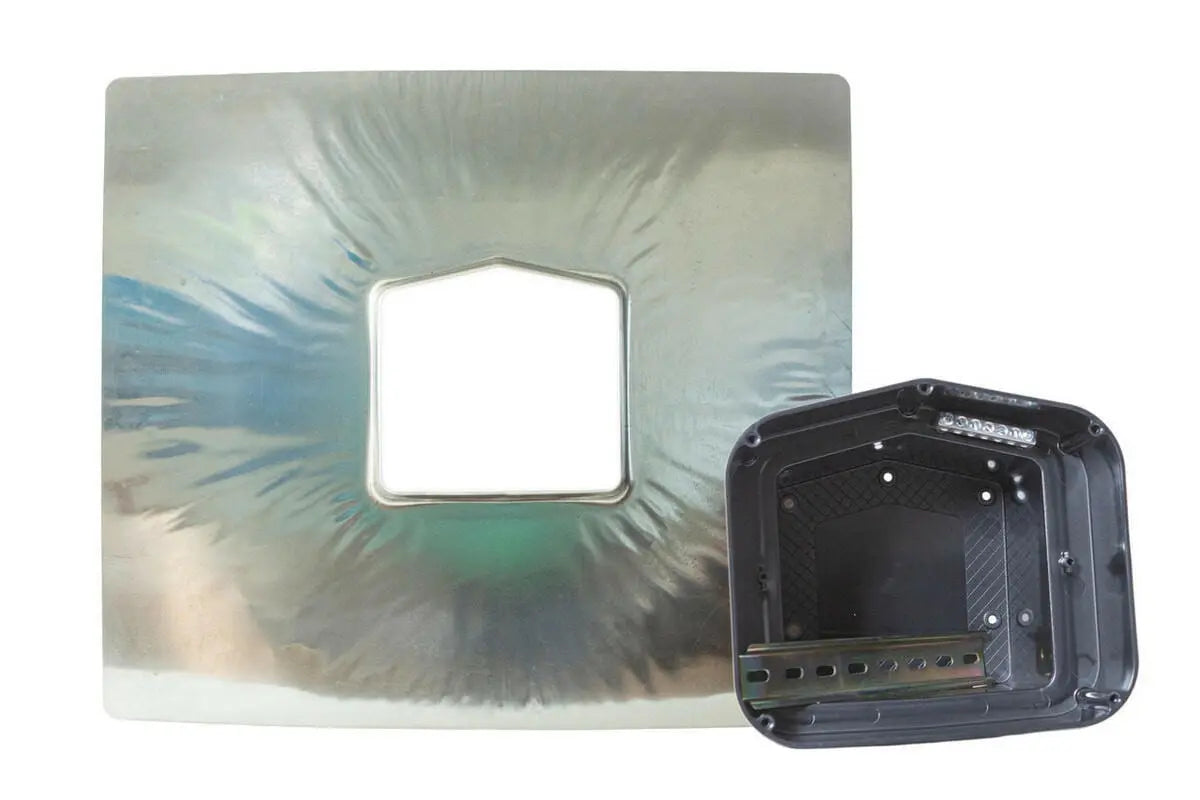

Solar installers have patiently waited for a solution to install junction boxes on tile roofs. The wait is over! The JB-2 integrates with most Flat, Spanish and W-Shaped tiles. The innovative box design allows the box to securely fasten to the roof deck. Solar installers have waited a long time for a good way to install junction boxes on tile roofs. The wait is over, introducing the JB-2, EZ Solar first box designed specifically for tile roofs.

Features

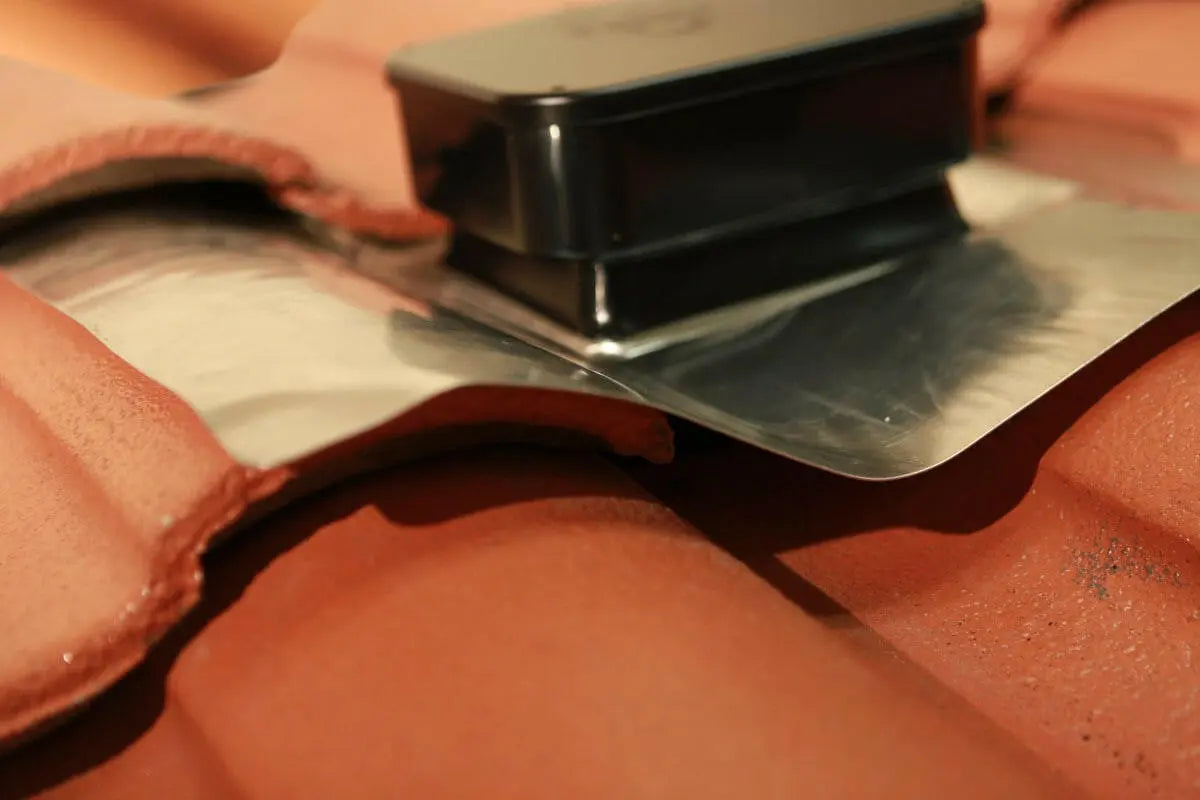

• Integrates with most flat, spanish and W-shaped tiles

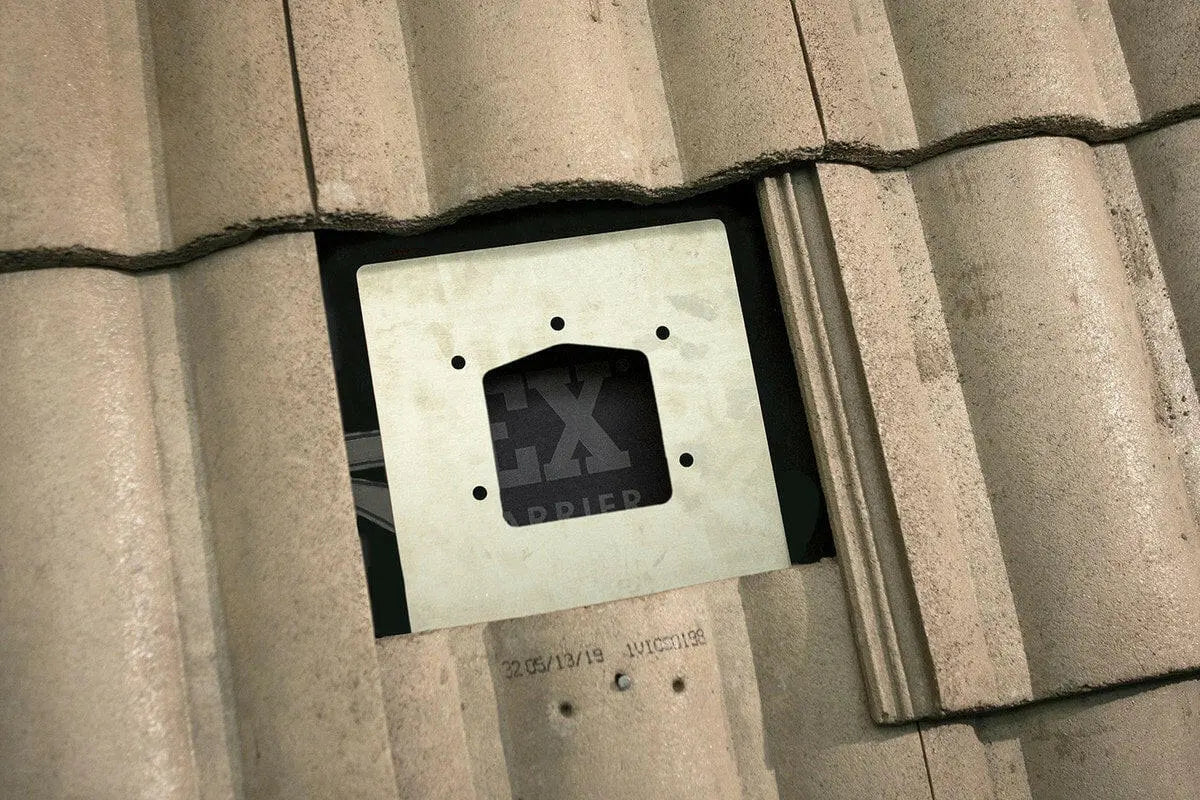

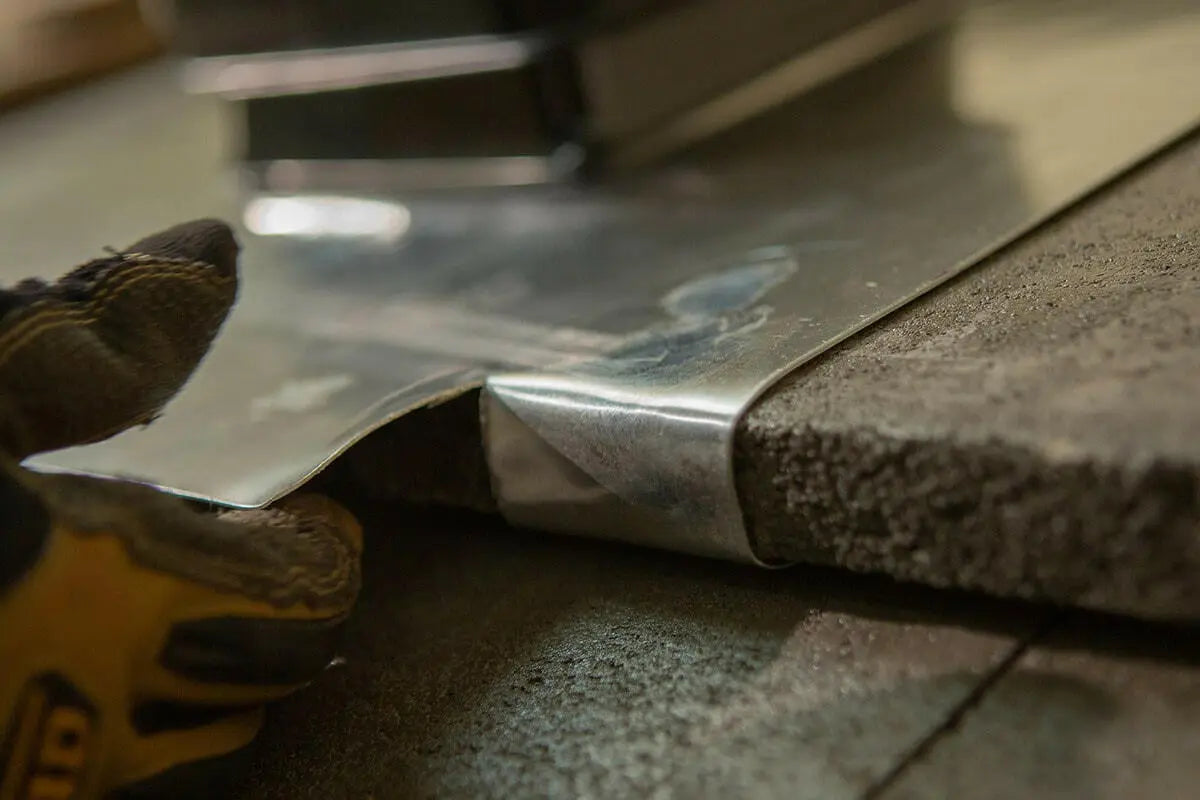

• No cutting of tile
• Allows box to securely fasten to roof deck
• Allows 3 sidewall entrances

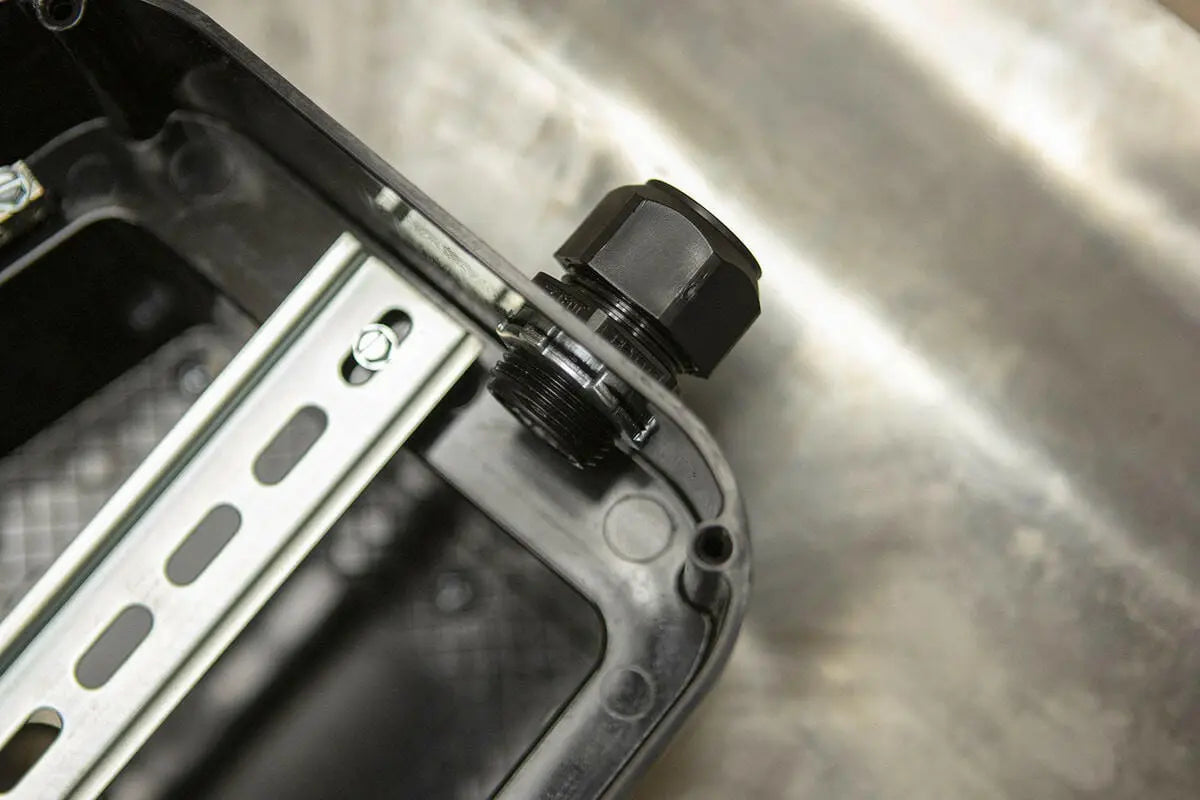

• Revolutionary DIN rail positioning

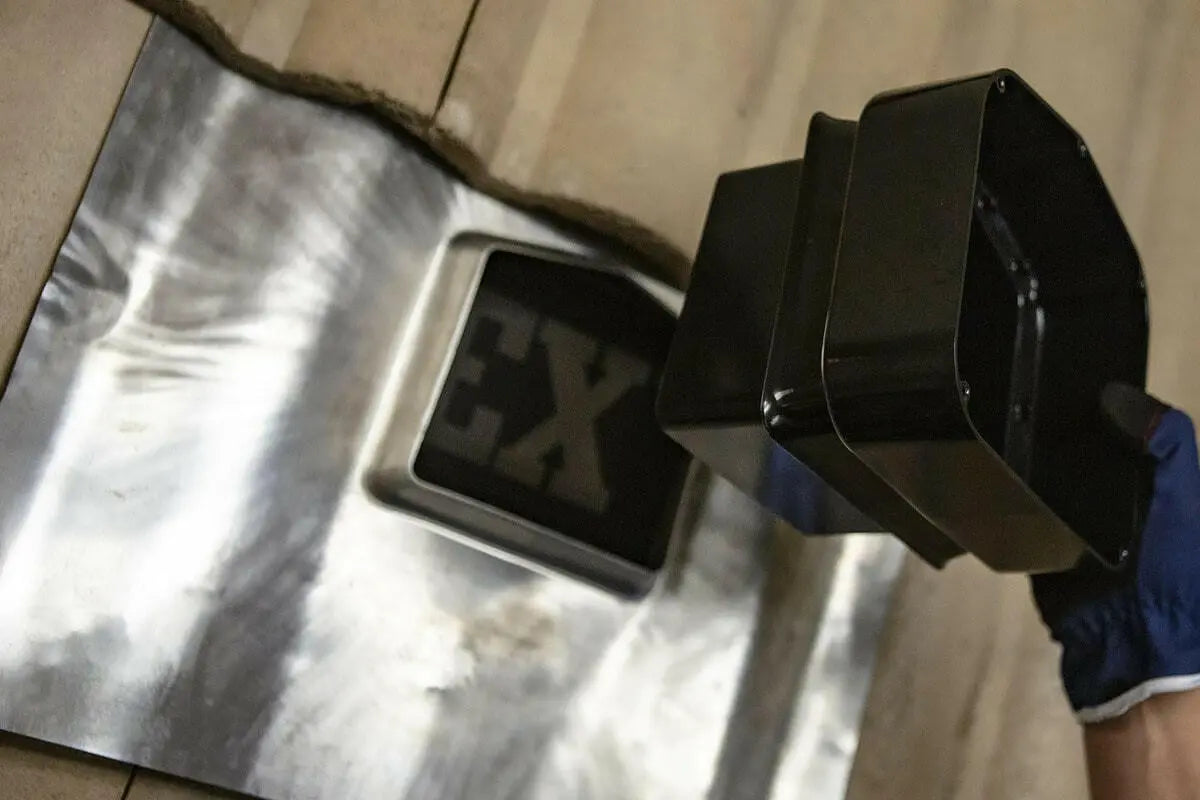

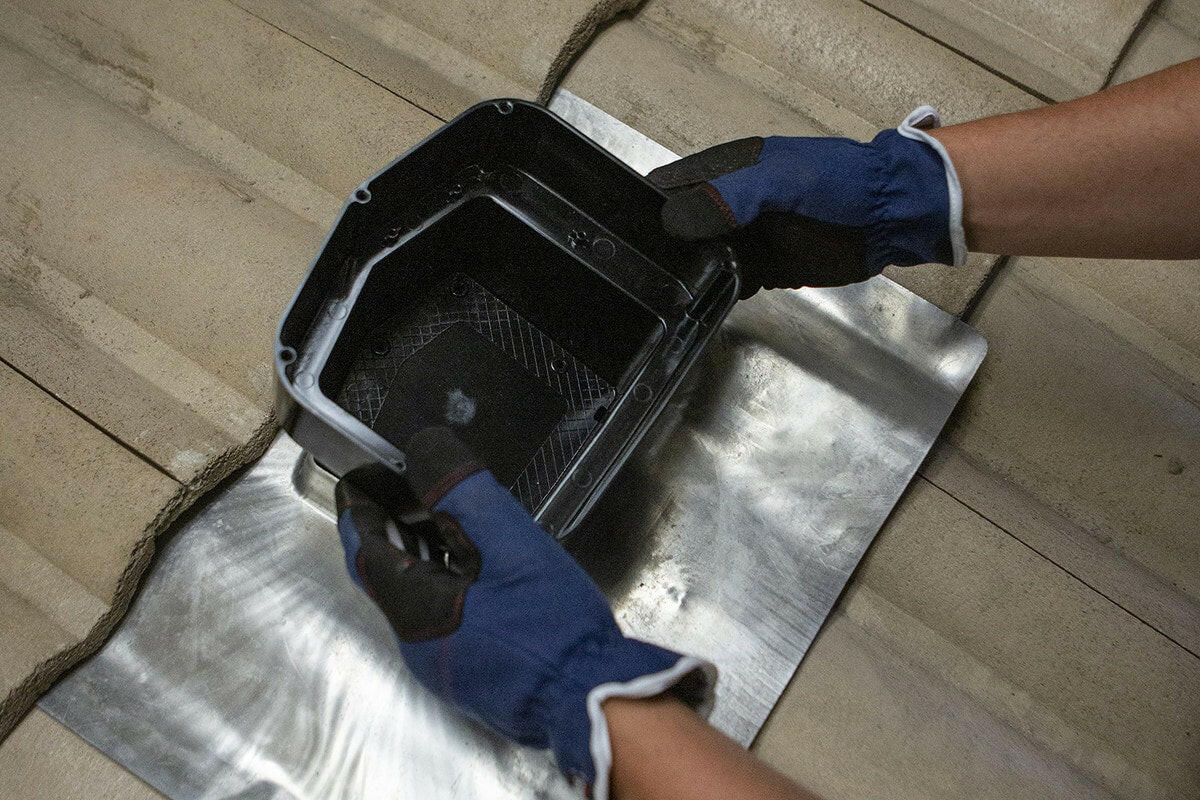

• Fast and easy installation


Specifications

• Length: 8.86 in
• Width: 7.9 in
• Height: 2.25 in
• Maximum Voltage: 1000 V
• Maximum Amperage: 120 A
• Wire Size: 14-6 AWG
• Enclosure Rating/IP Rating: NEMA 3R
• Operating Temperature: -35 to 75 Deg C
• Standards: UL1741, CSA C22.2 No. 290


Documents

• Specification Sheet
• Specification Sheet
• Instruction/Installation Manual
• Drawing Sheet

Durable Construction and Weatherproof Design

The EZ Solar Junction Box is engineered to withstand harsh weather conditions, ensuring long-lasting performance on tile roofs. Its robust construction uses high-quality materials that resist corrosion, UV damage, and moisture ingress. This weatherproof design protects vital electrical connections within solar photovoltaic (PV) systems, maintaining system reliability through rain, snow, or extreme heat. Installing this junction box on tile rooftops ensures a secure and safe connection point that supports optimal energy production without compromising safety.

Ease of Installation and Compatibility

Designed specifically for tile roofs, the EZ Solar Junction Box offers unmatched ease of installation. It features pre-designed mounting brackets and adaptable wiring ports compatible with a variety of solar panels and cable types. Its lightweight yet sturdy form factor allows professional installers and DIY enthusiasts to fit the box quickly without damaging fragile tiles. This compatibility reduces installation time and enhances the overall efficiency of rooftop solar projects, making the EZ Solar Junction Box a preferred choice among solar system providers.

Enhanced Electrical Safety and Performance

The EZ Solar Junction Box plays a critical role in maintaining electrical safety by securely housing solar PV connections. It includes integrated surge protection and reliable terminal blocks that prevent loose wiring and potential faults. By minimizing the risk of electrical shorts and providing a centralized connection hub, this box helps maintain system integrity and durability. Its thoughtful design maximizes the performance of rooftop solar arrays, ensuring consistent energy flow and reducing maintenance needs over the system’s lifespan.
