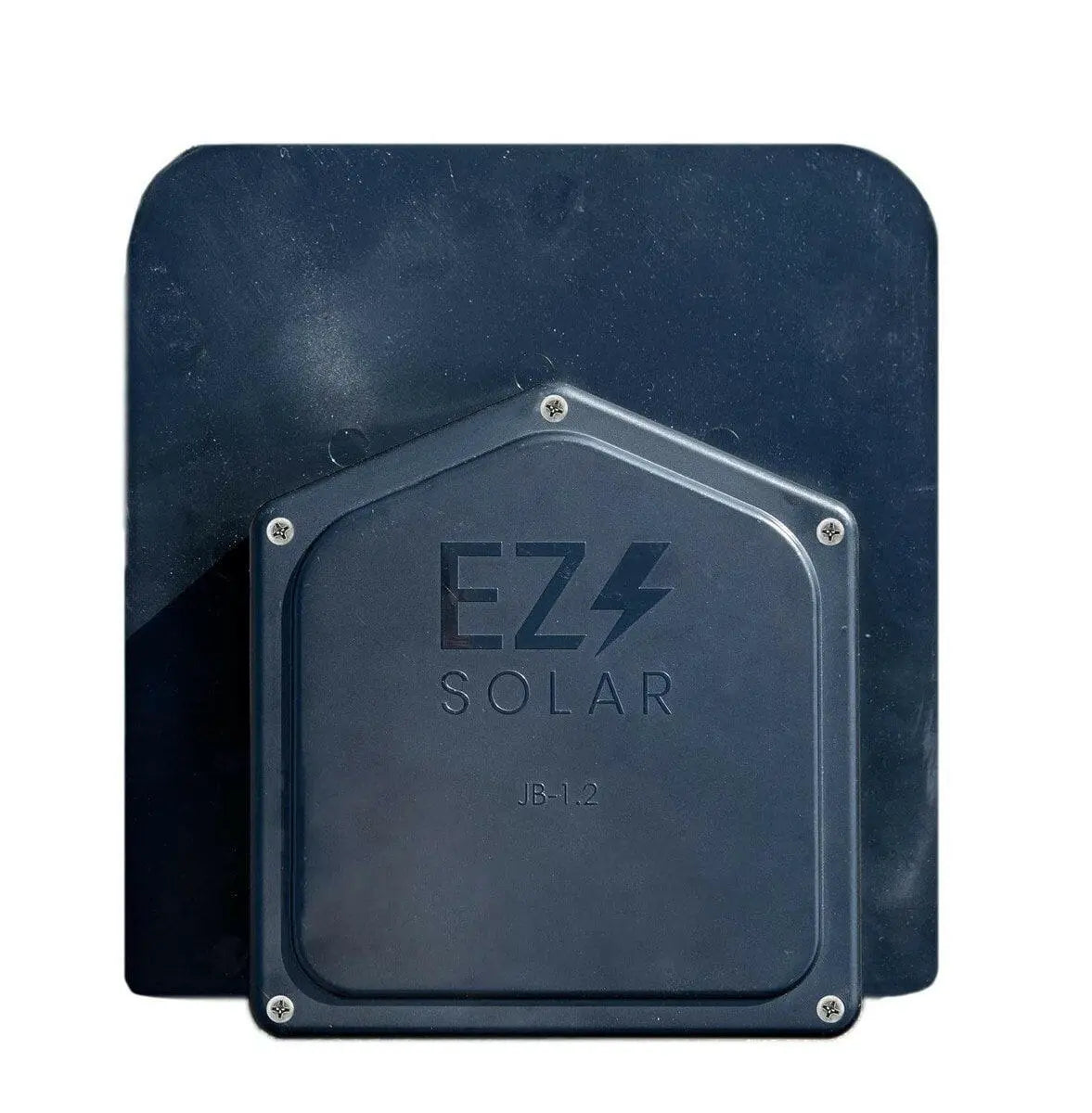

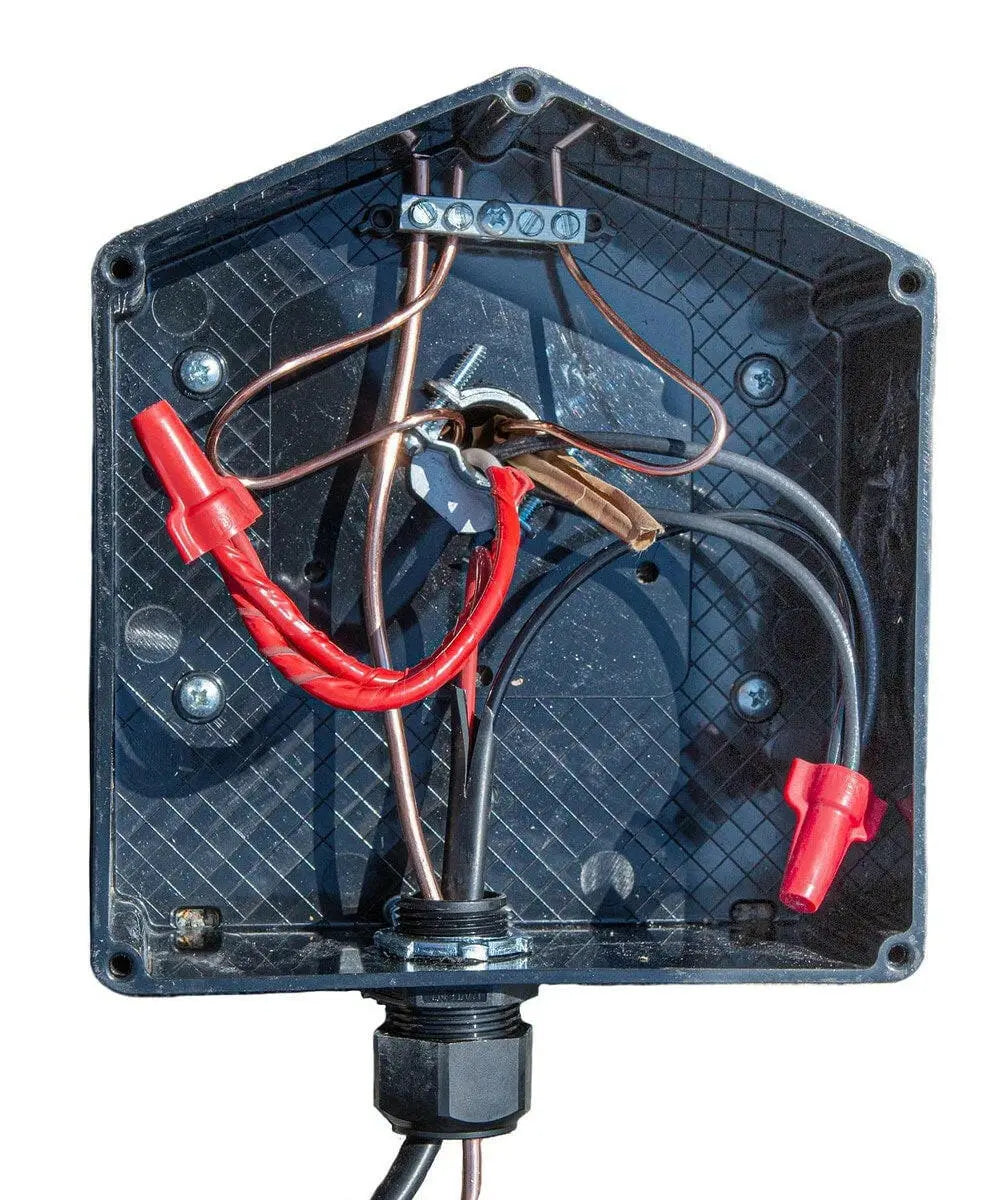

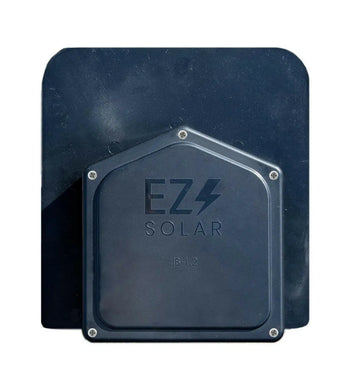

EZ Solar JB-1.2 Rooftop PV Junction Box

EZ Solar JB-1.2 Rooftop PV Junction Box

Our system offers simplified solutions for composition shingle and tile roofs. Our products provide installers with maximum flexibility and proven reliability of solar panels. EZ Solar believes innovation is key to making solar simple. The most revolutionary junction box on the market just got better. Designed with the installer in mind, the JB-1.2 makes installation fast and easy.

Features

• Minimal shingle cutting
• Enter through 3 sidewalls
• Wider and taller sidewalls
• Made from advanced durable polycarbonate + superior components, UL1741, Neman 3R, CSA C22.2 No. 290
• 3 Patented layers of water protection
• 2 Weep holes for breathability
• We believe everyone should have access to affordable renewable energy
• 100 Cubic inches (Systems 7kW and smaller)
• Minimum number of components


Specifications

• Length: 7.2 in
• Width: 10.88 in
• Height: 2.86 in
• Material: Polycarbonate
• Maximum Voltage: 1000 V
• Maximum Amperage: 80 A
• Wire Size: 14-6 AWG
• Enclosure Rating/IP Rating: NEMA 3R
• Operating Temperature: -35 to 75 Deg C
• Standards: UL1741, CSA C22.2 No. 290, ETL


Documents

• Specification Sheet
• Specification Sheet
• Instruction/Installation Manual


Overview of EZ Solar JB-1.2

The EZ Solar JB-1.2 Rooftop PV Junction Box is designed for efficient solar energy management. This product is crucial for connecting solar panels to the electrical system of your building. With its robust design, it supports a wide range of applications, making it ideal for residential and commercial rooftops alike. The junction box ensures secure connections that can withstand various weather conditions, so you can trust it to perform reliably.

Key Features and Benefits

One of the standout features of the EZ Solar JB-1.2 is its easy installation process. It includes clear instructions, allowing even beginners to set it up without hassle. Additionally, the junction box is equipped with durable materials that enhance its lifespan and protect against corrosion, which is essential for outdoor environments. This means your investment in solar technology remains protected for years, ensuring optimal energy production.

Why Choose EZ Solar?

Choosing EZ Solar products means prioritizing quality and efficiency. The JB-1.2 junction box is engineered to provide a safe and efficient pathway for electrical connections in solar installations. Furthermore, because EZ Solar is committed to sustainable energy solutions, you can feel good about your choice to support a cleaner environment. So, invest in the EZ Solar JB-1.2 and make a positive impact while enjoying cost savings on your energy bills.
