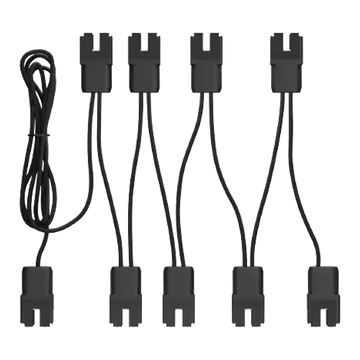

Enphase Q Cable 12AWG Landscape

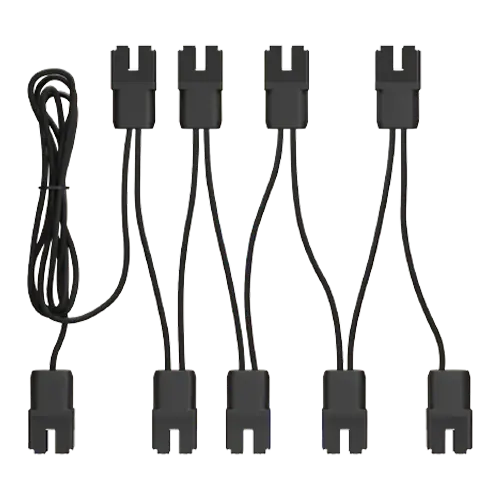

The Enphase Q Cable 12AWG Landscape (SKU: Q-12-17-240) is a continuous-length, two-wire, double-insulated cable for use with Enphase IQ Microinverters. It is 50% lighter than the previous generation Enphase cable and designed for 60-cell PV modules in landscape orientation.

Key Features

• Continuous length cable with pre-installed connectors
• 50% lighter than previous generation Enphase cable
• Designed for 60-cell (1.7 m pitch) landscape PV modules
• Connector pitch: 2.0 m (78.7")
• Faster, simpler, and more reliable installations
• 240 male connectors included (plus 2 bonus link connectors)

Cable Specifications

• Conductor Size: 12 AWG
• Voltage Rating: 600 V (connector rating 250 V)
• Max Nominal Voltage: 277 VAC
• Module Orientation: Landscape
• Module Cell Count: 60-cell (1.7 m module pitch)
• Connector Pitch: 2.0 m (6.5 ft)
• Conductors: 4 conductors, 12 AWG
• Outer Diameter: 11.5 mm

Compatibility

• IQ6, IQ7, and IQ8 Series Microinverters
• 60-cell PV modules in landscape orientation

Warranty

Standard Enphase accessory warranty

Datasheet

Download IQ Cable and Accessories Datasheet (PDF)
