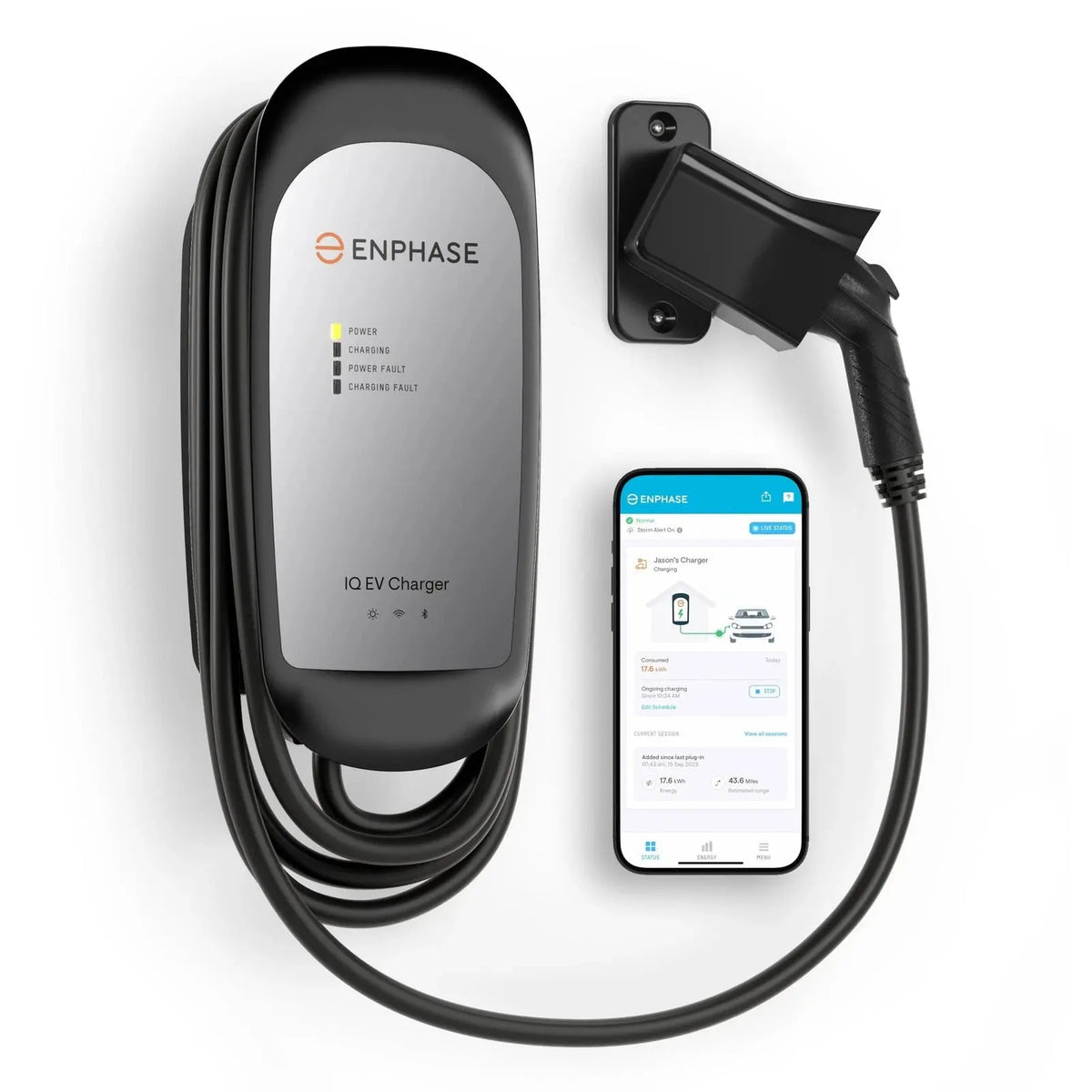

Enphase IQ EV Charger 2 – 40A J1772 EV Charger

The Enphase IQ EV Charger 2 – 40A (SKU: IQ-EVSE-NA-1050-0110-1120) offers reliable, safety-certified hardware and smart software for efficient home and commercial EV charging. It optimizes charging through features like real-time solar tracking and dynamic load balancing, helping reduce cost, avoid a main panel upgrade in supported installations, and minimize carbon footprint.

Enphase IQ EV Charger 2 – 40A Overview

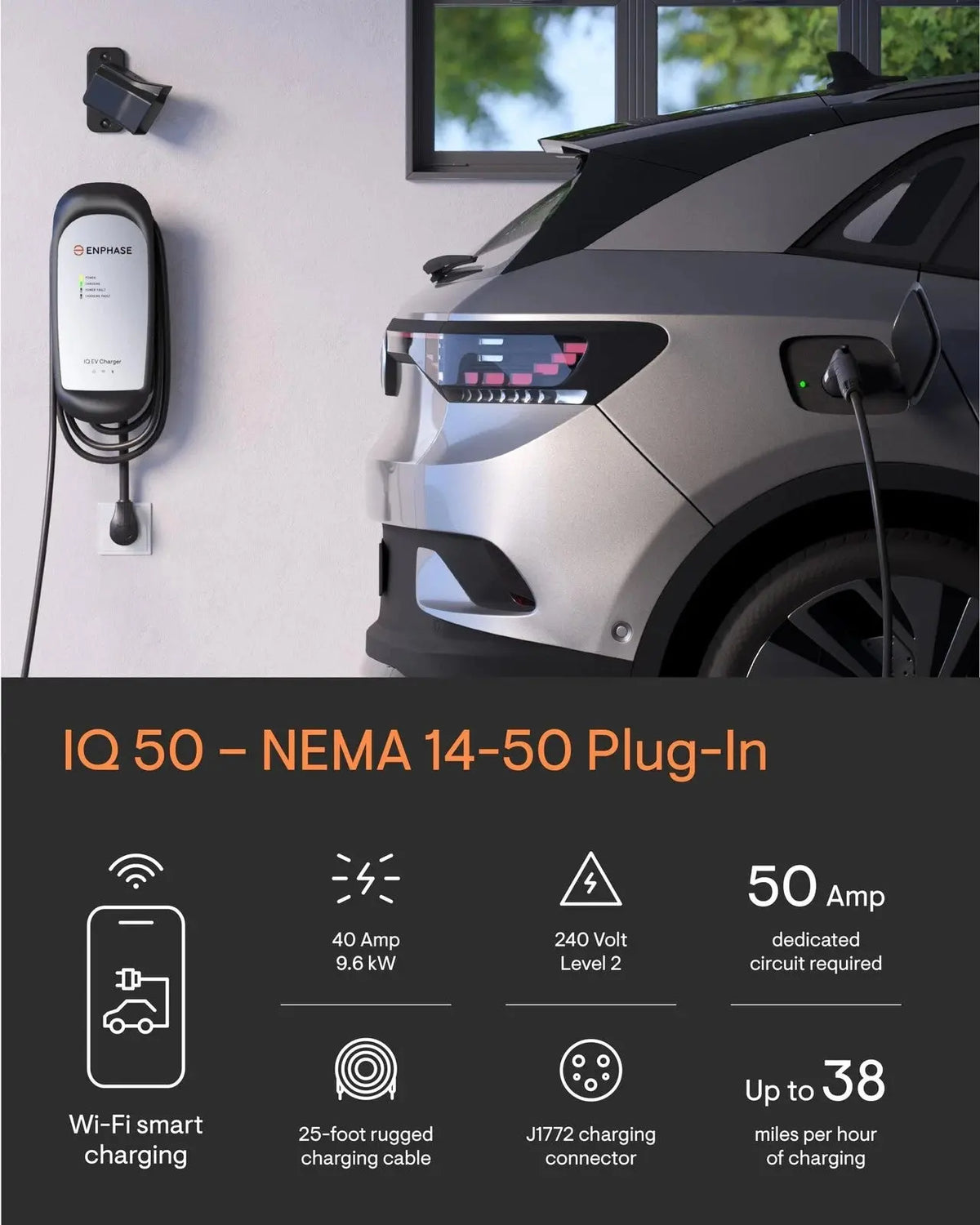

This IQ EV Charger 2 model is a Level 2 J1772 connector charger with a 40 A NEMA 14-50 pre-wired input and up to 9.6 kW charging power at 240 VAC. It is designed for indoor or outdoor use and supports smart, secure access for EV charging at home, at workplaces, and on commercial properties. A licensed electrician should install the charger.

Key Features

• Up to 9.6 kW charging power at 240 VAC (40 A)
• Localized green charging — tracks solar every 30 seconds and regulates current in 1 A increments
• Dynamic load balancing adjusts power draw to help avoid main panel upgrades and prevent tripping
• Seamless integration with Enphase PV systems and third-party PV via IQ Gateway

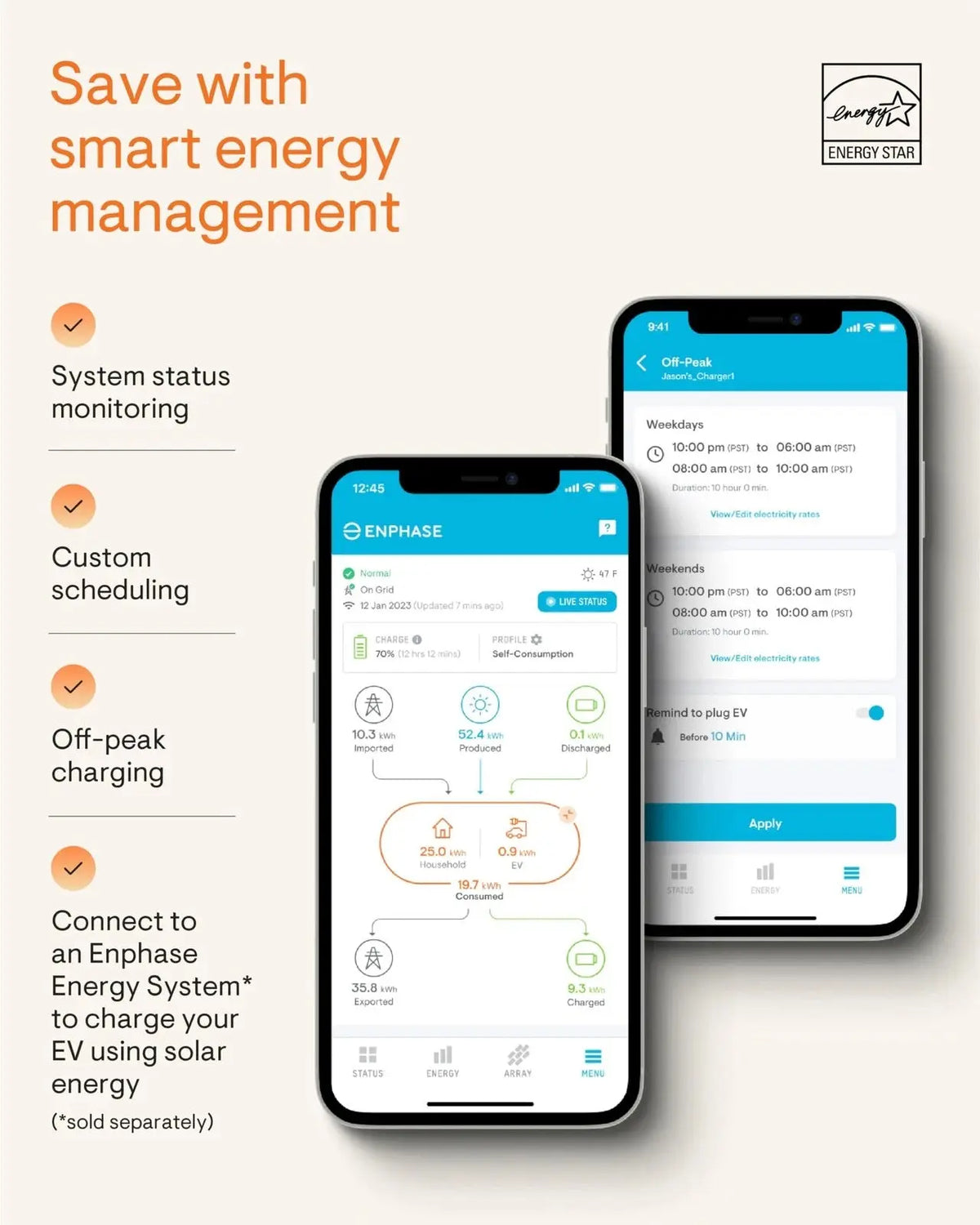

• App-based or RFID-based authentication for secure access control
• Storm Guard: charges EV at full power during active storm alert
• Connectivity: Wi-Fi 2.4/5 GHz, Bluetooth 5.3, Ethernet
• Pre-wired NEMA 14-50 plug (8 AWG L1/L2, 10 AWG ground)
• Type 1 (J1772) connector, 25 ft cable

Electrical Specifications

• Operating Voltage: 208/240 VAC (±10%), single-phase/split-phase
• Rated Output Current: 6–40 A
• Maximum Charging Power: Up to 9.6 kW
• Input Cable: Pre-wired NEMA 14-50, 8 AWG (L1, L2), 10 AWG (ground)
• Connector Type: Type 1 (J1772)

Mechanical Specifications

• Enclosure Dimensions (H×W×D): 14.5" × 9.8" × 4.64" (370 mm × 250 mm × 118 mm)
• Weight: 27.94 lb (12.70 kg)
• Enclosure Rating: NEMA 4 (indoor/outdoor)
• Operating Temperature: -40°F to 131°F (-40°C to 55°C)
• Mounting: Wall or pedestal

Compliance

NEC Article 625, SAE J1772, ENERGY STAR, UL 2594, CSA C22.2 No. 280-22, UL 2231-1, UL 2231-2, UL 1998, UL 991, FCC 15B, ICES-003

Warranty

5-year limited warranty

Datasheet

Download IQ EV Charger 2 Datasheet (PDF)
