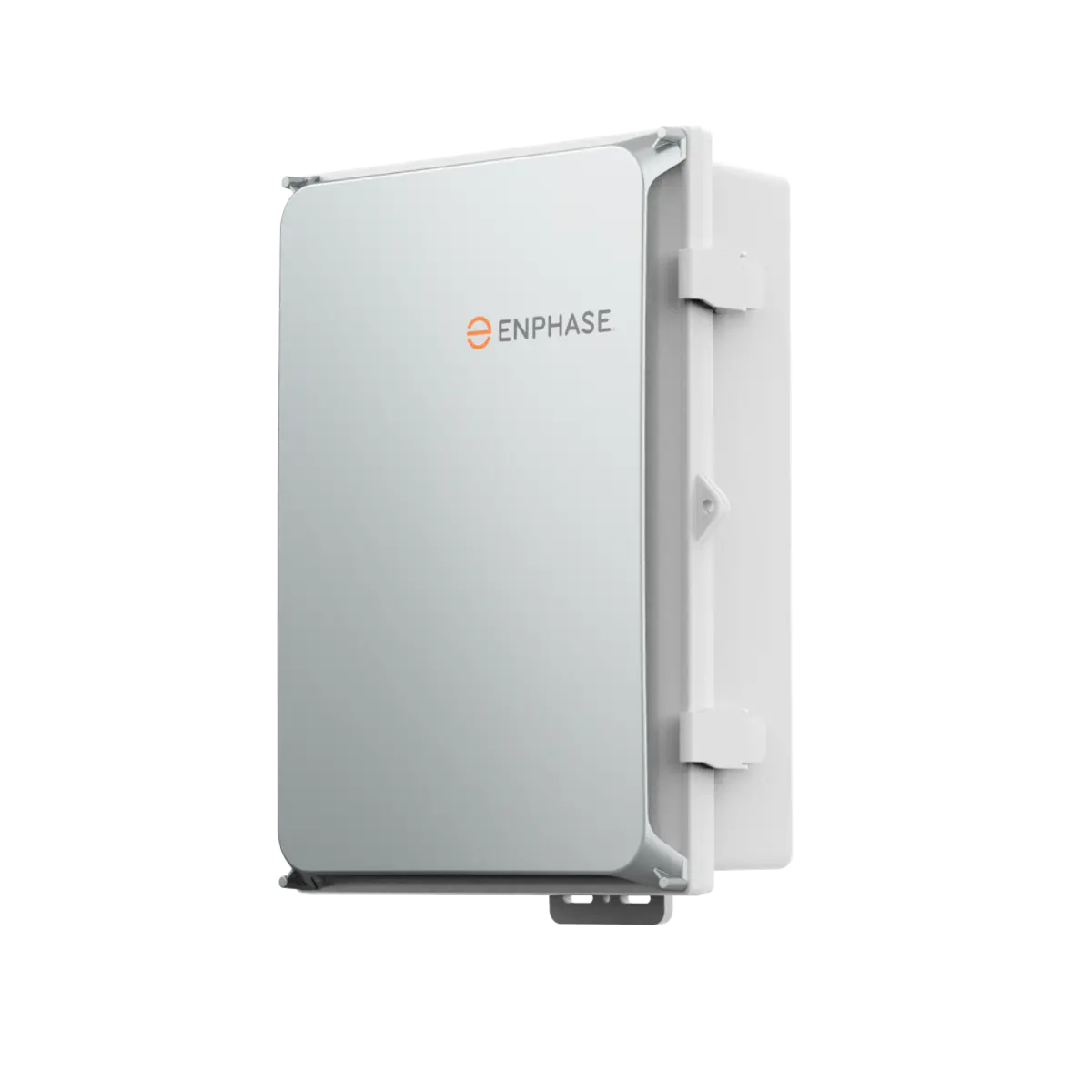

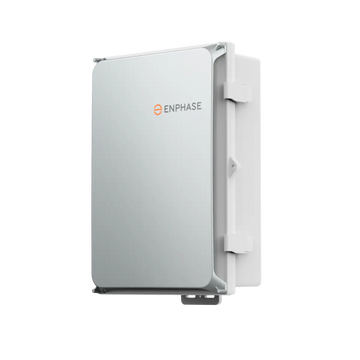

Enphase IQ Combiner 4C (IEEE certified) 1547:2018 Compliant IQ Gateway, Max 80A and 4 AC Branch Circuits

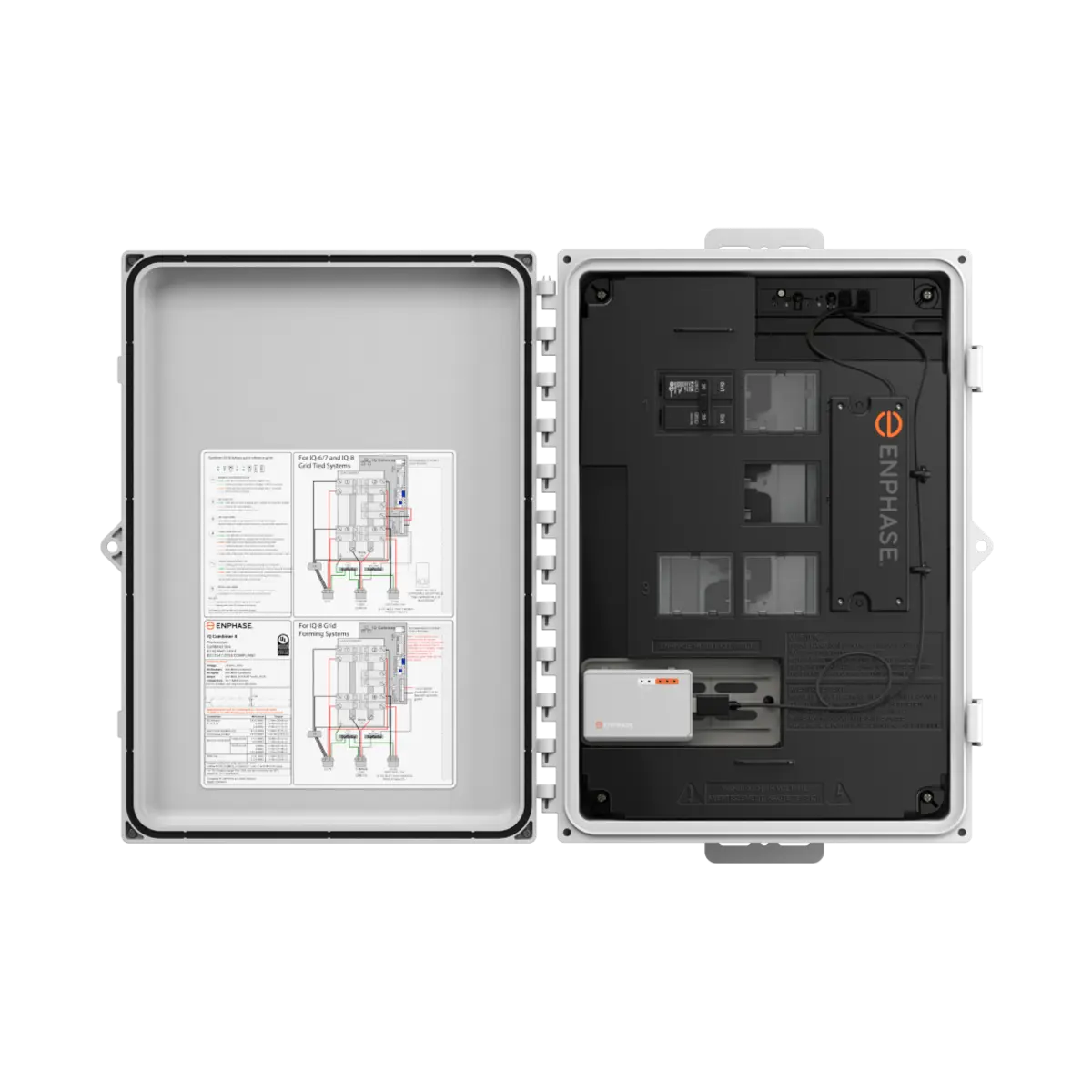

The IQ Combiner 4/4C with IQ Gateway and integrated LTE-M1 cell modem (included only with IQ Combiner 4C) consolidates interconnection equipment into a single enclosure. It streamlines IQ Microinverters and storage installations by providing a consistent, pre-wired solution for residential applications. It offers up to four 2-pole input circuits and Eaton BR series busbar assembly.

Features

• Flexible networking supports Wi-Fi, Ethernet, or cellular
• Optional AC receptacle available for PLC bridge
• Provides production metering and consumption monitoring

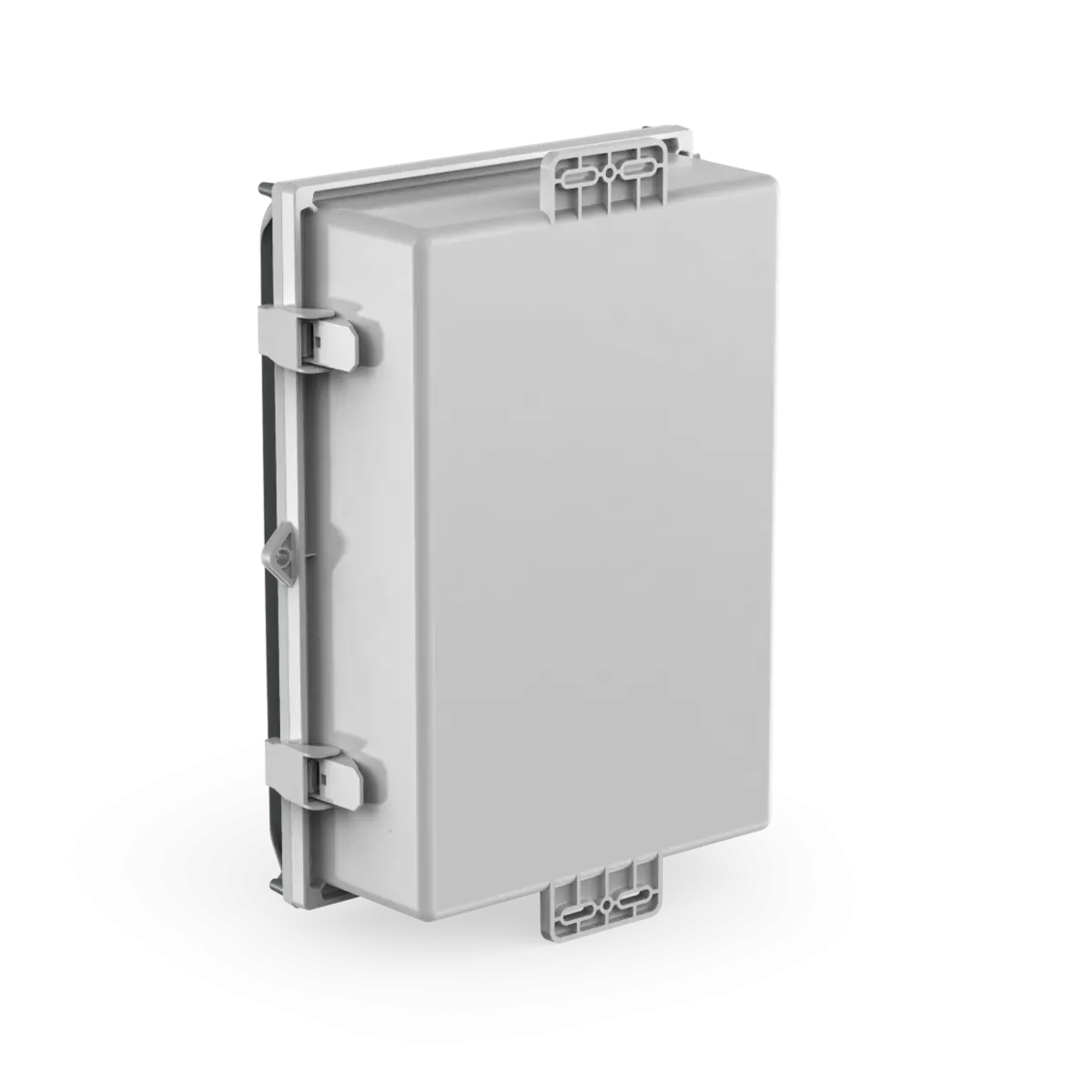

• Centered mounting brackets support single stud mounting
• Supports bottom, back, and side conduit entry
• Up to four 2-pole branch circuits for 240VAC plug-in breakers (not included) with hold down kit support
• Durable NRTL-certified NEMA type 3R enclosure
• Five-year limited warranty
• Two years labor reimbursement program coverage included
• Compatible with IQ8-Series and IQ7-Series Microinverters


Specifications

• Type – IQ
• Enclosure Rating – 3R
• System Voltage – 120/240 VAC, 60 Hz
• Eaton BR Series Busbar Rating – 125 A
• Maximum Continuous Current Rating – 65 A
• Maximum Continuous Current Rating (Input from PV/Storage) – 64 A
• Maximum Fuse/Circuit Rating (Output) – 90 A
• Branch Circuits (Solar and/or Storage) – Up to Four 2-Pole Eaton BR Series Distributed Generation (DG) Breakers Only
• Maximum Total Branch Circuit Breaker Rating (Input) – 80 A of Distributed Generation/90 A with IQ Envoy Breaker Included
• Production Metering CT – 200 A Solid Core Pre-Installed & Wired to IQ Gateway
• Wire Size – 20-50 A Breaker Inputs - 14-4 AWG Copper Conductors, 60 A Breaker Branch Input - 4 to 1/0 AWG Copper Conductors, Main Lug Combined Output - 10 to 2/0 AWG Copper Conductors, Neutral & Ground - 14 to 1/0 Copper Conductors (Always Follow Local Code Requirements for Conductor Sizing)
• Integrated Wi-Fi – 802.11 b/g/n
• Ethernet – 802.3, Cat5E (or Cat 6) UTP Ethernet Cable
• Cellular – CELLMODEM-M1-06-SP-05, CELLMODEM-M1-06-AT-05 (4G Based LTE-M1 Cellular Modem)
• Cooling – Natural Convection, Plus Heat Shield
• Ambient Temperature Rating – -40 to 46°C
• Standards – UL Listed, cCSAus Certified

Documents

• Specification Sheet
• Instruction/Installation Manual
