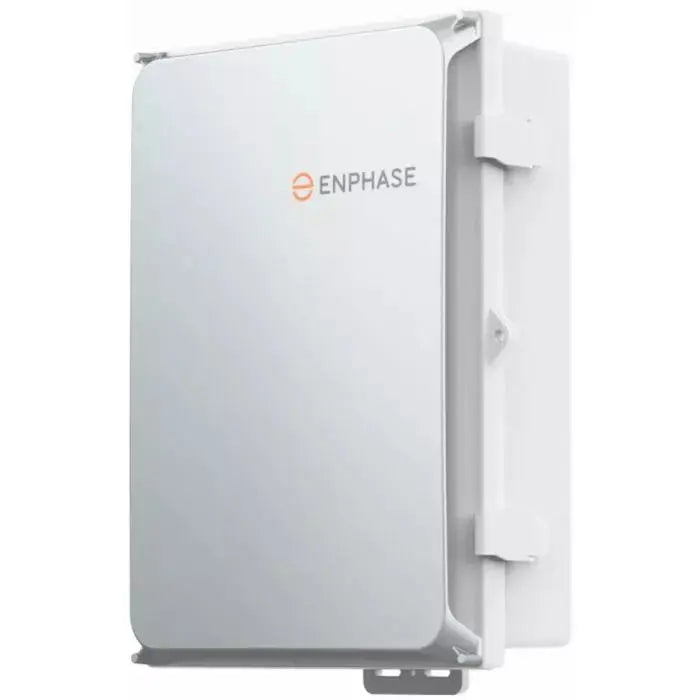

Enphase IQ Combiner 4 w/IQ Gateway + 2 CTs

The Enphase IQ Combiner 4 with IQ Gateway and 2 CTs (SKU: X-IQ-AM1-240-4) consolidates PV interconnection equipment into a single enclosure and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications.

Key Features

• Includes IQ Gateway for communication and control
• Includes 2 split-core consumption CTs for consumption monitoring
• Revenue-grade PV production metering (ANSI C12.20 ±0.5%)
• Consumption monitoring (±2.5%)
• Supports flexible networking: Wi-Fi, Ethernet, or cellular
• Up to four 2-pole branch circuits for 240 VAC plug-in breakers
• 80 A total PV branch circuits
• Bluetooth-based Wi-Fi provisioning
• 5-year limited warranty
• UL 1741 Listed

Electrical Specifications

• Rating: 80 A
• System Voltage and Frequency: 120/240 VAC or 120/208 VAC, 60 Hz
• Busbar Rating: 125 A
• Fault Current Rating: 10 kAIC
• Maximum Continuous Current (input from PV/storage): 64 A
• Branch Circuits: Up to four 2-pole DG breakers (not included)

Mechanical Specifications

• Dimensions (W×H×D): 14.75" × 19.5" × 6.63" (37.5 cm × 49.5 cm × 16.8 cm)
• Weight: 16.5 lb (7.5 kg)
• Ambient Temperature Range: -40°F to 115°F (-40°C to 46°C)
• Enclosure: Outdoor, NRTL-certified, NEMA Type 3R, polycarbonate

Communication

• Wi-Fi: 802.11b/g/n (dual band 2.4 GHz/5 GHz)
• Bluetooth: BLE 4.2
• Ethernet: Optional, 802.3, Cat5E/Cat6
• Power Line Communication: 90–110 kHz

Compatibility

• Microinverters: IQ6, IQ7, and IQ8 Series
• IQ System Controller 3/3G (with COMMS-KIT-02)
• IQ Battery 5P (with COMMS-KIT-02)

Warranty

5-year limited warranty

Datasheet

Download IQ Combiner 4/4C Datasheet (PDF)
