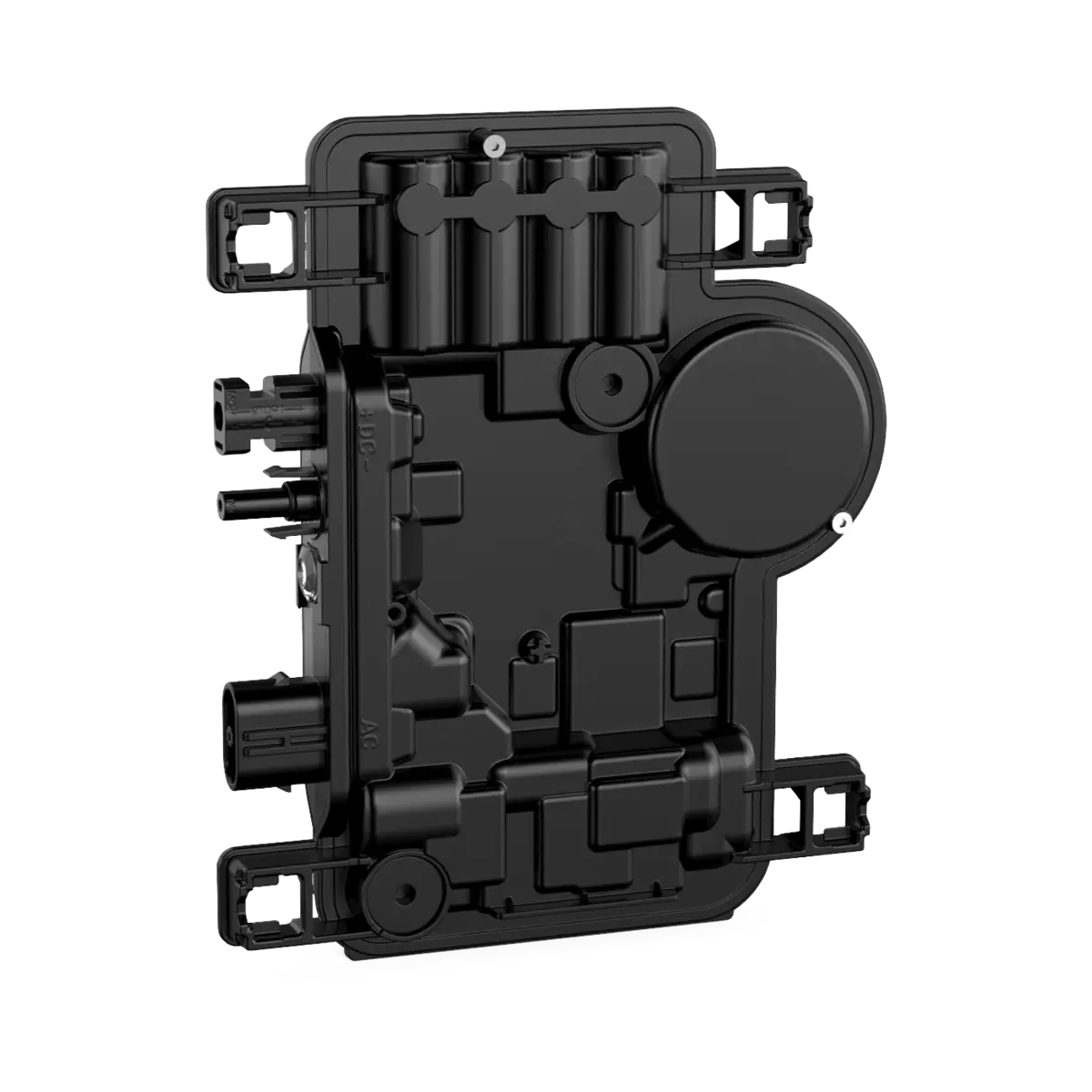

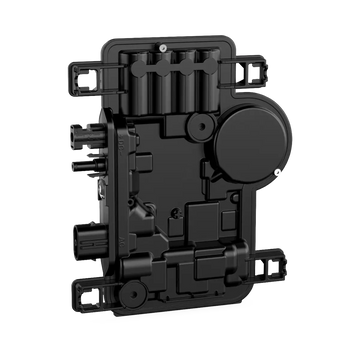

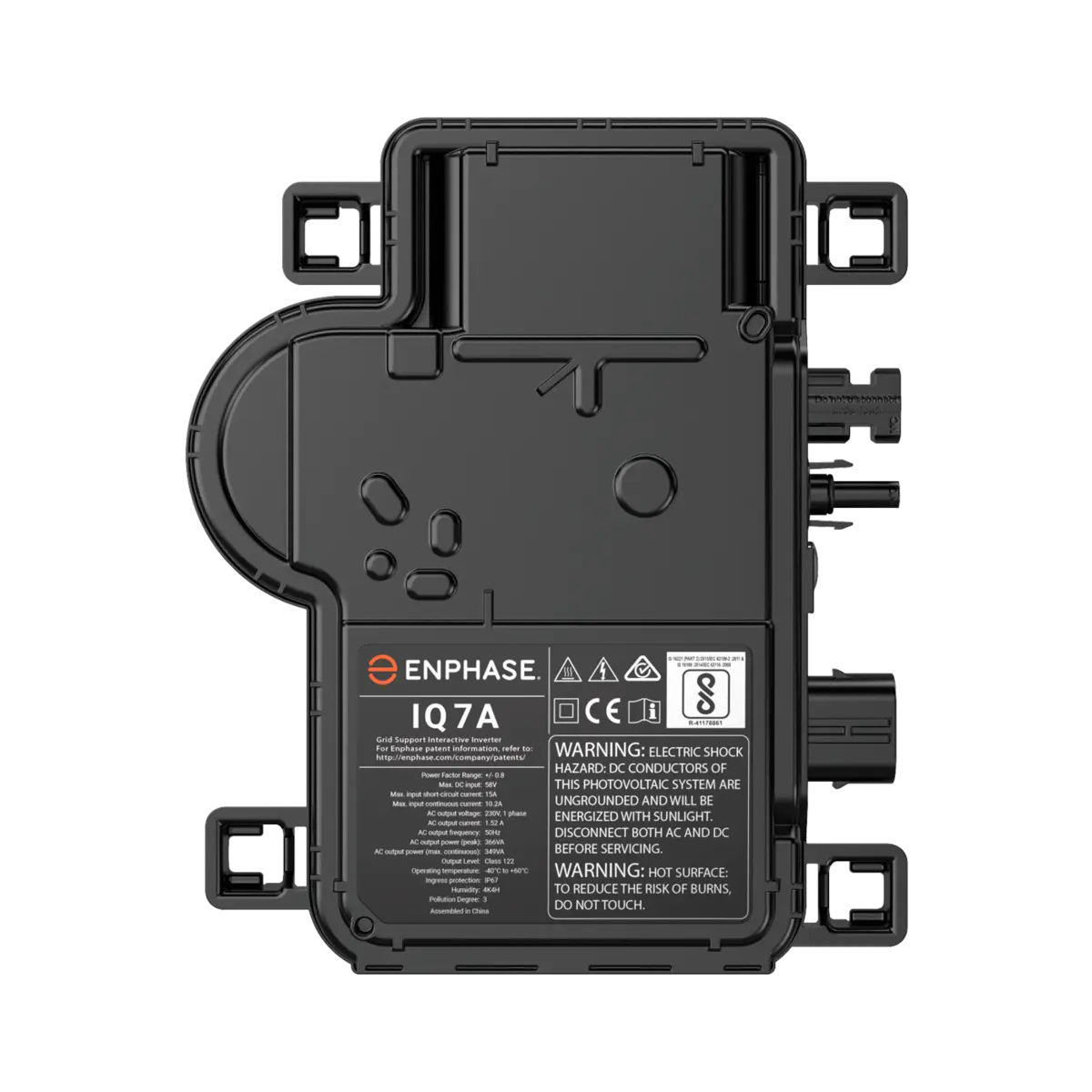

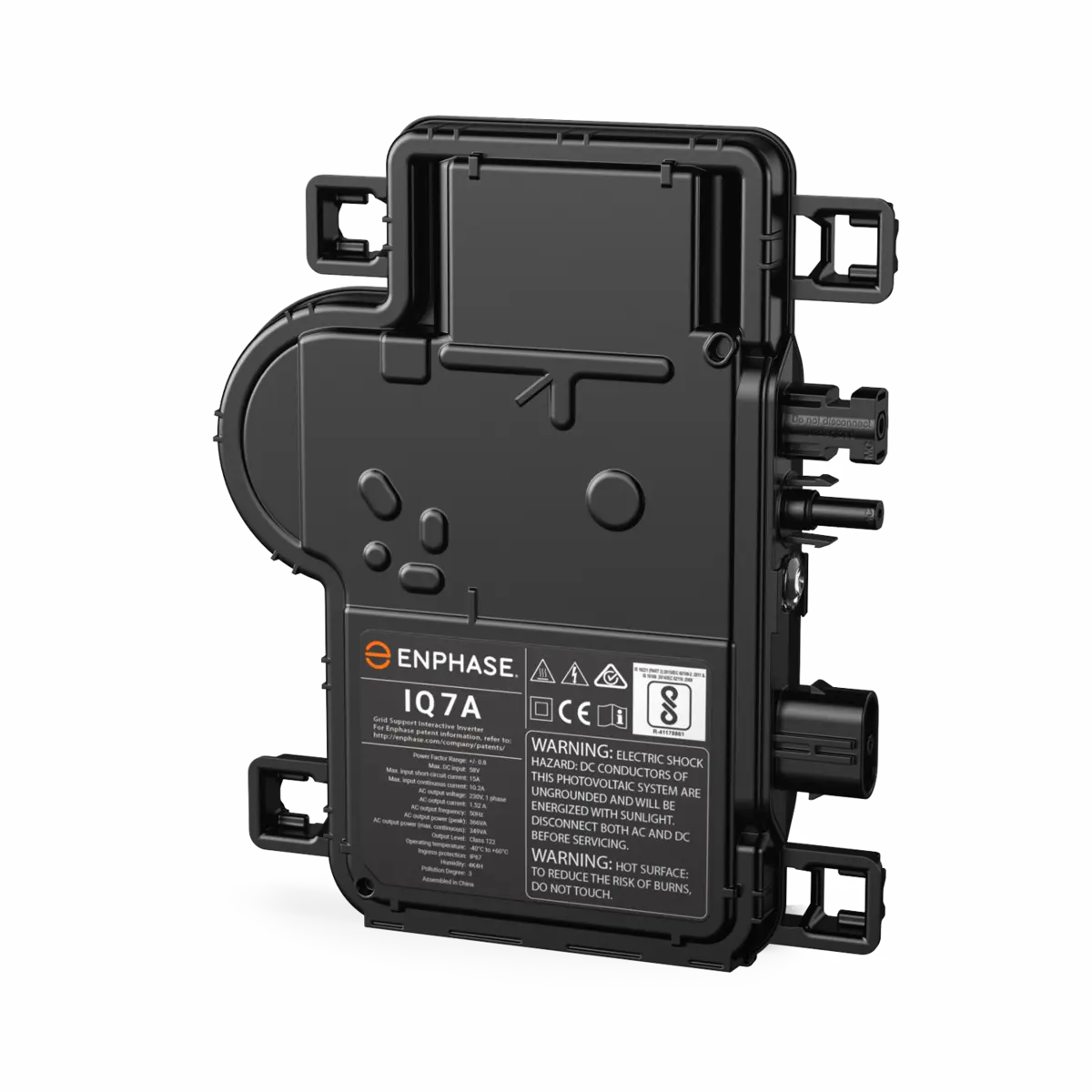

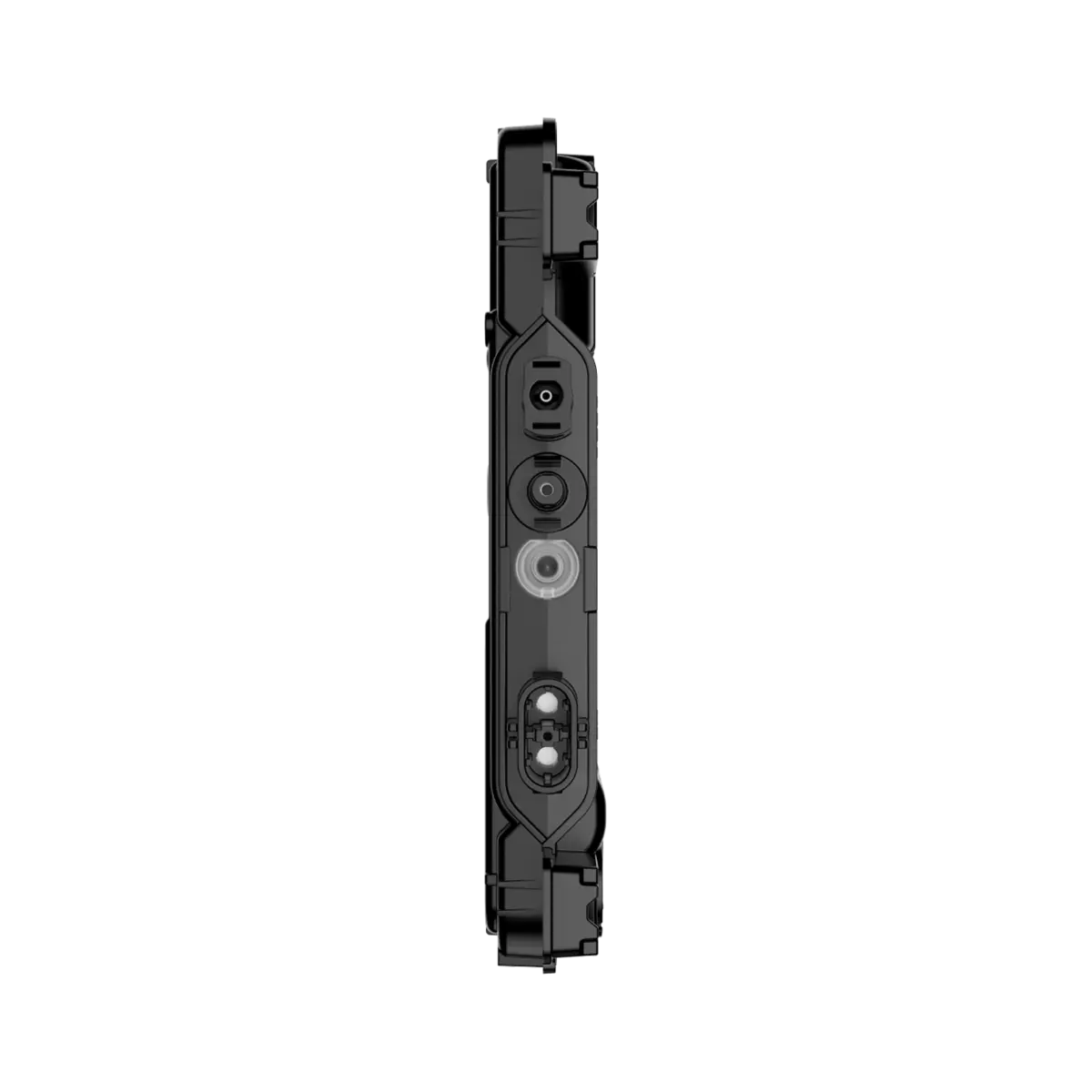

Enphase Energy IQ7A Series 366/295 VA Natural Convection Cooling Microinverter with MC4 Connection

Maximize Your Solar Potential with Enphase Energy Microinverters

The high-powered Enphase IQ7A Microinverter dramatically simplifies the installation process while achieving high system efficiency for systems with 60-cell, 66-cell, and 72-cell modules. Part of the Enphase IQ System, the IQ7A Microinverter integrates with Enphase IQ Battery, the Enphase IQ Gateway, and the Enphase App monitoring and analysis software.

Features

• Faster installation with improved, lighter two-wire cabling
• 97.5% CEC efficiency
• Complies with advanced grid support, voltage and frequency ride through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for varying grid profiles


Specifications

• Series: IQ7A
• Overall Length: 212 mm
• Overall Width: 175 mm
• Overall Depth: 30.2 mm
• Input Voltage: 18-58 Vdc
• Power Rating: 366/295 VA
• Input Current: 25 A
• Amperage Rating: 1.45/1.39 A
• Efficiency: 96.5/97.5%
• Frequency Rating: 60 Hz
• Power Factor: 1
• Cooling Type: Natural Convection
• Temperature Rating: -40 to 65°F
• Output Voltage: 240/211-264 V, 208/183-229 V
• Connection Type: MC4


Documents

• Specification Sheet

Exceptional Performance and Reliability

The Enphase Energy IQ7A Series microinverter is designed to enhance the performance of your solar energy systems. By utilizing cutting-edge natural convection cooling technology, it ensures efficient energy conversion under varying environmental conditions. With a power output of 366/295 VA, this microinverter is suitable for various solar panel configurations, enabling you to generate the most energy possible from your solar installation. Its robust build quality and advanced electronics allow for reliable operation, even in demanding situations, giving you peace of mind regarding your energy supply.

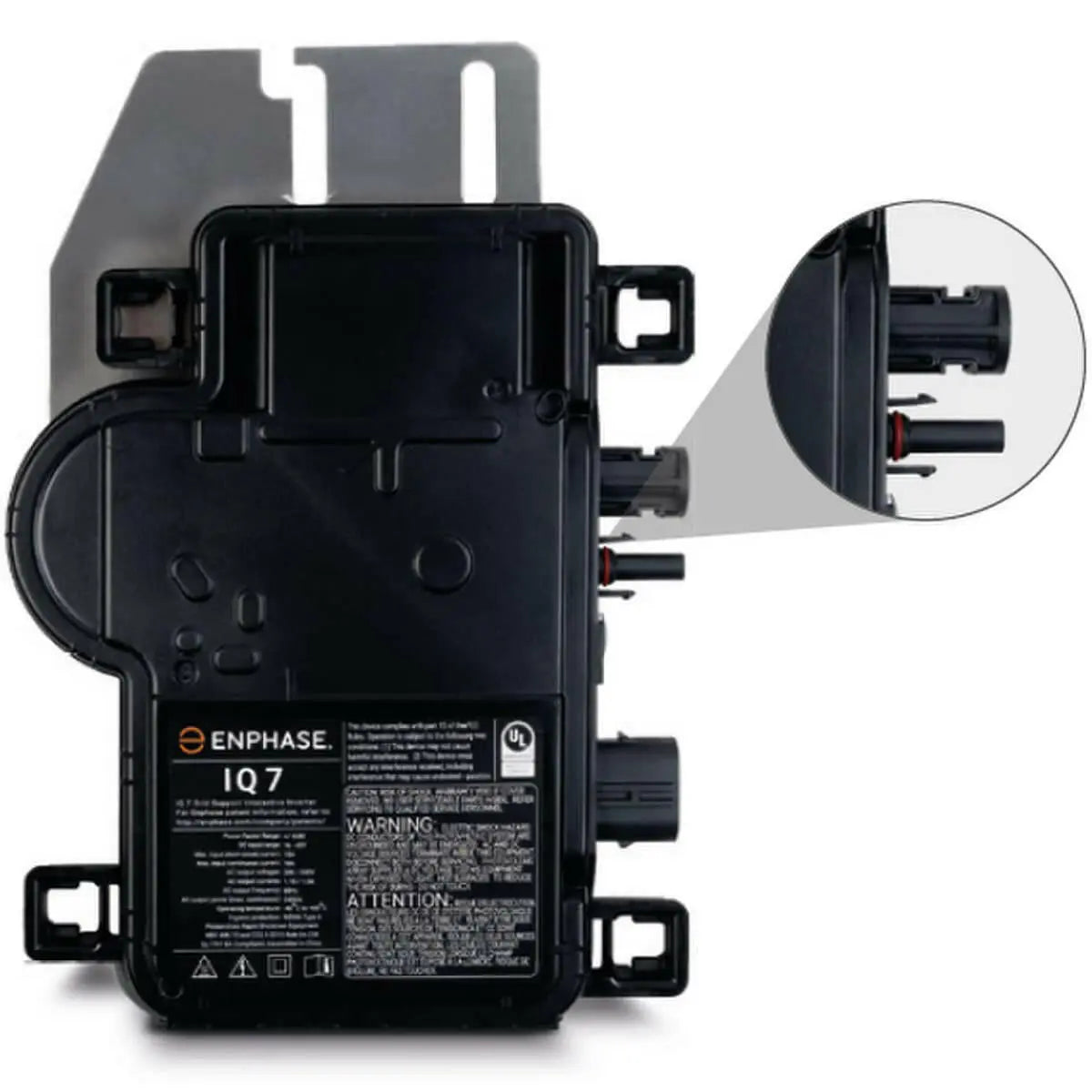

User-Friendly MC4 Connection

Say goodbye to complicated installations with the Enphase Energy IQ7A’s user-friendly MC4 connection. This feature allows for quick and straightforward connections between solar panels and the microinverter, minimizing setup time and reducing the risk of errors during installation. The compatibility with standard connectors makes it easier for installers to integrate the microinverter into existing solar setups. Furthermore, the MC4 connection system enhances electrical efficiency, ensuring that your solar energy is transmitted effectively to your home or grid.

Smart Monitoring for Enhanced Control

The Enphase Energy IQ7A Series includes smart monitoring capabilities that provide real-time data on your solar energy production. This feature allows users to track individual panel performance and optimize energy usage effectively. The Enphase app offers intuitive insights into your system's performance, enabling you to make data-driven decisions about your energy consumption. By equipping your solar system with the IQ7A microinverter, you not only enhance your energy efficiency but also gain full control over your solar energy production and consumption.
