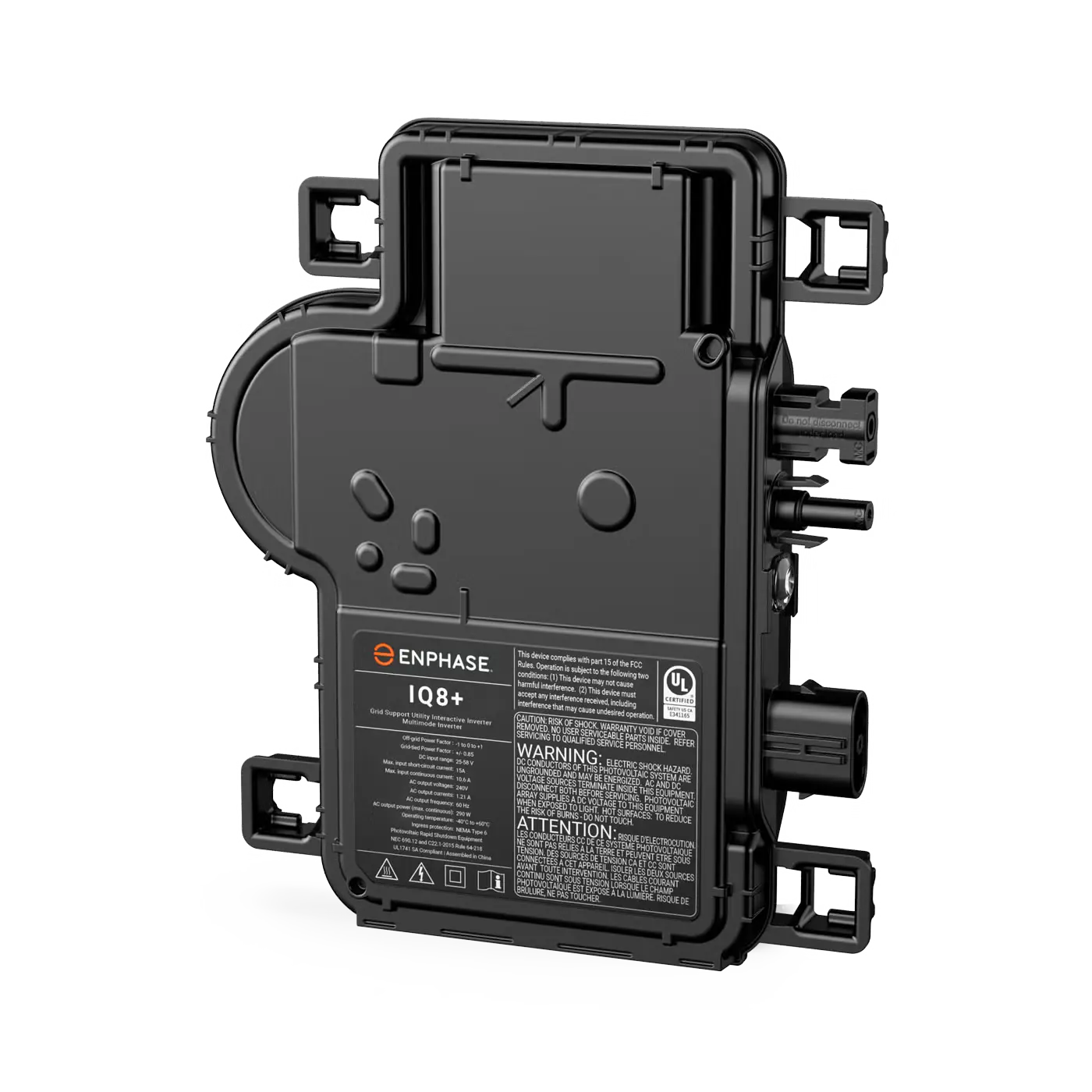

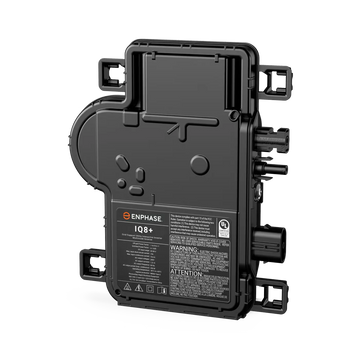

Enphase Energy 235-240 W Microinverter IQ8+ (MC4)

Why Choose the Enphase Energy Microinverter IQ8+?

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               Our newest line of IQ microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is Enphase's proprietary application specific integrated circuit (ASIC); which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high speed digital logic and has super fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems. Part of the Enphase Energy System, the IQ8 series microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software. Connect PV modules quickly and easily to IQ8 Series Microinverters using the included Q-DCC-2 adapter cable with plug-n-play MC4 connectors. IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years. IQ8 Series Microinverters are UL Listed as PV rapid shutdown equipment and conform with various regulations when installed according to the manufacturer's instructions.

Features

• Easy to install - Lightweight and compact with plug-n-play connectors, Power Line Communication (PLC) between components, Faster installation with simple two-wire cabling
• High productivity and reliability - Produce power even when the grid is down, More than one million cumulative hours of testing, Class II double-insulated enclosure, Optimized for the latest high powered PV modules
• Microgrid-forming - Complies with the latest advanced grid support, Remote automatic updates for the latest grid requirements, Configurable to support a wide range of grid profiles, Meets CA Rule 21 (UL 1741-SA) requirements


Specifications

• Width: 8.3 in
• Height: 6.9 in
• Depth: 1.2 in
• Commonly Used Module Pairings: 235-240 W (Input DC)
• Module Compatibility: 60-Cell/120 Half-Cell and 72-Cell/144 Half-Cell (Input DC)
• MPPT Voltage Range: 29-45 V
• Maximum Input DC Voltage: 60 V (Input DC)
• Maximum Input DC Current: 15 A (Input DC)
• Operating Range: 25-58 V (Input DC)
• Minimum/Maximum Start Voltage: 30 V/58 V (Input DC)
• Over Voltage Class DC Port: II (Input DC)
• PV Array Configuration: 1 x 1 Ungrounded Array, No Additional DC Side Protection Required, AC Side Protection Requires Maximum 20 A Per Branch Circuit (Input DC)
• Peak Output Power: 300 VA (Output AC)
• Maximum Continuous Output Power: 290 VA (Output AC)
• Nominal (L-L) Voltage/Range: 240 V/211-264 V
• Maximum Continuous Output Current: 1.21 A at 240 VAC, 1.39 A at 208 VAC (Output AC)
• Nominal Frequency Rating: 60 Hz (Output AC)
• Extended Frequency Range: 50-68 Hz (Output AC)
• Maximum Units Per 20 A (L-L) Branch Circuit: 13 (Output AC)
• Over Voltage Class AC Port: III (Output AC)
• AC Port Backfeed Current: 30 mA (Output AC)
• Power Factor Setting: 1 (Output AC)
• Power Factor (Adjustable): 0.85 Leading to 0.85 Lagging (Output AC)
• CEC Weighted Efficiency: 97.6%
• CEC Efficiency: 97%
• Night Time Power Consumption: 60 mW
• Ambient Temperature Rating: -40 to 60 deg C
• Relative Humidity: 4-100% (Condensing)
• Connector Type DC (IQ7A-72-2-US): MC4
• Cooling: Natural Convection - No Fans
• Approved For Wet Location: Yes
• Acoustic Noise at 1 m: <60 dBA
• Degree of Pollution: PD3
• Enclosure Rating: Class II Double-Insulated, Corrosion Resistant Polymeric Enclosure
• Environmental Category/UV Exposure Rating: NEMA Type 6/Outdoor
• Standards: CA Rule 21 (UL 1741-SA), UL 62109-1, UL1741/IEEE1547, FCC Part 15 cETLus Listed B, ICES-0003 cETLus Listed B, CAN/CSA-C22.2 NO. 107.1-01, UL Listed as PV Rapid Shut Down Equipment, NEC 2014, NEC 2017, NEC 2020 section 690.12, C22.1-2018 Rule 64-218
• Warranty: 25 Years
• Weight: 2.38 lb

Documents

• Specification Sheet
• Installation Manual
• Warranty Information

Unmatched Efficiency with Enphase Energy

The Enphase Energy 235-240 W Microinverter IQ8+ is designed to maximize the efficiency of your solar energy system. Leveraging advanced technology, this microinverter converts sunlight into usable electricity with remarkable precision. Enphase's unique architecture ensures that each solar panel operates independently, enhancing overall system performance. This microinverter also supports higher energy production even in low-light conditions. By choosing Enphase, you're opting for a solution that not only enhances the efficiency of each solar panel but also contributes to lower electricity costs, making it a smart choice for environmentally-conscious homeowners and businesses alike.

Easy Installation and Integration

Installing the Enphase Energy IQ8+ Microinverter is straightforward, allowing for a seamless integration into your existing solar power system. Its compact design and lightweight structure simplify the installation process, enabling installers to fit them on various types of solar panels effortlessly. The Enphase Energy system supports rapid connectivity and provides exceptional transparency during the installation phase. As a result, whether you're a seasoned professional or a DIY enthusiast, you will find the IQ8+ highly user-friendly, significantly reducing installation time while maintaining high standards of safety and reliability.

Robust Monitoring and Performance Tracking

One of the standout features of the Enphase Energy Microinverter IQ8+ is its integrated monitoring capabilities. Users can enjoy real-time insights into their solar energy production via the Enphase Enlighten app. This advanced app provides detailed performance metrics, allowing for easy tracking of energy generation patterns and system health. By utilizing Enphase's performance analytics, users can identify potential issues proactively, ensuring optimal operation of their solar systems. With such robust monitoring tools at your fingertips, you can stay informed and make educated decisions about your energy consumption, ultimately enhancing your energy independence.
