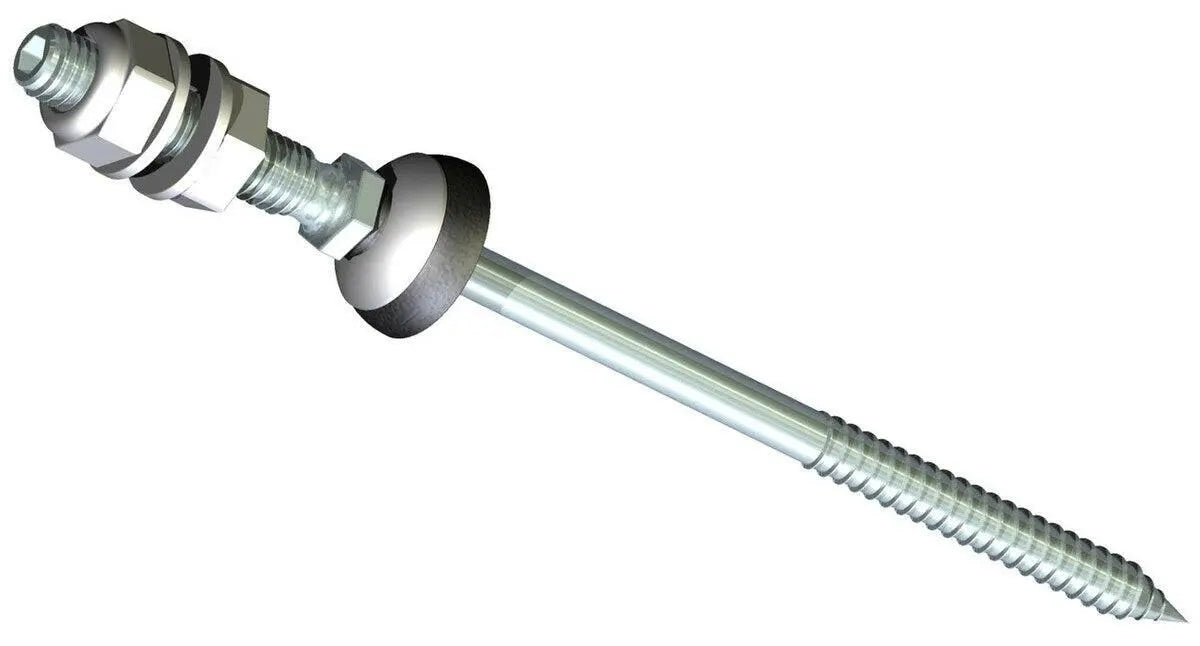

EJOT 6660108006 Stainless Steel Hanger Bolt

EJOT offers JZ3 stainless steel solar fasteners. Engineered for easy and rapid anchoring into metal substructures, the fastener forms its own female thread providing a tolerance-free connection in substructures of US steel gauge 16 or thicker (≥1.5 mm). Available with standard sealing element FZD. The JZ3's specialized stainless steel thread design gives maximum fastening performance in steel substructures. It can be used with a wall thickness from about 1.5 mm (0.059 in/16 ga (USG).

Features

• Internal SW5 hex drive used to drive the fastener through the roof panel into the substructure
• Adapter plates or L-feet for fastening the rail or racking system are mounted and secured by M10 lock nuts and washers
• FZD sealing washer below the precision-defined depth control stop
• JOT JZ3 self-taping screw 5/16 in (8 mm) x L


Specifications

• Diameter: 8 mm
• Thread Size: M10 x 50
• Length: 80 mm
• Wall Thickness: 1.5 mm
• Material: Stainless Steel
• Suitable For Use With: Wood
• Standards: UL Listed
