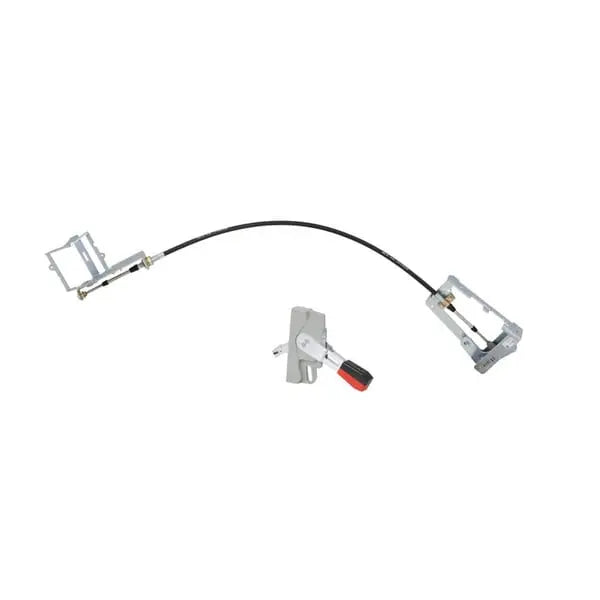

EHMFS03 - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

Eaton Molded Case Circuit Breaker Accessory Handle Mechanism is a flex shaft flange-mounted handle mechanism designed for Eg-frame circuit breakers. Compatible with Frame J-K, this mechanism is part of Eaton’s Series C and is designed for NEMA 4/4X enclosures. With a length of 3 feet, it offers high performance and flexibility, ensuring efficient operation and control in demanding environments.

Key Features:

• Handle Type: Flex Shaft Flange-Mounted
• Frame Compatibility: Eg-Frame, Frame J-K
• Series: Series C
• Length: 3 FT
• Enclosure Compatibility: NEMA 4/4X

This Eaton handle mechanism is built to provide reliable and durable operation for molded case circuit breakers in industrial and commercial settings.
