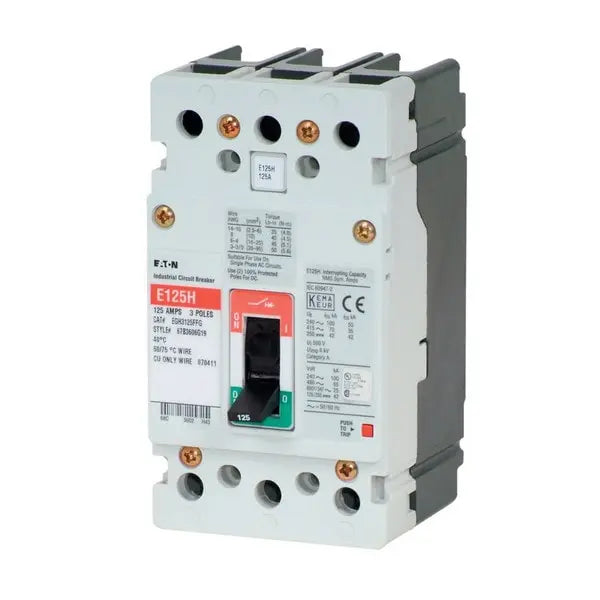

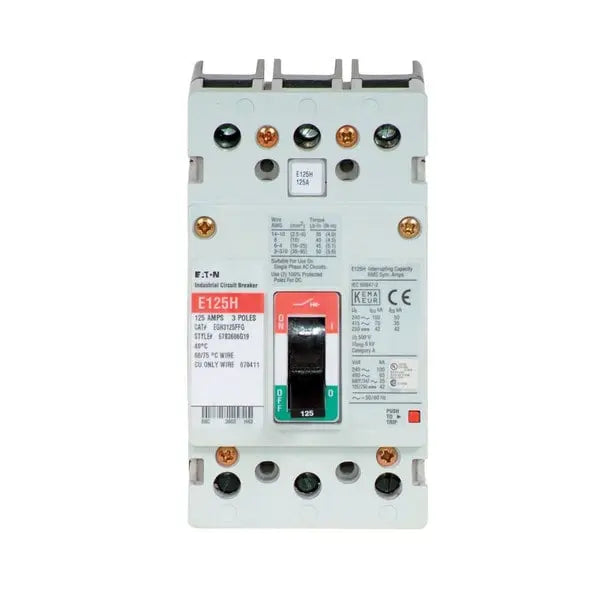

EGH3125FFG - Eaton Series G Molded Case Circuit Breaker

Eaton Series G Molded Case Circuit Breaker is a high-performance solution for protecting electrical circuits in industrial and commercial applications. With its fixed thermal and fixed magnetic trip settings, this three-pole breaker ensures reliable operation and safeguards systems from overloads and short circuits. Rated for 125 A, it offers excellent interrupting ratings, making it suitable for environments with high-capacity loads. Its compatibility with multiple voltages, including 600Y/347 Vac and 480 Vac, ensures versatility in various electrical configurations.

Key Features:

• Rated for 125 A, providing robust circuit protection
• Fixed thermal and magnetic trip for reliable and consistent performance
• Three-pole configuration for enhanced circuit protection
• High interrupting ratings: 100 Kaic at 240 Vac, 65 Kaic at 480 Vac, and 35 Kaic at 600Y/347 Vac
• Suitable for line and load configurations, with operation at 50/60 Hz

The Eaton Series G Molded Case Circuit Breaker offers dependable electrical protection, ensuring safety and reliability in high-demand environments.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Tap Rules to Molded Case Breaker Terminals

Brochures
High performance operating handles for Series G circuit breakers product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Specifications and datasheets
MOEM MCCB product selection guide
