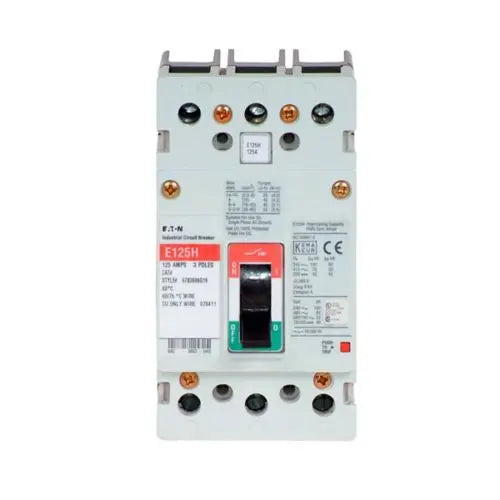

EGH3060FFG - Eaton Series G Molded Case Circuit Breaker

Eaton Series G Molded Case Circuit Breaker is designed to provide exceptional protection for electrical circuits in demanding applications. With a fixed thermal and fixed magnetic trip, this three-pole breaker is built to handle high current loads and safeguard systems from overloads and short circuits. Rated for 60 A, it offers impressive interrupting ratings, making it suitable for high-capacity environments. Its versatility extends to multiple voltages, including 600Y/347 Vac, 480 Vac, and 240 Vac, ensuring reliable protection across various configurations.

Key Features:

• Rated for 60 A, offering strong protection for electrical circuits
• Fixed thermal and magnetic trip for consistent performance and reliability
• Three-pole configuration for comprehensive circuit protection
• High interrupting ratings: 100 Kaic at 240 Vac, 65 Kaic at 480 Vac, and 35 Kaic at 600Y/347 Vac
• Suitable for line and load configurations, with operation at 50/60 Hz

The Eaton Series G Molded Case Circuit Breaker provides secure and efficient protection, ensuring safety for electrical systems under high-capacity loads.

Documents:

Application notes
Application of Tap Rules to Molded Case Breaker Terminals
Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Brochures
Motor protection circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Specifications and datasheets
MOEM MCCB product selection guide
