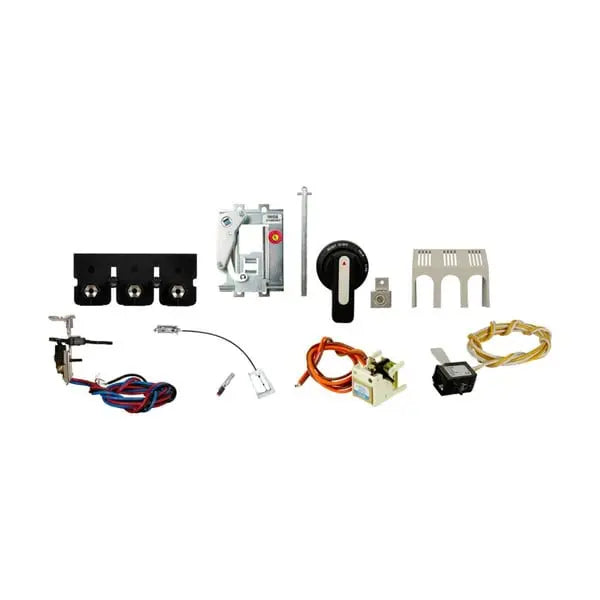

EGFS02HPX - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

The Eaton High Performance Flex Shaft Flange-Mounted Handle Mechanism is designed for reliable remote operation of molded case circuit breakers in demanding environments. Built to accommodate EG-Frame and J-K Frame breakers from Eaton’s Series G, this robust mechanism features a 2-foot flexible shaft, allowing versatile mounting configurations. With a NEMA 4/4X rating, it is ideal for harsh industrial and outdoor settings, offering both protection and durability.

Key Features:

• Compatible with EG-Frame and J-K Frame circuit breakers
• Flange-mounted design with a 2-foot flexible shaft
• Rated NEMA 4/4X for use in harsh or outdoor environments
• Part of Eaton’s high-performance Series G accessories
• Provides safe, remote operation of circuit breakers

This handle mechanism delivers a combination of safety, flexibility, and high performance for industrial control panels and power distribution systems.
