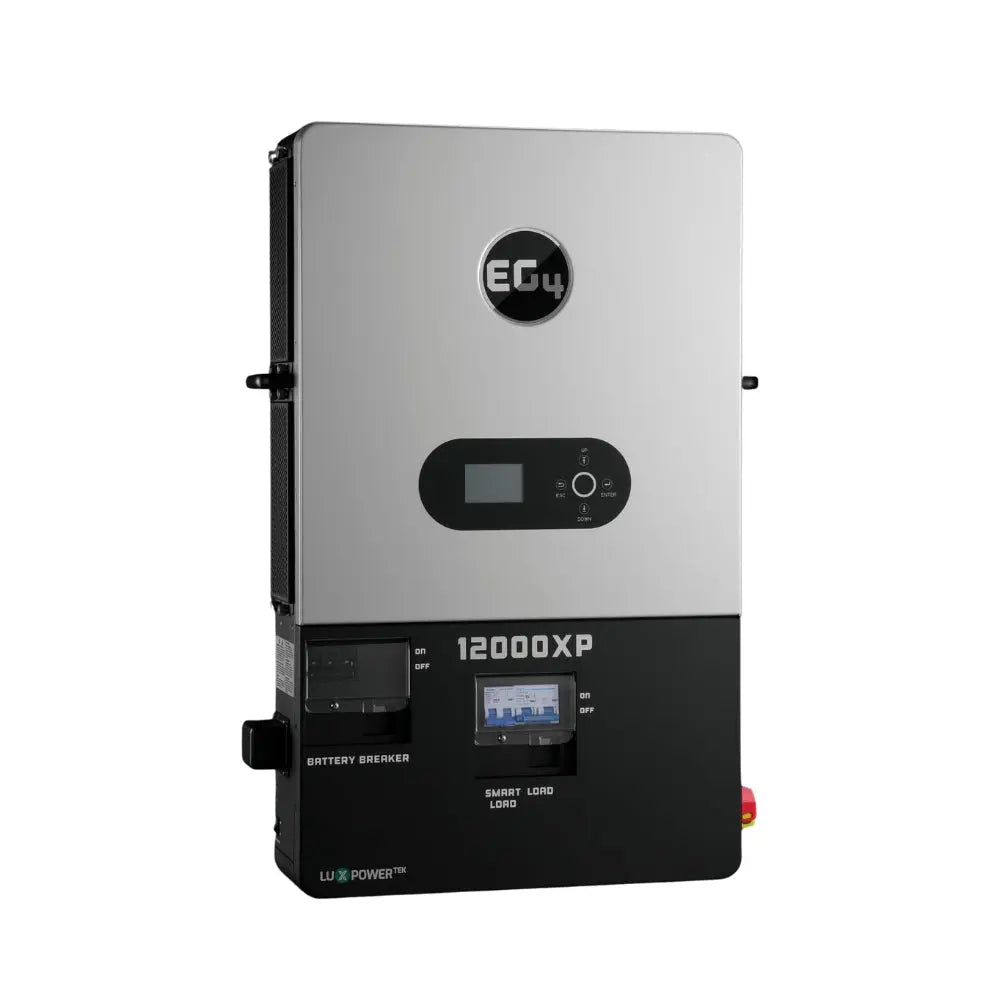

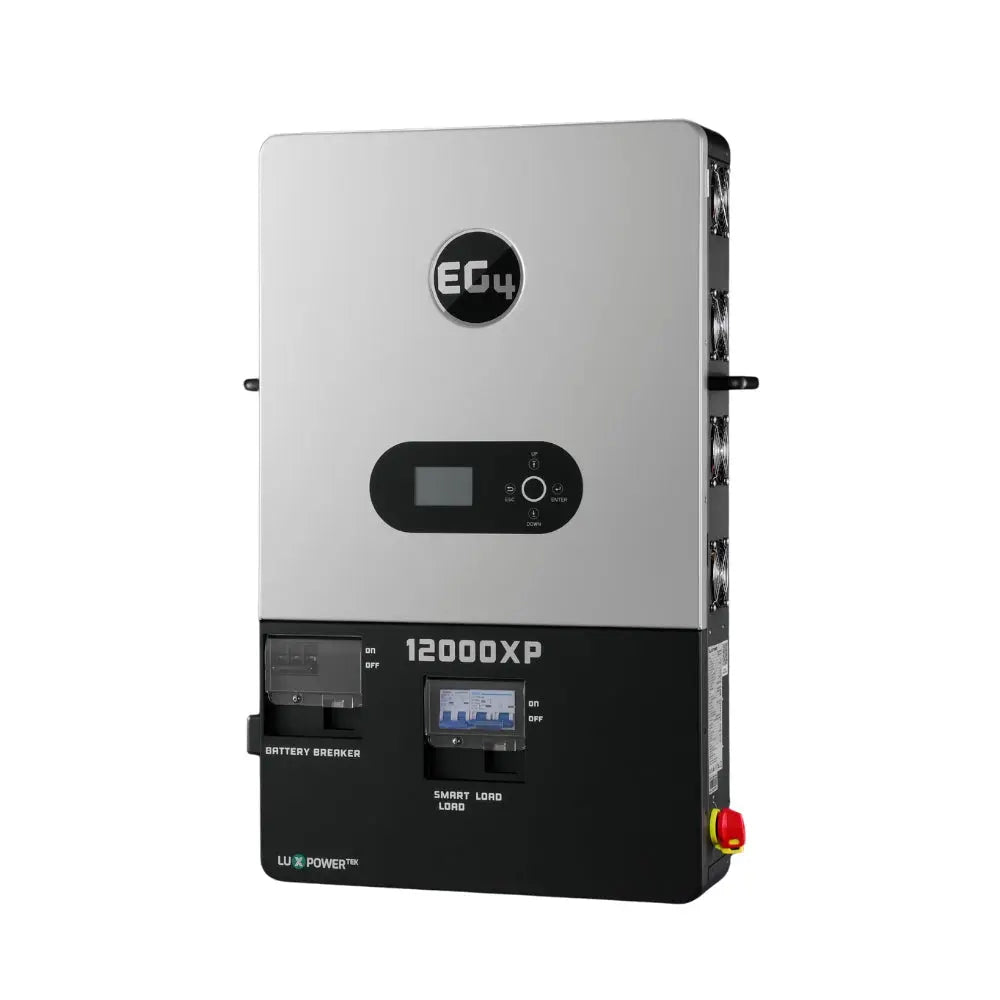

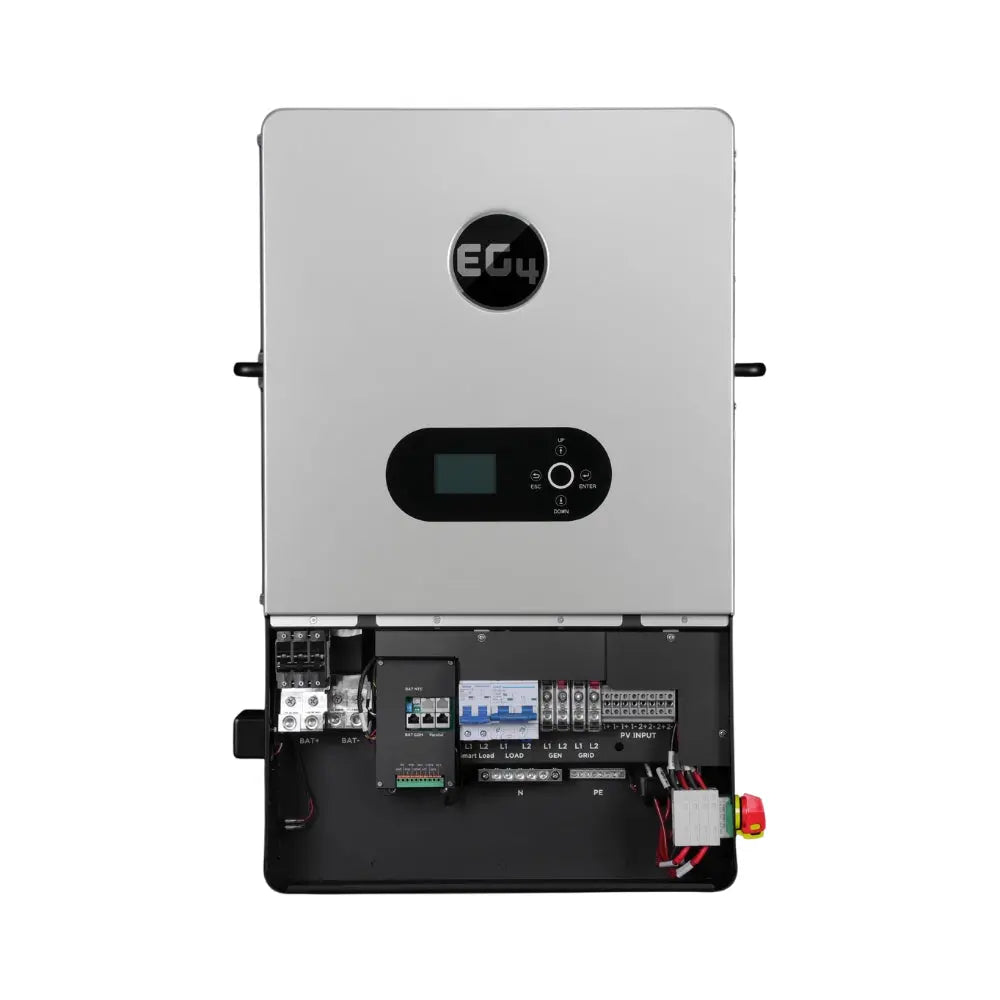

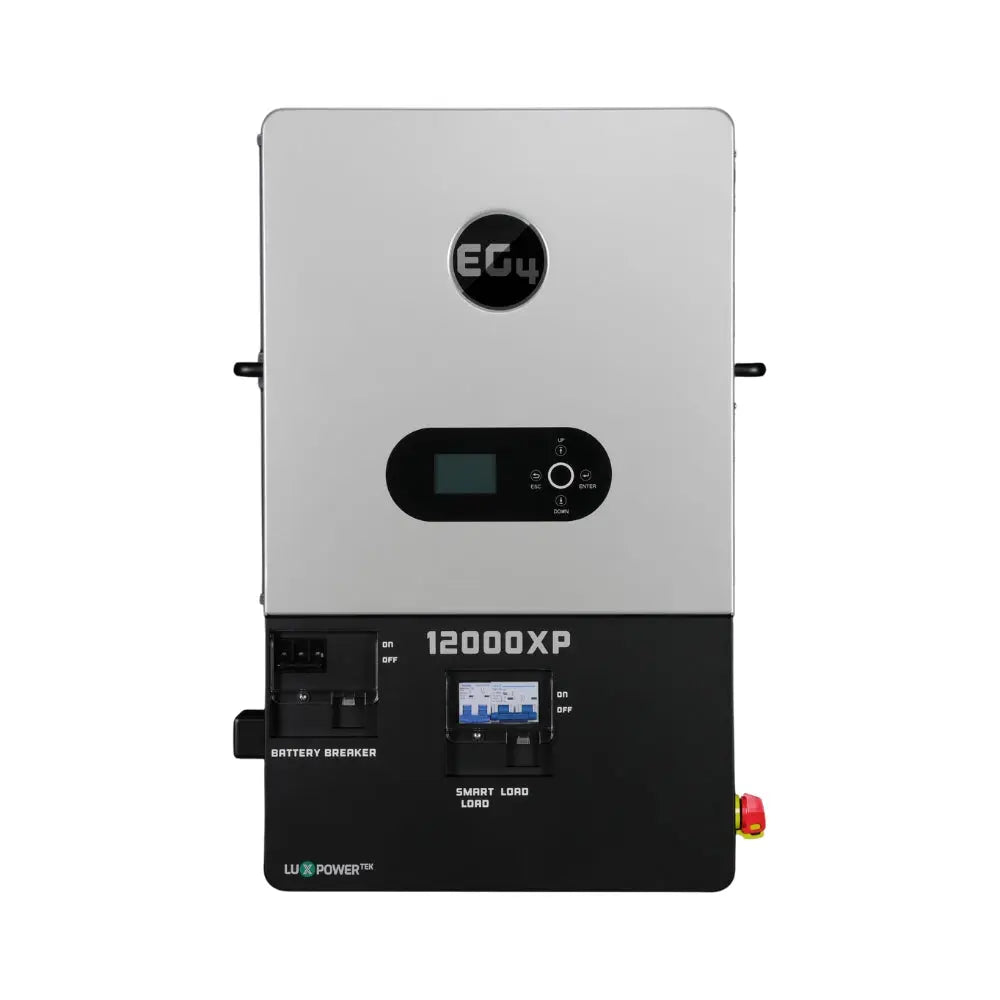

EG4 12000XP Off-Grid Inverter

The EG4 12000XP is a high-performance, all-in-one off-grid inverter/charger built for demanding residential and light commercial solar systems. With split-phase 120/240 V output, robust PV support, and advanced protection & control features, it enables reliable power for homes, cabins, and remote installations.

Key Features & Highlights

• 12 kW continuous AC output with surge capacity up to 18 kW (5 seconds)

• 48 V DC input, supports up to 24 kW PV input through dual MPPTs

• Split-phase 120/240 VAC output, suitable for common residential loads

• MPPT configuration: 2 MPPT channels, each supporting 2 input strings; max input current ~35 A per MPPT

• Parallel expansion capable — supports multiple units to scale output

• Grid charge & generator support for hybrid usage

• Extensive protection & control: over/under voltage, temperature, short-circuit, reverse polarity, etc.

• Compact and robust build: optimized for field installation and durability

Typical Specifications

Why Choose It?

• Delivers strong performance, with ample headroom for heavy loads like air conditioners, tools, or appliances.

• Flexible input architecture lets you scale solar array size or combine multiple units for larger installations.

• Integrated charging & protections simplify system design and increase reliability.

• Ideal for off-grid homes, cabins, remote sites, or backup power where grid connection is unavailable or unreliable.

Document: Specification Sheet
