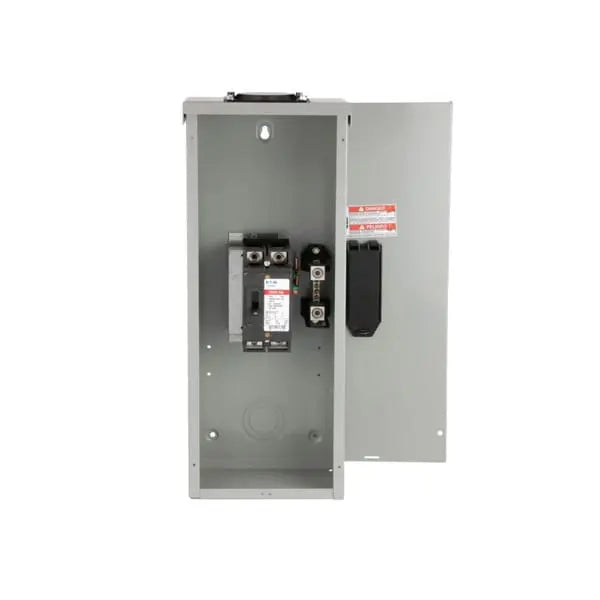

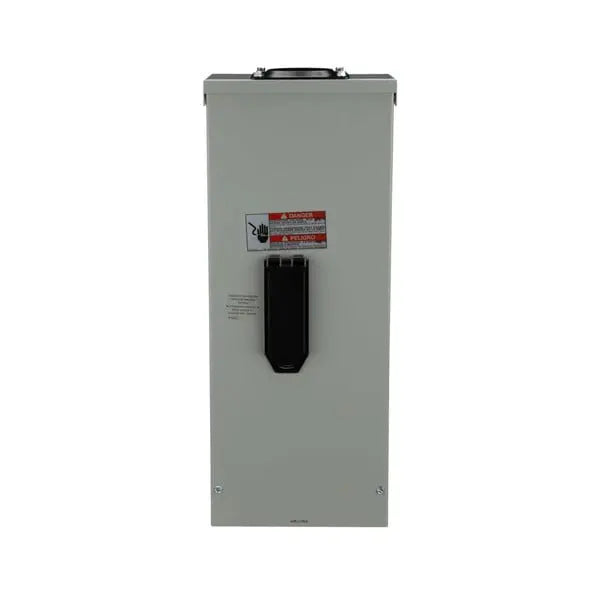

ECCVH150R - Enclosed Circuit Breaker

The Enclosed Circuit Breaker, 150 A, is designed to provide reliable overcurrent protection for electrical systems. This breaker features a 150 A current rating and a 25 kA interrupt rating, ensuring safety during fault conditions. It is part of the ECC Series and is designed for use with a 240 V AC voltage rating. The breaker has a wire terminal connection type, making it suitable for a variety of wiring setups. With a compact and durable design, it offers a depth of 5.44 inches (138.1 mm), a height of 23.68 inches (601.7 mm), and a width of 9.31 inches (236.5 mm).

Key Features:

• Amperage Rating: 150 A
• Voltage Rating: 240 V AC
• Interrupt Rating: 25 kA
• Mounting Type: Enclosed
• Terminal Type: Wire Terminal
• Depth: 5.44 in (138.1 mm)
• Height: 23.68 in (601.7 mm)
• Width: 9.31 in (236.5 mm)
• Series: ECC Series
• UL Listed for safety and performance

This enclosed circuit breaker is a vital component for ensuring electrical safety in commercial and industrial applications, offering protection against overcurrent and short circuits.

Documents:

Brochures
Eaton Emergency Disconnect Options at a Glance
